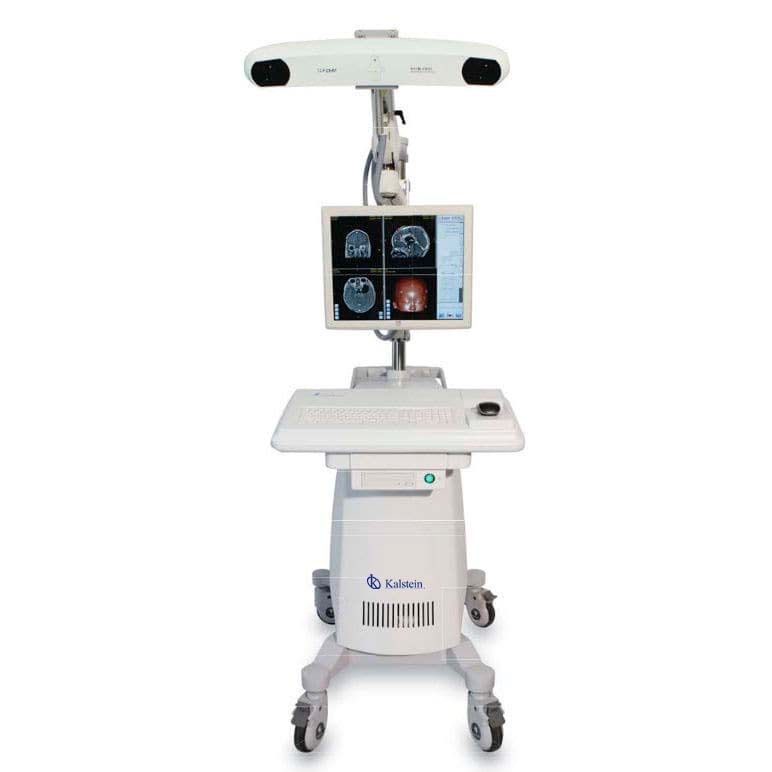

Surgical Navigation Systems YR02143

Manufacturer: Kalstein

Manufacturer: Kalstein

Product Description

YR02143 is an innovative computer-aided electromagnetic surgical navigation system, widely used for surgical visualization, planning and navigation to help minimize iatrogenic trauma to surrounding brain tissue and reduce the risk of surgical complications in cranial procedures (such as cranial neurology and ENT surgery).

  • Tomographic images in DICOM and captured with CT / C-arm / MRI / fMRI are applicable in the YR02143 surgical navigation system.
  • Advanced optical tracking system tracks real-time 3D position and orientation of active or passive markers attached to surgical tools, to provide exceptional precision (1.0mm spatial resolution) and reliability.
  •  The method of 3D modeling and simulation of anatomical structures in material (such as skin, skull, brain tissue, or target lesion) can be easily defined for surgical convenience.
  •  With the integrated navigation probe and advanced optical measurement technology, the surgeon can easily quantify the size and position of lesions, and then scientifically design the surgical approach.
  •  The system provides operators with four navigation modes for comprehensive monitoring of the navigation process.
  •  Intelligent software will help calibrate and compensate for unexpected changes in anatomical structure and brain change induced by removal of the intracranial lesion area.
  • The YR02143 navigation system can be operated with a surgeon mouse or touch monitor mounted on the mobile cart or on the ceiling suspension arm.

The system automatically saves all patient image data and registration information, allowing the surgeon to quickly load and continue surgical navigation against unexpected power outages.

App

The YR02143 Optical Surgical Navigation System can be used for all ENT and neurological surgeries, especially deep intracranial lesions, intracranial low volume lesions, minimally invasive edge intracranial lesions, and minimally invasive surgeries.

Model YR02143
Component Amount Description
Optical tracking system
NDI tracking system 1 set Track 3D position and orientation of active or passive markers attached to surgical tools
Image management workstation
Computer system 1 set For 2D image fusion and 3D reconstruction, navigation system
Touch monitor 1 piece 19 *, 1280 x 1024 resolution, medical and healthcare grade
Software package 1 set Core set (image fusion, surgical planning and navigation, data management)
Software version 1 1 piece Diffusion-tensor-images navigation module
Software version 2 1 piece Needle-Aspiration-Biospy navigation module
Mobile car
Support trolley with 4 wheels 1 piece To support the optical tracking system and image management workstation
Surgical tools
Navigation probe 2 pieces To help the optical measurement system track movement
Microscope probe 1 piece To help the optical measurement system track movement
Active marker 6 pieces To help quickly recognize critical anatomical structures.
Passive reflective sphere 10 pieces To reflect the infrared laser for cameras (in the optical tracking system) to capture
Framework 2 pieces To locate passive reflective sphere with 4 pins
Articulated arm 1 piece To hold the frame of reference
Clamp adapter 2 pieces For the adaptation of another instrument (such as the brain needle during navigation)
Foot-swicht 1 piece To help register and navigate
Touchmonitor specification
Case / bezel color Beige Mini VGA D-sub 15-pin; DVI-D Mini VGA D-sub 15-pin; DVI-D
Display
Sixe: 19.0 ”diagonal, active matrix TFT Horizontal: 31.5-80 kHz Horizontal: 31.5-80 kHz
Aspect ratio: 5; 4 Vertical: 56.3-75 Hz Vertical: 56.3-75 Hz
Useful display area
Horizontal: 14.82 “(376.32 mm) Type: 100-240 VAC, 50-60 Hz Type: 100-240 VAC, 50-60 Hz
Vertical: 11.85 “(301.06 mm) Internal DC input power supply Internal DC input power supply
Monitor dimensions
Width: 429mm (16.9 “) DC input voltage (line): 12V 3.6V DC input voltage (line): 12V 3.6V
Height (including stand): 15.21 “(386 mm) 48 W max. 48 W max.
Depth (inc. Base) Operating; 0 ° C to 40 ° C Operating; 0 ° C to 40 ° C
Native resolution (optional) 1280 x 1024 @ 60/70/75 Hz Storage: -20 ° C to 60 ° C Storage: -20 ° C to 60 ° C
Other supported resolutions 1280 x 960 / 1,024 x 768 in Hz Operating: 20% -80% Operating: 20% -80%
Colors 16.7 million Storage: 10% -90% Storage: 10% -90%
Brightness
LCD panel: 300 cd / m2 Actual: 17.66 lbs. (8 kg) Actual: 17.66 lbs. (8 kg)
With AccuTouch: 246 cd / m2 Shipping: 25.10 lbs (11.84) Shipping: 25.10 lbs (11.84)
With IntellTouch: 276 cd / m2 3 years 3 years
Response time 20 msec (typical) Typical 40,000 hours at half brightness Typical 40,000 hours at half brightness
Vision angle Horizontal (left / right): 89 ° / 89 ° MTBF; 50,000 hours demonstrated MTBF; 50,000 hours demonstrated
(Typical, from the center) Vertical (up / down): 89 ° / 89 ° UL, Cul, fcc, ic, ce, China RoHS, Argentina S mark UL, Cul, fcc, ic, ce, China RoHS, Argentina S mark
Contrast ratio 1300: 1 (typical) Two watt / channel speakers located in the display head Two watt / channel speakers located in the display head
Input video format Analog: (no video card needed) OSD locks for user and power controls OSD locks for user and power controls
Input sync format
Separate horizontal and vertical OSD extras include volume, treble, bass, balance OSD extras include volume, treble, bass, balance
Synchronization, compound synchronization and OSD Language (English, Chinese, Spanish, French) OSD Language (English, Chinese, Spanish, French)
Synchronization in green Safety lock receptacle Safety lock receptacle

Additional Information

Weight 150 kg
Dimensions 70 × 90 × 191 cm
