Description

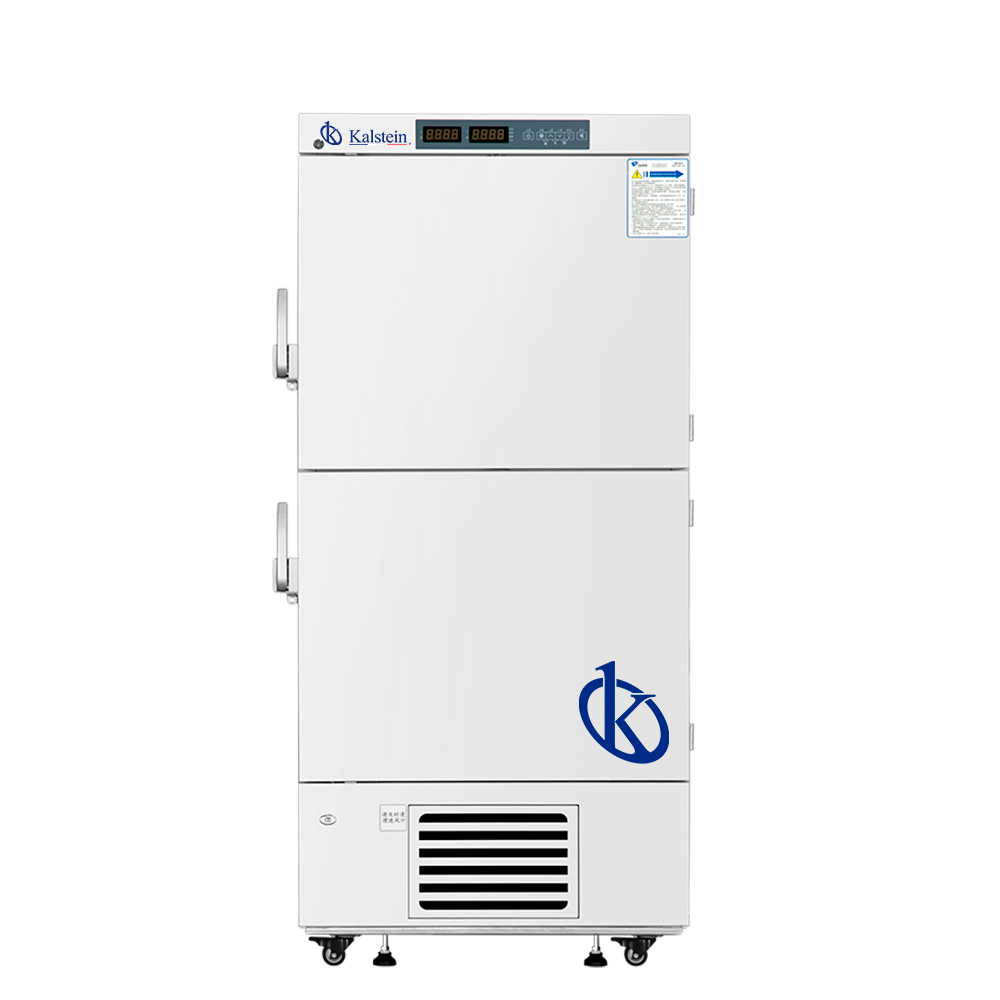

Medical Laboratory freezer -10℃ ~-25℃ with vaccume release hole for lab use
Key Features
- Two temperature control systems with double door construction.
- Flexible and easy storage by height-adjustable shelf trays
- Maintains the quality of the samples during preservation
- 2 completely independent chambers with their own temperature displays
Safety Design
- To securely preserve/manage the valuable samples, in addition to a standard-feature door lock, a hole in the latch allows a padlock to be attached.
- Security functions that help protect valuable samples with a temperature control capability that inhibits the change in temperature inside the chamber, and an alarm/security function that prevents errors, the unit maintains the quality of the preserved samples. Temperature recorder (optional)
- Front-mounted display/control panel located at convenient height for easy access
- Insulated door with gasket for sample protection and uniformity
Warranty
- 1 year free spare parts and remote technical support.
Special
- Top and bottom chambers are equipped with 2 independent refrigeration circuits
- The separate top and bottom doors suppress cold air leakage for easy opening.
Performance | Refrigeration System | ||
Cooling method | Direct cooling | Compressor brand/QTY | CHINA/2 |
Defrost | Manual | Condenser | Copper tube |
Refrigerant | R290 | Temperature controller | Microprocessor |
Temperature range | -10~-25℃ | Sensor | NTC |
Ambient temperature | 10~32℃ | Display | Digital display |
Electrical Data | Dimensions | ||
Voltage frequency( V/Hz) | 220/50Hz | Capacity(L/cu.ft) | 528/18.64 |
Power(W) | 260W | Exterior size(W*D*H)(mm) | 910*845*1875 |
Current(A) | 1.9 A | Interior size(W*D*H)(mm) | (651*631.5*635)*2 |
Alarms | Other | ||
High/low temperature | Y | Inside door | 9 Drawer×2 |
Power failure | Y | Test hole QTY/diameter | 2/25MM |
Sensor error | Y | Remote alarm port | Y |
Temperature controller failure | Y | Castor | Y |
