Description

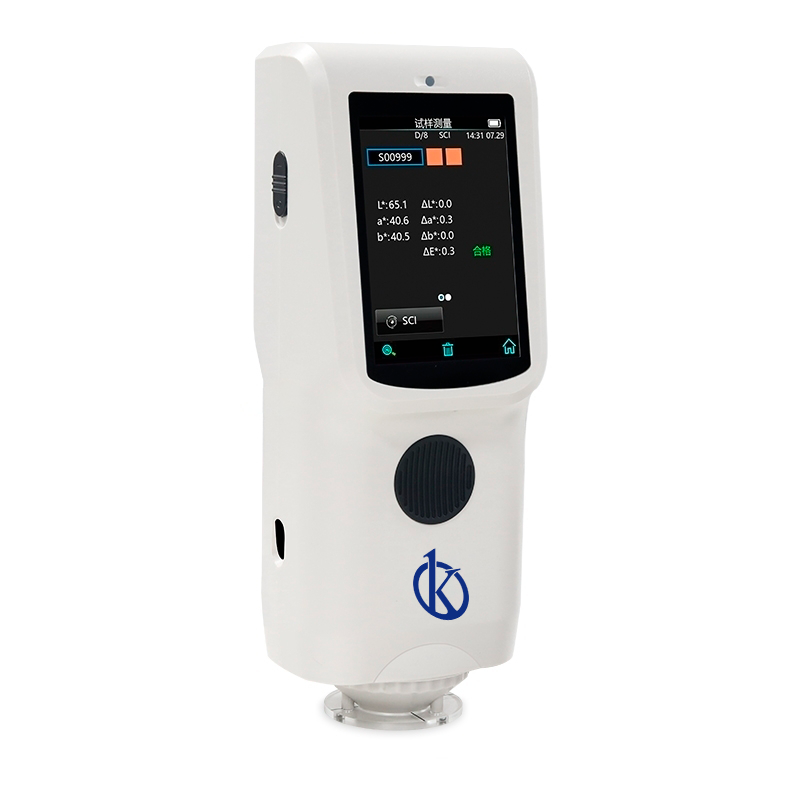

The Spectrocolorimeter YR05516 – YR05517 represents the pinnacle of color measurement technology, featuring an advanced spectral architecture. Designed for portability and precision, this device ensures long-term accuracy in measuring color differences across various industries. Leveraging a built-in silicon photodiode array sensor, it controls repetitive ΔE*ab within 0.1, facilitating quick and efficient color difference assessments without needing a computer connection. Its versatile application spans sectors like plastics, electronics, paint, textiles, and ceramics, ensuring quality control and precision in production. With dual and single aperture options, the YR05516 and YR05517 models cater to industry-specific requirements, making them indispensable tools for professionals demanding reliable and accurate color data.
Market Price
The Spectrocolorimeter market features varying prices depending on specifications and features. For products similar to the Spectrocolorimeter YR05516 – YR05517, market prices typically range from $3800 to $4600 USD. To get an exact quote, we encourage you to request a personalized price via our Kalstein Plus platform.
Frequently Asked Questions
1. What industries benefit from using the Spectrocolorimeter YR05516 – YR05517?
The device is suited for the plastics, electronics, paint, textile, printing, and ceramics industries, providing precise color measurement and quality control.
2. How often does the device need calibration?

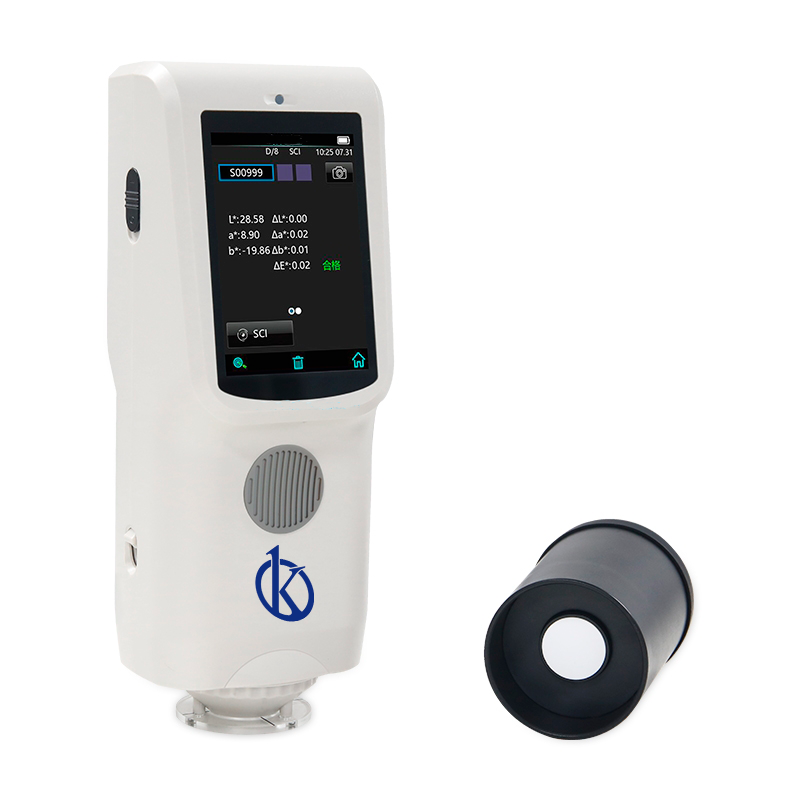

The device includes white and black calibration cavities for routine checks, ensuring ongoing accuracy.
Advantages and Disadvantages
Advantages:
- High precision with ΔE*ab within 0.1.
- Portable and easy to use without needing computer connections.
- Applicable across diverse industries, offering versatile use.
- Extended battery life and efficient operation with longstanding durability.
Disadvantages:
- Initial setup may require time for understanding the software intricacies.
- Higher initial investment compared to simpler color measurement tools.
Field Usage

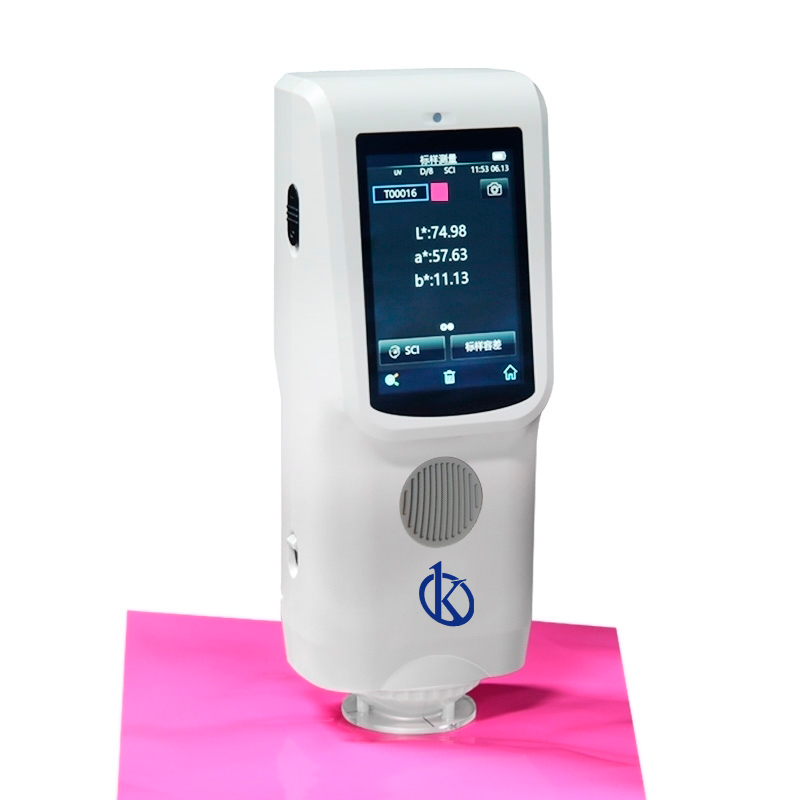

The Spectrocolorimeter YR05516 – YR05517 excels in both laboratory and field settings. Its portability allows professionals to conduct accurate color measurements on-site, directly impacting quality control processes. Industries dealing with plastics, textiles, and ceramics find it especially useful for maintaining consistent color standards during production and processing.
Recommendations
For optimal use, regularly clean the measurement apertures to prevent dust interference. Perform frequent calibrations as required by your specific industry guidelines to maintain precision. Utilize the data storage features to track and analyze long-term color data for improved quality control decisions.
Features
- Φ8 mm diameter measurement with 10° observer angle.
- Full-spectrum LED light source with plane grating.
- Silicon photodiode array with high repeatability.
- Long battery life with over 3 million operations in five years.
- Storage capacity for 500 data samples and 10,000 comparisons.
Technical Specifications
| Model | YR05516 | YR05517 |
| Optical Geometry | D/8(diffused illumination, | D/8(diffused illumination, |
| 8-degree viewing angle) | 8-degree viewing angle) | |
| SCI/SCE Mode | SCI/SCE Mode | |
| Comply to CIE No.15，GB/T | Comply to CIE No.15，GB/T 3978,GB 2893,GB/T 18833,ISO7724-1,ASTM E1164,DIN5033 Teil7 | |
| 3978,GB 2893,GB/T | ||
| 18833,ISO7724-1,ASTM E1164,DIN5033 Teil7 | ||
| Characteristic | double apertures, more adaptability; Used for accurate | single apertures, more adaptability; Used for accurate color measurement and quality control in plastic electronics, paint and ink, textile and garment printing and dyeing, printing, ceramics and other industries |
| color measurement and quality control in plastic electronics, | ||
| paint and ink, textile and garment printing and dyeing, printing, | ||
| ceramics and other industries | ||
| Integrating Sphere Size | Φ40mm | Φ40mm |
| Light Source | Combined full spectrum LED light source, UV light source | Combined full spectrum LED light source, UV light source |
| Spectrophotometric Mode | Flat Grating | Flat Grating |
| Senso | Silicon photodiode array (double row 32 groups) | Silicon photodiode array (double row 32 groups) |
| Wavelength Range | 400～700nm | 400～700nm |
| Wavelength Interval | 10nm | 10nm |
| Semiband Width | 10nm | 10nm |
| Measured Reflectance Range | L:0~120; reflectivity:0~200% | L:0~120; reflectivity:0~200% |
| Measuring Aperture | Dual Apertures：MAV:Φ8mm/Φ10mm;SAV:Φ4mm/Φ5mm | Single Apertures：Φ8mm/Φ10mm |
| Specular Component | SCI/SCE | SCI/SCE |
| Color Space | CIE LAB,XYZ,Yxy,LCh,CIE LUV,s-RGB,βxy,DIN Lab9,DIN | CIE LAB,XYZ,Yxy,LCh,s-RGB,βxy,Munsell(C/2) |
| Lab99 Munsell(C/2) | ||
| Color Difference Formula | ΔE*ab,ΔE*uv,ΔE*94,ΔE*cmc(2:1),
ΔE*cmc(1:1),ΔE*00, DINΔE99 |
ΔE*ab,ΔE*94,ΔE*cmc(2:1),ΔE*cmc(1:1),ΔE*00, DINΔE99 |
| Other Colorimetric Index | WI(ASTM E313,CIE/ISO,AATCC,Hunter)， | WI(ASTM E313,CIE/ISO,AATCC,Hunter)， |
| YI(ASTM D1925,ASTM 313), | YI(ASTM D1925,ASTM 313), | |
| Metamerism Index MI, | Metamerism Index MI, | |
| Staining Fastness, Color Fastness, Color Strength, | Staining Fastness, Color Fastness, Color Strength, Opacity,Color Card Search | |
| Opacity,Color Card Search | ||
| Observer Angle | 2°/10° | 2°/10° |
| Illuminant | D65,A,C,D50,D55,D75,F1,F2(CWF),
F3,F4,F5,F6,F7(DLF), |
D65,A,C,D50,F2(CWF),
F7(DLF),F10 |
| F8,F9,F10(TPL5),F11(TL84),
F12(TL83/U30) |
(TPL5),F11(TL84),F12
(TL83/U30) |
|
| Displayed Data | Spectrogram/Values, Samples
Chromaticity Values, Color Difference Values/Graph, PASS/FAIL Result, Color Simulation, Color Offset |
Spectrogram/Values, Samples
Chromaticity Values, Color Difference Values/Graph, PASS/FAIL Result, Color Simulation, Color Offset |
| Displayed Accuracy | 0.01 | 0.01 |
| Measuring Time | About 1.5s (Measure SCI & SCE about 3.2s) | About 1.5s (Measure SCI & SCE about 3.2s) |
| Repeatability | Chromaticity value: MAV/SCI, within ΔE*ab 0.05 ( When a white calibration plate is measured 30 times at 5 second intervals after white calibration) | Chromaticity value: MAV/SCI, within ΔE*ab 0.06 ( When a white calibration plate is measured 30 times at 5 second intervals after white calibration) |
| Inter-instrument Error | MAV/SCI, Within ΔE*ab 0.3 | MAV/SCI, Within ΔE*ab 0.3 |
| (Average for 12 BCRA Series II color tiles) | (Average for 12 BCRA Series II color tiles) | |
| Measurement Mode | Single Measurement, Average
Measurement(2-99times) |
Single Measurement, Average Measurement(2-99times) |

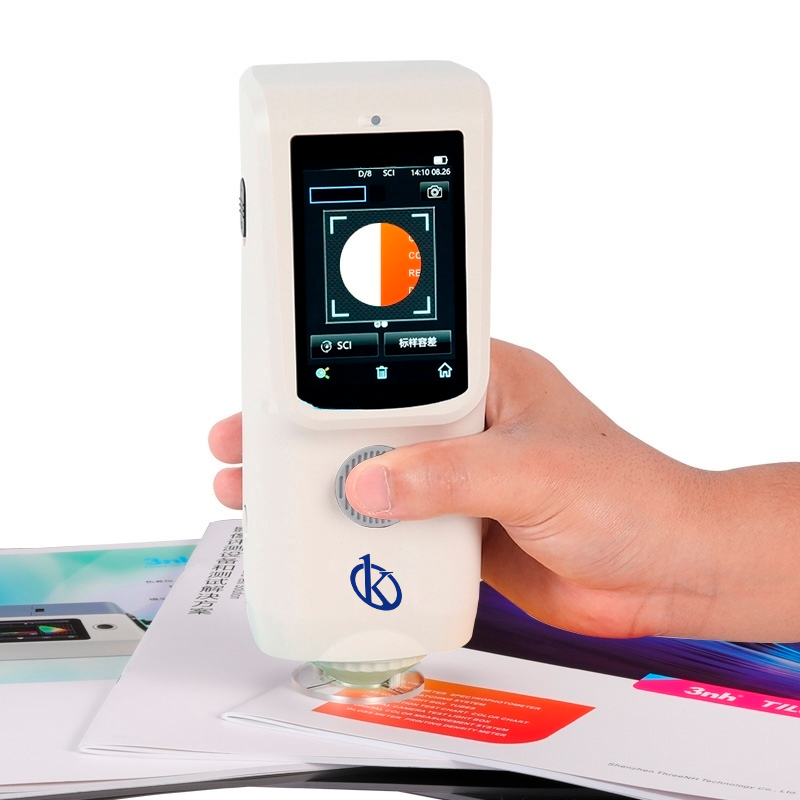

| Locating Method | Camera Locating,stabilizer cross position | Camera Locating,stabilizer cross position |
| Dimension | L*W*H=81X71X214mm | L*W*H=81X71X214mm |
| Weight | About 460g | About 460g |
| Battery | Li-ion battery, 6000 measurements
within 8 |
Li-ion battery, 6000 measurements within 8 hours |
| hours | ||
| Illuminant Life Span | 5 years, more than 3 million times | 5 years, more than 3 million times measurements |
| measurements | ||
| Display | 3.5-inch TFT color LCD, Capacitive Touch S | 3.5-inch TFT color LCD, Capacitive Touch Screen |
| creen | ||

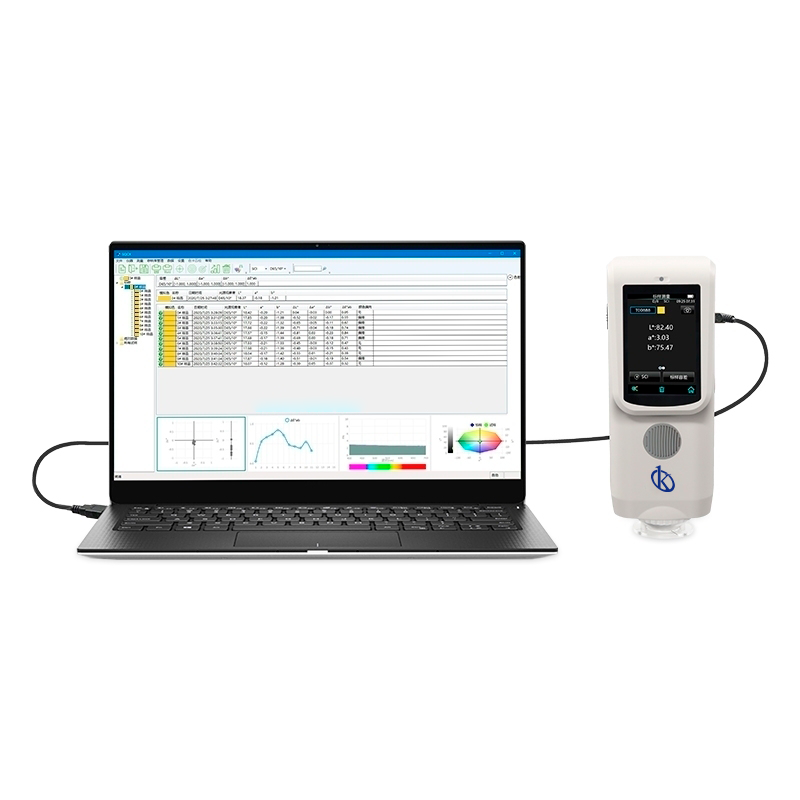

| Data Port | USB,Bluetooth 5.0 | USB |
| Data Storage | Standard 1000 Pcs, Sample 30000
Pcs(One |
Standard 1000 Pcs, Sample 20000 Pcs(One data is able to include SCI/SCE) |
| data is able to include SCI/SCE) | ||
| Language | Simplified Chinese, English, Traditional Chinese | Simplified Chinese, English, Traditional Chinese |
| Operating Environment | 0~40℃, 0~85%RH (no condensing), Altitude | 0~40℃, 0~85%RH (no condensing), Altitude < 2000m |
| < 2000m | ||
| Storage Environment | -20~50℃, 0~85%RH (no condensing) | -20~50℃, 0~85%RH (no condensing) |

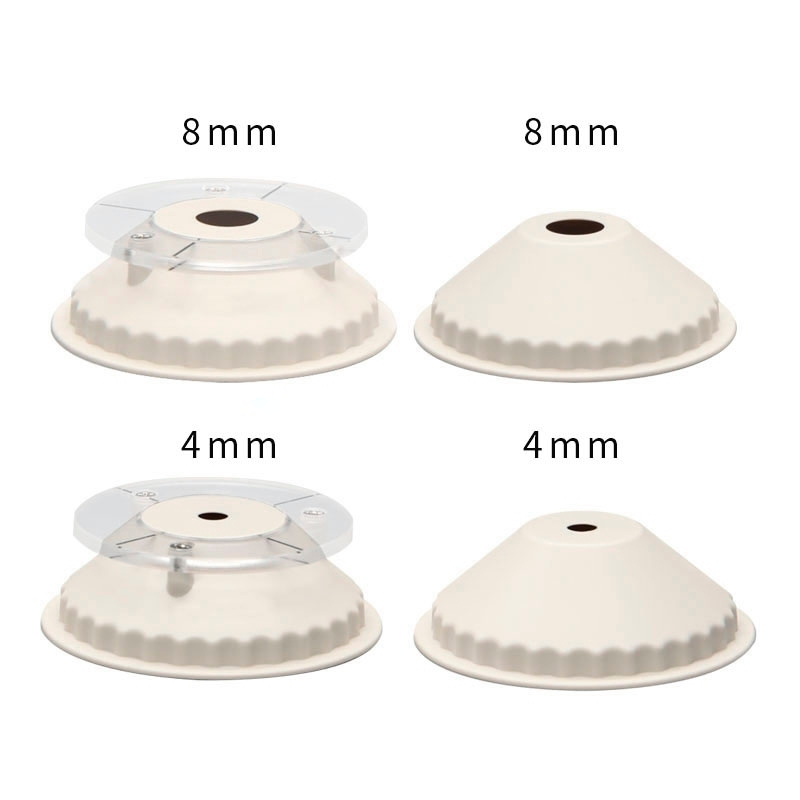

| Standard Accessory | Power Adapter, USB Cable, User Guide, SQCX Software(Download from office website), White and Black Calibration Cavity, Protective Cover, Wrist strap, 8mm flat aperture, 8mm tip aperture, 4mm flat aperture, 4mm tip aperture | Power Adapter, USB Cable, User Guide, SQCX Software(Download from office website), White and Black Calibration Cavity, Protective Cover, Wrist strap, 8mm flat aperture, 8mm tip aperture |
| Optional Accessory | USB Micro Printer, Powder Test
Box,Bluetooth Micro Printer |
USB Micro Printer, Powder Test Box, |
| Notes | Technical parameters are only for
reference, subject to the actual sale of the product |
Technical parameters are
only for reference, subject to the actual sale of the product |
