Small Sample Viscometer YR05865

ManufacturerKalstein

Description

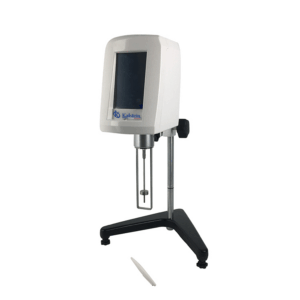

The Small Sample Viscometer YR05865 is a cutting-edge digital rotary viscometer designed for precision and efficiency. Equipped with a coaxial cylinder structure and a small sample adapter, this viscometer requires only 7ml-13ml per measurement, making it ideal for evaluating precious and rare samples. The optional constant temperature water jacket enhances measurement accuracy by controlling the sample temperature, ensuring reliable results every time. This device features a digital display for easy data interpretation and timing measurement functionality for streamlined operations, making it a top choice in scientific laboratories worldwide.

Market Price

The Small Sample Viscometer YR05865 is competitively priced within the market range. For similar devices, prices typically vary from $2300 USD to $3100 USD, positioning this viscometer as an excellent investment for laboratories seeking accuracy and efficiency without comprising their budget. To get an exact quote, we recommend using the Kalstein Plus platform for automated cost estimations.

Frequently Asked Questions

What is the required sample size for this viscometer?
The viscometer requires between 7ml and 13ml of the sample, depending on the rotor used, allowing for minimal usage of valuable materials.

Can this device connect to a computer for data analysis?
Yes, it features two RS232 interfaces that allow direct connection to a computer and micro printer for seamless data logging and analysis.

Advantages and Disadvantages

Advantages: Precise measurements with minimal sample requirements, digital display for easy reading, optional temperature control for enhanced precision.

Disadvantages: Requires careful handling of rotor attachments, and the initial investment may be higher than basic models, but worthwhile for advanced measurements.

Product Use in the Field

In practical settings, the Small Sample Viscometer YR05865 is frequently used in chemical labs, pharmaceutical research, and material science to measure the viscosity of different liquids accurately. Its ability to utilize small sample sizes is particularly beneficial when working with rare or expensive liquids, ensuring thorough analysis without excess consumption of resources.

Recommendations

To maximize the lifespan and accuracy of your Small Sample Viscometer YR05865, consider regularly calibrating the device and maintaining a clean working environment. Utilize the constant temperature water jacket for samples that require strict temperature control, and always handle the rotor attachments with care to prevent damage.

Features

  • Timing measurement function
  • Coaxial cylinder structure
  • Using a spindle rotor, the sample size required for testing is very small
  • Two RS232 interfaces with direct connection to micro printer and computer

Technical Specification

Model YR05865
Display mode Digital Display
Speed (r/min) 0.3/0.6/1.5/3/6/10/12/15/20/25/30/40/50/60/70/80/90/100
Total 18
Rotor 18#,25#,31#,34# (standard configuration)
Measuring Range 3-1.6M (mPa﹒s)
Sample Size 18# rotor:3 –10K; 7ml
25# rotor:480 –1.6M; 9ml
31# rotor:30 –100K; 10.5ml
34# rotor:60 –200K; 11ml
Measurement Error ±3% (Newtonian liquid)
Repetitive Error ±1.5% (Newtonian liquid)
Output Interface Two RS232 interfaces to connect printer and computer
Temperature Probe Interface Standard Configuration
Outline Dimension 300 × 300 × 450(mm)

Additional information

Weight 8 kg
Dimensions 45 × 35 × 49 cm
