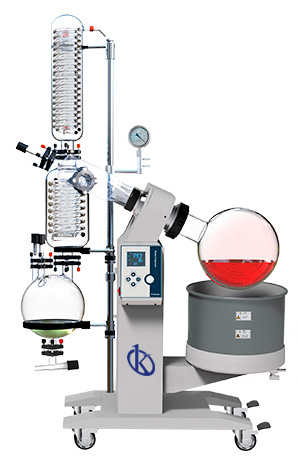

Rotary Evaporator YR02307 // YR02310
Manufacturer: Kalstein
Product Description
Large capacity and large opening of evaporating flask give larger evaporation surface. The evaporating flask keeps rotating when it is constantly heated by water bath, and solvent evaporates more efficiently under vacuum condition. It can be used for pilot-scale production in biology engineering, pharmaceutical industry, chemical industry and food processing. It usually works with water circulating vacuum pump, diaphragm vacuum pump, recirculating chiller, constant-temperature circulator, low temperature circulating pump, etc.
Advantages
- Patented technology of double sealing of Teflon(PTFE) and FV rubber ensures the negative pressure level.
- Automatic switch valve makes continuous collection possible without affecting vacuum degree and without stopping distillation.
- Teflon discharge valve is corrosion resistant and contamination free.
- Water bath jacket protecting operator from scalding by hot liquid.
| Model | YR02307 | YR02308 | YR02309 | YR02310 | |||||
| Evaporating flask | 5L, flange opening: Φ50mm | 10L, flange opening: Φ125mm | 20L, flange opening: Φ125mm | 50L, flange opening: Φ125mm | |||||
| Receiving flask(L) | 3 | 5 | 10 | 20 | |||||
| Speed-regulation | DC stepless speed-regulation | ||||||||
| Power supply | 220V-240V, 50/60Hz | 3~, 380V, 50Hz | |||||||
| Overall power(kW) | 2.3 | 3.8 | 6.3 | 6.3 | |||||
| Rotation speed (rpm) | 20~140 | 20~130 | 20~130 | 20~110 | |||||
| Power of motor(w) | 250 | 250 | 250 | 250 | |||||
| Condenser | Vertical type double coil pipe | Vertical type, Main + auxiliary triple-circulating cold traps | |||||||
| Bath material | Stainless steel 304 | ||||||||
| Temperature range | RT~99℃ | ||||||||
| Temperature display | Digital display | ||||||||
| Sealing | 20mbar/h | ||||||||
|
Evaporating Speed (L/h)
|
Water | 2.0 | 3.2 | 5.0 | 9.0 | ||||
| Ethanol | 5.4 | 8.6 | 14.3 | 24.5 | |||||
| Lifting function | Motorized Lift | Motorized lift + Manual lift | |||||||
| Elevating stroke(mm) | 0~150 | 0~160 | 0~190 | 0~180 | |||||
| Dimensions(mm) | 835W×400D×1090H | 990W×550D×1655H | 1195W×635D×2070H | 1345W×770D×2140H | |||||
| Net Weight(kg) | 60 | 85 | 115 | 200 | |||||
Additional Information
| Weight | N/A |
|---|---|
| Dimensions | N/A |
| Model | YR02307, YR02308, YR02309, YR02310 |
