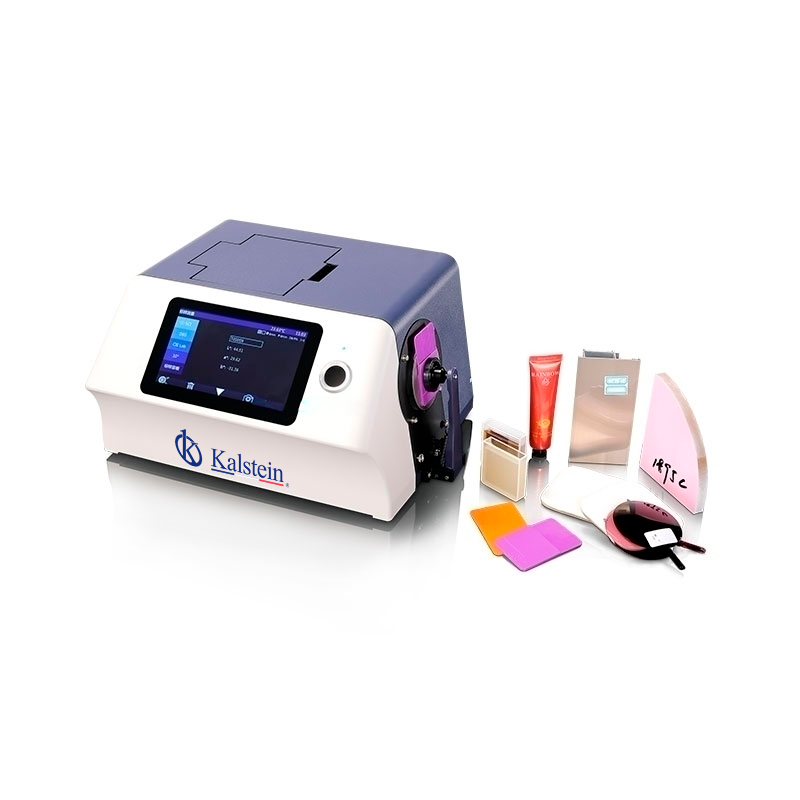

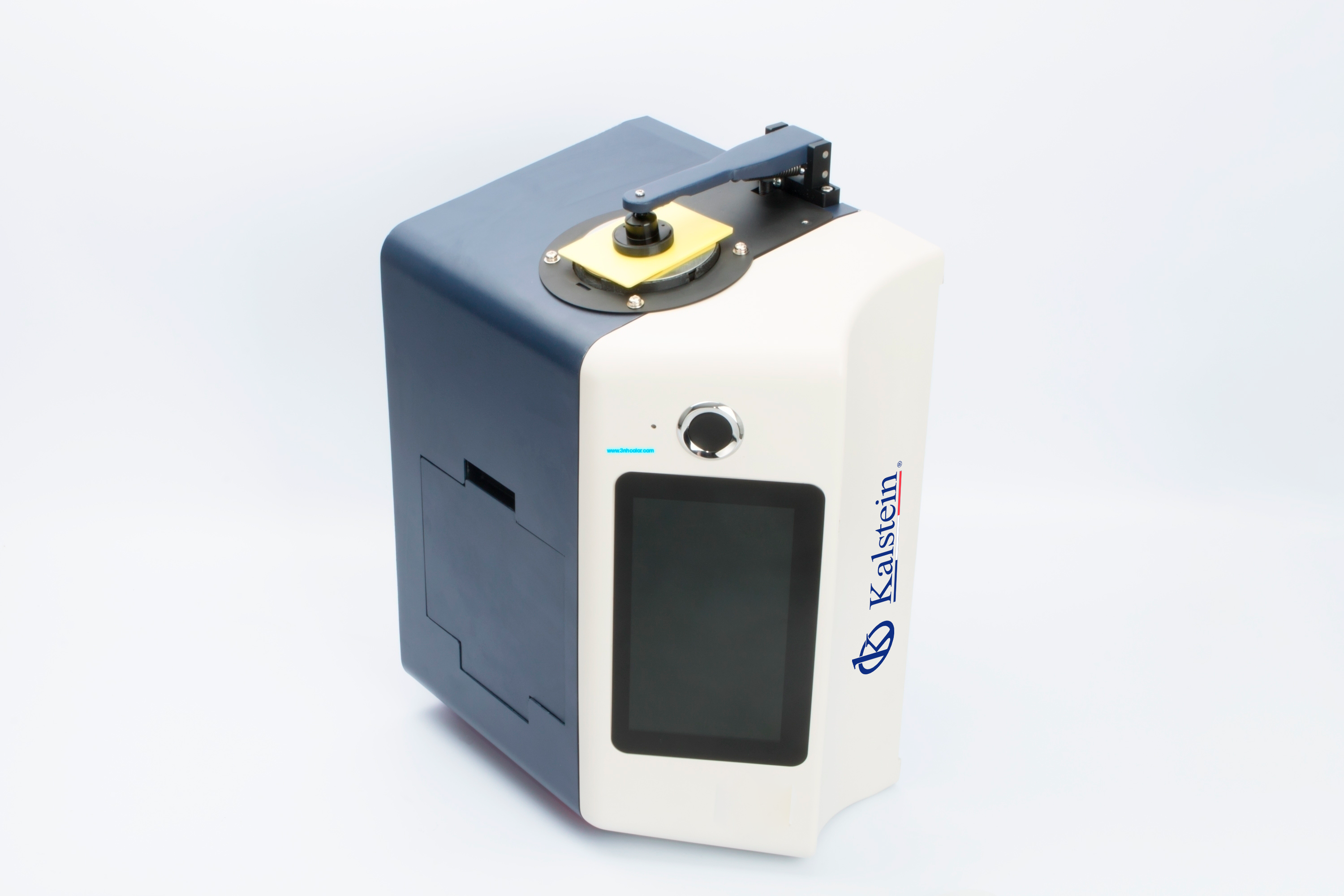

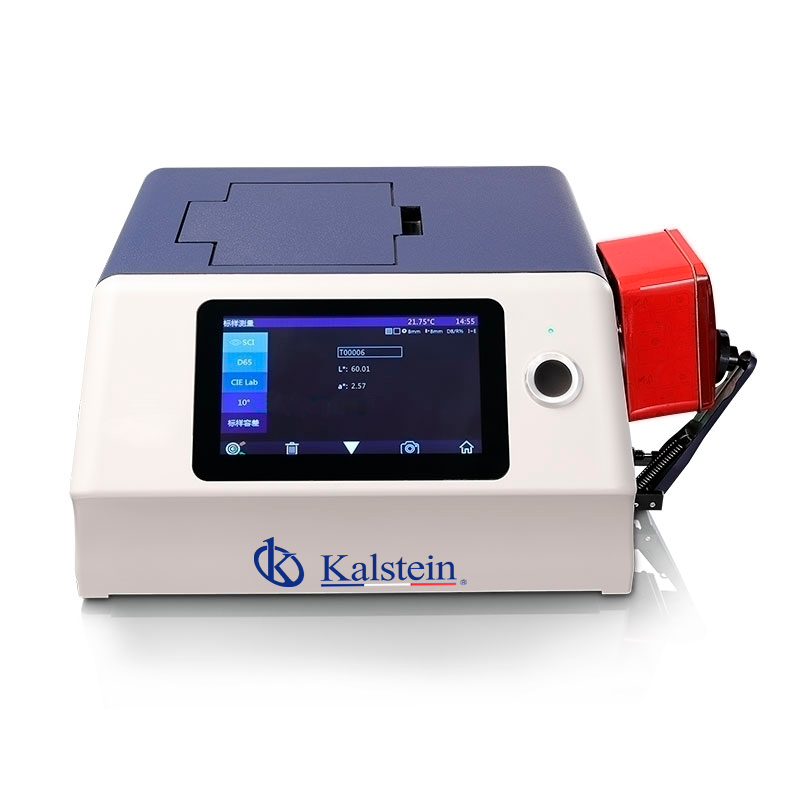

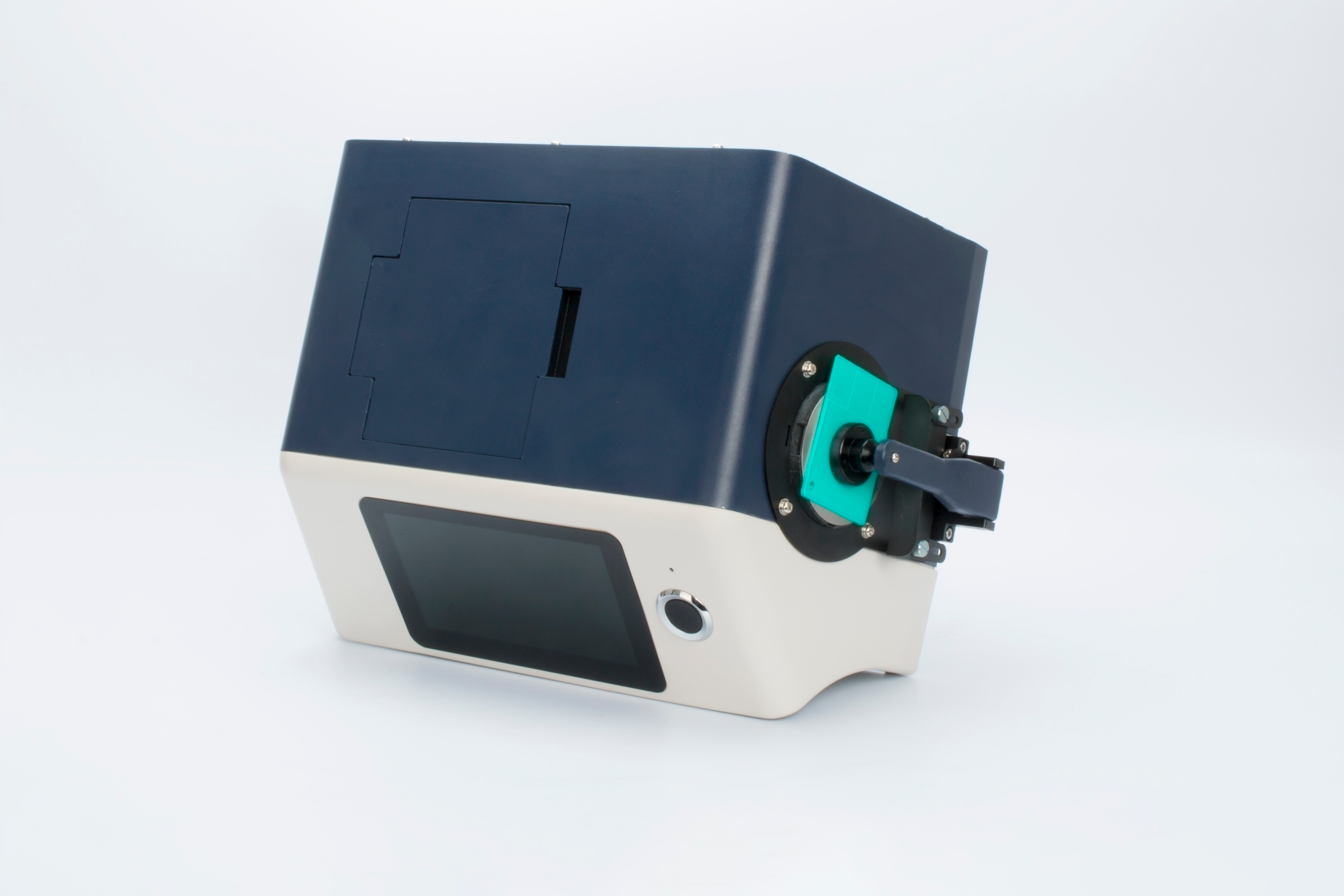

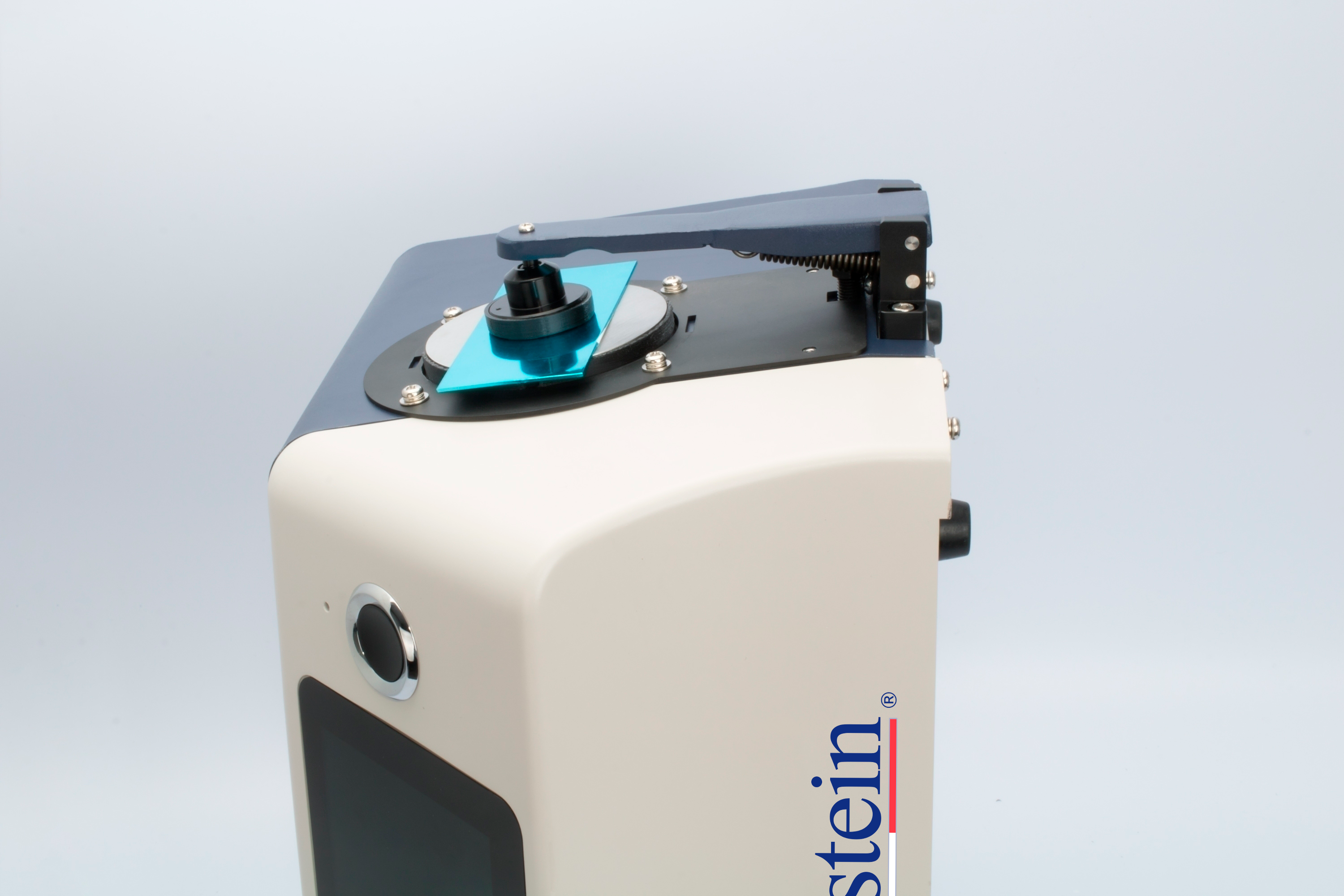

Pulsed Xenon lamp Benchtop Spectrophotometer YR05474

ManufacturerKalstein

Description

The Pulsed Xenon Lamp Benchtop Spectrophotometer YR05474 is an advanced measurement tool designed by Kalstein for high-precision color analysis, suitable for both laboratory and industrial applications. Equipped with cutting-edge features like a 7-inch TFT touchscreen, this spectrophotometer streamlines the navigation and configuration processes. It supports reflective d/8 and transmissive d/0 optical geometries, which enhances its versatility in measuring various types of materials, whether opaque, translucent, or even transparent. Its precision is further ensured by a dual-array 256-element CMOS sensor and adjustable apertures of Φ25.4 mm, 8 mm, and 4 mm. The device offers significant storage capabilities, accommodating up to 40,000 records and is paired with powerful PC software for detailed data analysis.

Market Price

In the competitive spectrophotometry market, the YR05474 model is noted for its cost-effectiveness, typically priced between $4,400 and $5,200 USD. This makes it an attractive option for industries like plastics, inks, food, cosmetics, and automotive, where precise color measurement is crucial to ensuring product quality. For those interested in integrating this high-precision tool into their processes, Kalstein Plus offers a quick and easy way to request a personalized, no-obligation quote.

Frequently Asked Questions

  • Is the YR05474 suitable for both translucent and opaque samples?
    Yes, this spectrophotometer is engineered to measure both opaque and translucent materials effectively, including liquids and transparent solids.
  • What is the storage capacity?
    The YR05474 can store up to 40,000 test results, ensuring efficient tracking and analysis.
  • Does the device include options for adjusting the measurement aperture?
    Yes, it features three adjustable apertures (Φ25.4 mm, 8 mm, and 4 mm), allowing you to tailor the measurement to different sample types.

Advantages and Disadvantages

The YR05474 is applauded for its robust temperature compensation system, ensuring accurate readings in fluctuating environments. Its ergonomic design permits prolonged usage without discomfort. With the capability to work with both LED and UV light sources, it offers versatile operational conditions. However, it may require periodic calibrations in heavily utilized environments to maintain peak accuracy.

Field Use

This spectrophotometer proves its worth in quality control and product development labs across demanding fields like automotive, cosmetics, and medical industries. Its competence in measuring both reflectance and transmittance offers a comprehensive approach to verifying production processes, thereby ensuring high-quality standards throughout.

Recommendations

For optimal performance of the YR05474, regular calibrations and maintenance in a stable and clean environment are recommended. Adjusting the measurement aperture based on sample type and testing conditions is crucial for achieving precise and consistent results. Visit Kalstein Plus today to explore how the YR05474 Desktop Spectrophotometer can transform your quality control processes with its reliable and precise measurement capabilities.

Product Features

  • 7-inch TFT capacitive touchscreen for intuitive operation.
  • Reflective d/8 and transmissive d/0 optical geometries for versatile material measurement.
  • Dual-array 256-element CMOS sensor for precise and stable readings.
  • Adjustable apertures of Φ25.4 mm, 8 mm, and 4 mm for various sample types.
  • Extensive storage capacity for up to 40,000 records.
  • Comes with comprehensive PC software for efficient data analysis.

Technical Specifications

Model YR05474
Optical Geometry Reflectance: d/8 (SCI⪰ Include UV/Exclude UV)
Transmittance: d/0 (SCI⪰ Include UV/Exclude UV); Haze(ASTM D1003)
Conforms to CIE No.15, GB/T 3978, GB 2893, GB/T 18833, ISO7724/1, ASTM E1164, DIN5033 Teil7
Integrating Sphere Size Φ 154mm
Light Source Device 360nm-780nm Xenon Lamp, 400nm cut-off Xenon Lamp,420nm cut-off Xenon Lamp,460nm cut-off Xenon Lamp
Spectrophotometric Mode Concave Grating
Sensor 256 Image Element Double Array CMOS Image Sensor
Wavelength Range 360-780nm
Wavelength Pitch 10nm
Semiband Width 5nm
Reflectance Range 0~200%
Measuring Aperture Reflective : Φ30mm/Φ25.4mm, Φ18mm/Φ15mm, Φ10mm/Φ8mm, Φ6mm/Φ4mm;
Transmissive : Φ30mm/Φ25mm; Remark: 1. Automatic identification of switch caliber 2. Customized Configuration caliber and lens position
Specular Component Reflectance: SCI&SCE
Transmittance: SCI&SCE
Color Space CIE Lab, XYZ, Yxy, LCh, CIE LUV, Hunter LAB, Munsell, s-RGB, HunterLab, DIN, βxy
Color Difference Formula ΔE*ab, ΔE*uv, ΔE*94, ΔE*cmc(2:1), ΔE*cmc(1:1), ΔE*00v, ΔE(Hunter), DIN ΔE99
Colorimetric Index WI (ASTM E313, CIE/ISO, AATCC, Hunter),
YI (ASTM D1925, ASTM 313),
MI (Metamerism Index),
Staining Fastness, Color Fastness, Color Strength, Opacity,
Gardner Index, Pt-Co Index, 555 Index, Haze(ASTM D1003)
Observer Angle 2° & 10°
Illuminants D65, A, C, UV, D50, D55, D75, F1, F2, F3, F4, F5, F6, F7, F8, F9, F10, F11, F12
Displayed Data Spectrogram/Values, Chromaticity Values, Color Difference Values/Graph, Pass/Fail Result, Color Offset
Measuring Time About 2.4s (Measure SCI & SCE about 5s)
Repeatability Spectral reflectance: Φ25.4mm/SCI, Standard deviation within 0.06% (400 nm to 700 nm: within 0.05%)
Chromaticity value: Φ25.4mm/SCI, Standard deviation within ΔE*ab 0.012 (When a white calibration plate is measured 30 times at 5 second intervals after white calibration)
Spectral Transmittance: Φ25.4mm/SCI, Standard deviation within 0.06% (400 nm to 700 nm: within 0.06%)
Chromaticity value: Φ25.4mm/SCI, Standard deviation within ΔE*ab 0.015 (When a white calibration plate is measured 30 times at 5 second intervals after white calibration)
Inter-instrument Error Φ25.4mm/SCI, Within ΔE*ab 0.12
(Average for 12 BCRA Series II color tiles)
Size 370×300×200mm
Weight About 9.6kg
Power Supply DC 24V, 3A Power Adapter
Light Source Device Life 5 years, more than 3 million times measurements.
Display 7″ TFT Capacitive Screen-touch Display
Data Port USB & Bluetooth & Print serial port
Data Storage Standard 5000 Pcs, Sample 40000 Pcs
Language Simplified Chinese, Traditional Chinese, English, (Optional Customized German, French and Spanish)
Working Environment Temperature: 0~40℃; Humidity: 0~85% (No Condensation)
Storage Environment Temperature: -20~50℃; Humidity: 0~85% (No Condensation)

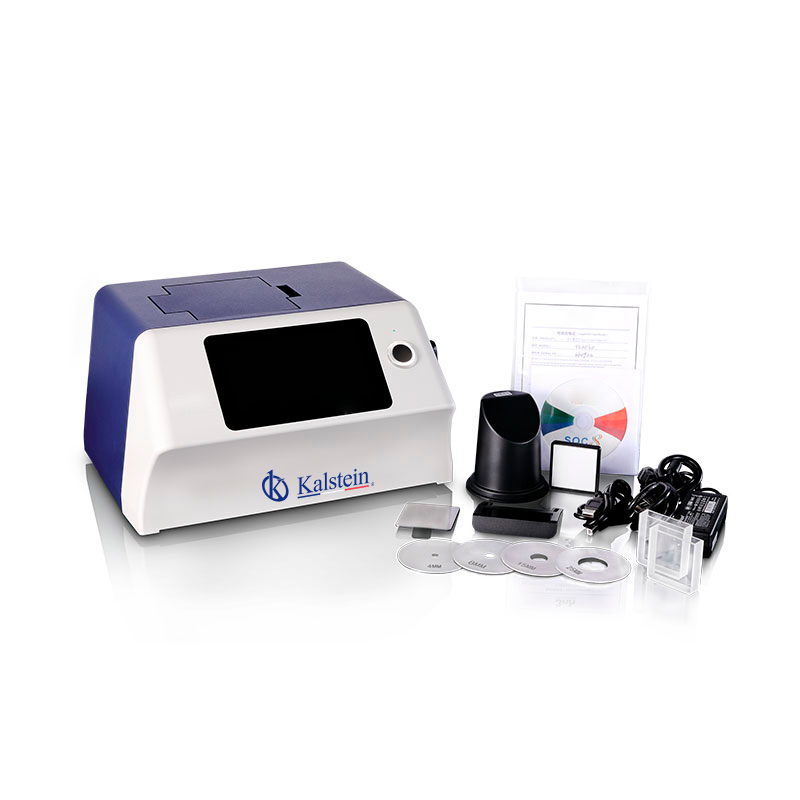

Standard Accessory Power Adapter, User Guide, CD Disk(PC Software), USB cable, Standard Calibration Board, Black Calibration Cavity, Transmission black baffle, Sample holder, 25.4 caliber, 15 caliber, 8 caliber, 4 caliber,Transmissive Test Component
Optional Accessory Micro-printer, Micro Aperture(4mm) transmission test clamp component, Instrument inversion components
Notes: The specifications are subject to change without notice.

Additional information

Weight 12,5 kg
Dimensions 51 × 45 × 33 cm
