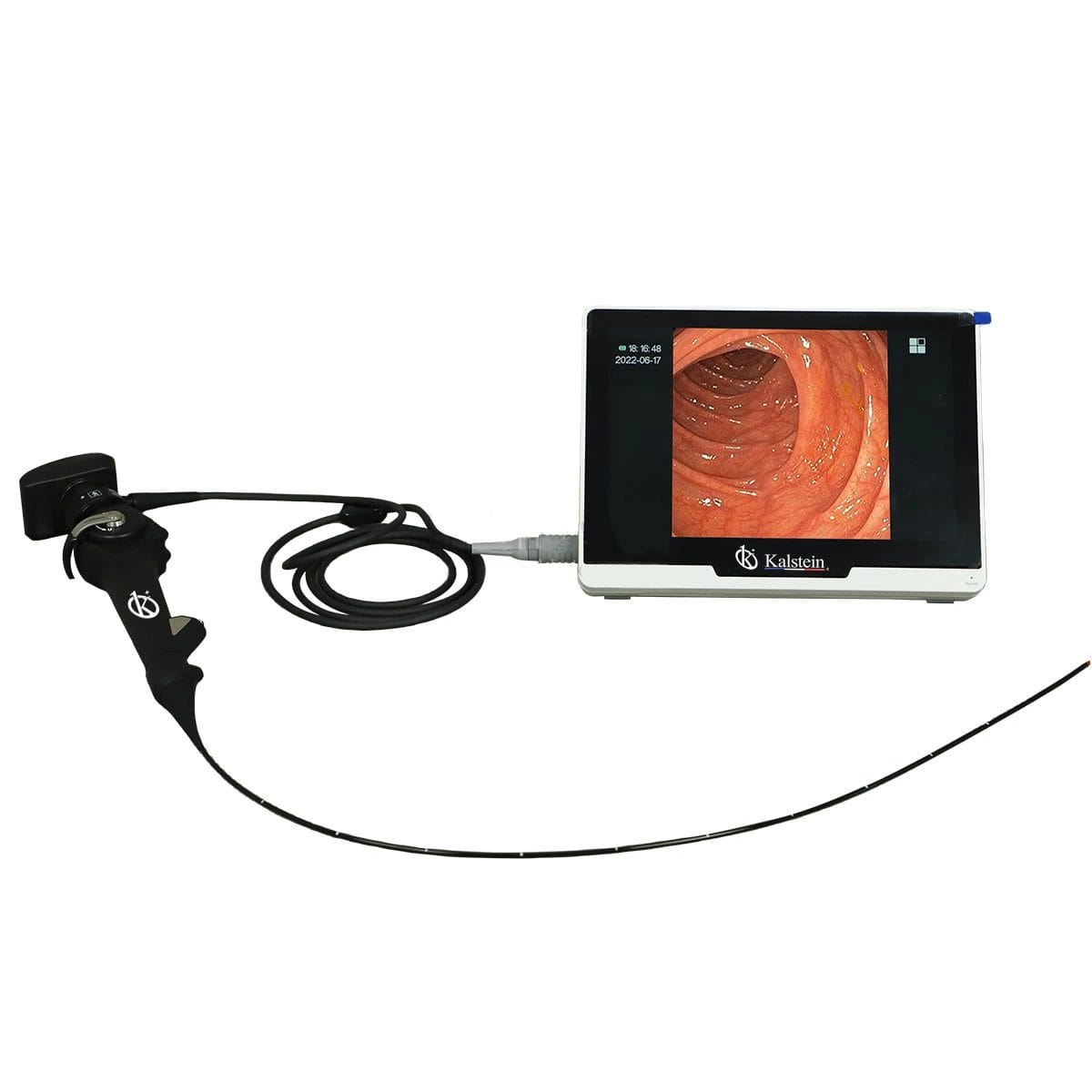

Portable Veterinary Video Endoscope YR06151//YR06155

ManufacturerKalstein

Description

High-resolution CMOS sensor performs clear image, real-time display and no transfer delay

Durable LED light source

Multi-function handle buttons such as photo/video/freeze/zoom, convenient for veterinarian operation by one hand

Four-directions observations by up/down bending and left/right rotating

Video adapter cable is rotatable by 180°, so the veterinarians operate it without any blockings

Wider veterinary applications of bronchoscopy, rhinoscopy, lung depth detection, urethral and bladder examinations or treatments

Technical Specifications
Model Diameter of Insertion Tube Working Channel Working Length View Angle View Depth Range of Bending Screen size
YR06151 2.8 mm 1.2 mm 610 mm 120° 3-200 mm 210° (U), 130° (D)
120° (R), 120° (L)
10-inch
YR06152 3.8 mm 1.5 mm 1000 mm 120° 3-200 mm 180° (U), 130° (D)
120° (R), 120° (L)
10-inch
YR06153 4.8 mm 2.0 mm 1000 mm 120° 3-200 mm 180° (U), 130° (D)
120° (R), 120° (L)
10-inch
YR06154 5.8 mm 2.8 mm 1500 mm 120° 3-200 mm 180° (U), 130° (D)
120° (R), 120° (L)
10-inch
YR06155 5.8 mm 2.8 mm 1500 mm 120° 3-100 mm 180° (U), 130° (D)
120° (R), 120° (L)
4-inch

Additional information

Weight N/A
Dimensions 66 × 50 × 22 cm
Model

YR06151, YR06152, YR06153, YR06154, YR05155
