Description

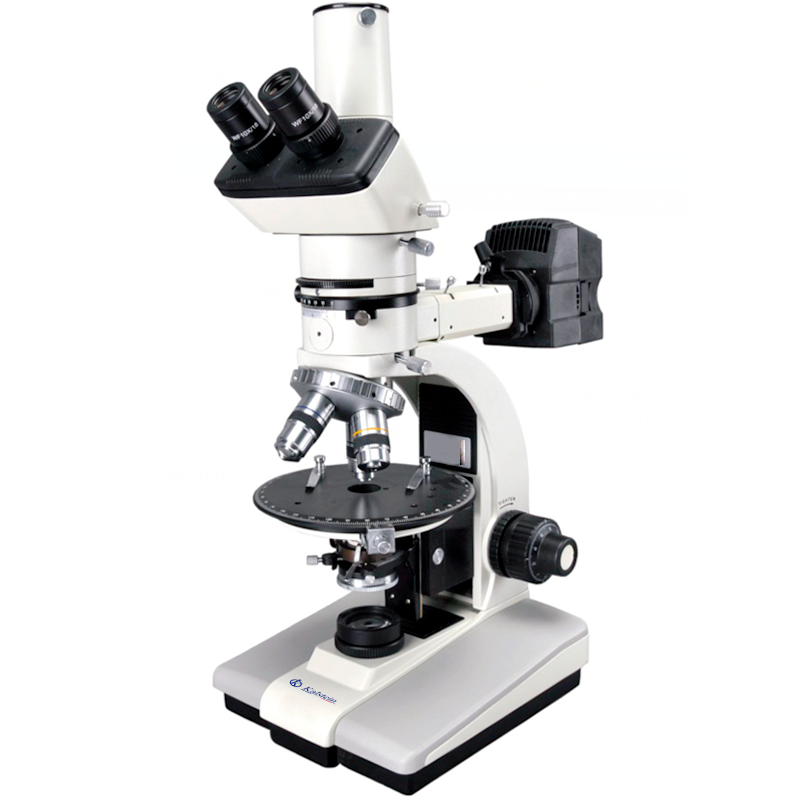

The Polarizing Microscope YR0264 – YR0265 stands out as a versatile tool offering single polarization, orthogonal polarization, and conoscopic observation capabilities. It finds wide application in various fields, including crystallography, geology, analytical chemistry, medicine, biology, and more. Whether used for educational purposes or high-level inspection, this microscope delivers precise and reliable performance, ensuring it meets the demands of professional and academic settings alike.
Market Price
When considering adding a polarizing microscope to your laboratory arsenal, understanding the market price range is essential. While prices can fluctuate depending on specific features and brand reputation, the current market price for such microscopes typically ranges from approximately 3000 USD to 3800 USD. This price range provides a benchmark for those seeking a solid investment in quality microscopy tools.
Frequently Asked Questions
- What kind of samples can I view with the YR0264 – YR0265? You can examine a wide array of samples, including crystals, biological specimens, and asbestos, among others.
- Are there any maintenance requirements? Routine cleaning and annual calibration are recommended to maintain optimal performance.
- Is there a warranty available? Yes, warranties are available, but terms may vary by retailer. Always check with your supplier.
Advantages and Disadvantages
The primary advantage of the YR0264 – YR0265 microscopes is their multi-functional capability, allowing for multiple observation techniques. They also offer strong durability and versatility across various scientific fields. A potential disadvantage is the learning curve for beginners when using some advanced features that these models offer.
Product Usage in the Field
In geological studies, these microscopes are vital for observing mineral structures and identifying properties of different rocks. In medical and biological research, they facilitate the in-depth study of cell structures and pathogen analysis. Their robustness and precision make them indispensable in labs that require detailed material analysis.
Recommendations
For optimal use, ensure that users are well-trained in polarizing techniques to leverage the full functionality of the YR0264 – YR0265. Regular maintenance checks and calibration will enhance durability and accuracy, ensuring the microscopes continue to deliver high-quality results.
Features
- Available in Sliding Binocular and Trinocular Viewing Heads, both inclined at 45°
- Comes with WF10x/18 Eyepieces suitable for different observational needs
- Features Strain Free Achromatic and Plan Achromatic Objectives ranging from 4x to 63x
- Includes a Backward quadruple nosepiece with adjustable center
- Equipped with both coarse & fine focusing adjustment
- Features Revolving Round Stage graduated in 1° increments
- Integrates NA1.25 Abbe condenser with iris diaphragm & filter
- Offers Rotatable analyzer and polarizer for enhanced precision
- Comes with Bertrand Lens that can slide in/out of the optical path
- Provides two types of illumination: Halogen transmitted and reflected
- Equipped with optical compensators for color correction
Technical Specifications
Model | YR0264 | YR0265 | |
Head | Sliding Brinocular Viewing Head, Inclined at 45° | ● | – |
Sliding Trinocular Viewing Head, Inclined at 45° | – | ● | |
Eyepiece | Eyepiece WF10×/18 with scale of cross hair | ● | ● |
Eyepiece WF10×/18 with graticule | ● | ● | |
WF10x/18 | ● | ● | |
Objective | Strain Free Achomatic Objective 4x,10x,25x,40x, 63x | ● | ● |
Strain Free Plan Achomatic Objective 25x,40x, 63x | ● | ● | |
Nosepiece | Backward quadruple nosepiece, Center adjustable | ● | ● |
Focusing | Coaxial coarse & fine adjustment, Range 28mm,Fine division 0.002mm | ● | ● |
Stage | Revolving Round Stage Diameter Φ160mm, Graduated in 1° Increments, Minimum resolution 6’ when using vernier scale | ● | ● |
Mechanical stage, Moving rang 30X40mm | ● | ● | |
Condenser | NA1.25 Abbe condenser with iris diaphragm & filter | ● | ● |
Analyzer | Rotatable analyzer with gradation 0°-90° | ● | ● |
Polarizer | 360° Rotatable | ● | ● |
Bertrand Lens | Bertrand Lens,sliding in/out of optical path | ● | ● |
Optical Compensator | λ Slip(First class red), 1/ 4λ Slip, Quartz wedge | ● | ● |
Illumination | 12V/20W Halogen lamp, Brightness adjustable(Transmitted illumination) | ● | ● |
12V/50W Halogen lamp, Brightness adjustable(Reflected illumination) | ● | ● | |
Micrometer | ● | ● |
