Description
Our ergonomic, sterile operating concept allows for the simple and flexible control of all functions by the surgical team.
Almost unlimited LED life expectancy delivers tremendous product reliability and investment protection.
Environmentally proactive: low power consumption and durable LEDs minimize the impact on our precious resources.
Features
- Endo mode.
- Deep illumination.
- PWM dimming technology, no flickering.
- LED cold light, head temperature rises less than 1℃.
- High color rendering index ensures clear views of the tissue and Organ.
- Removable sterilizer handle.
- Light field adjusting.
Technical Specifications

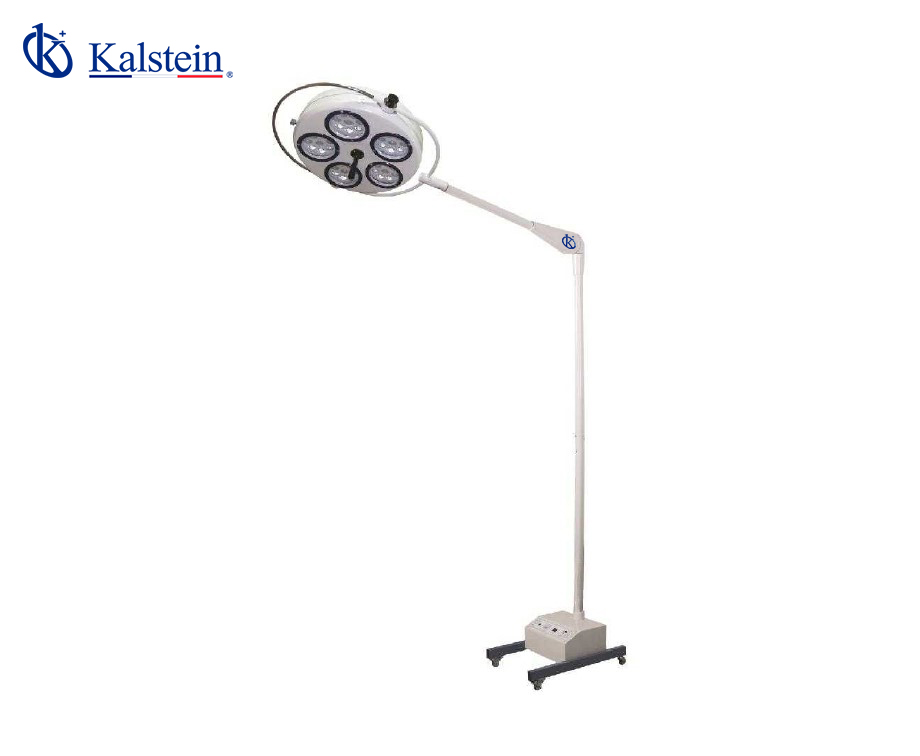

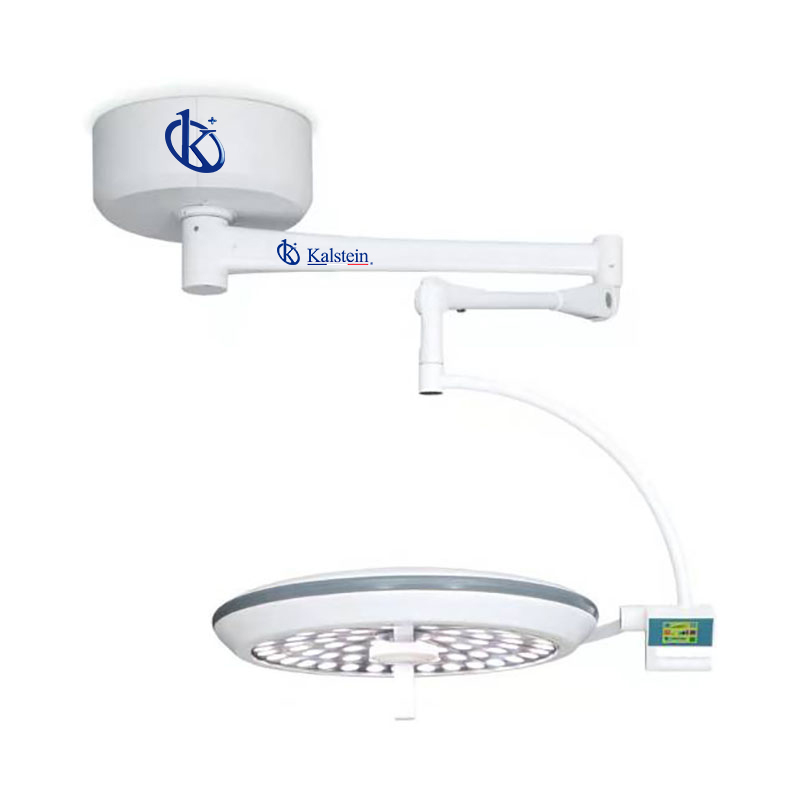

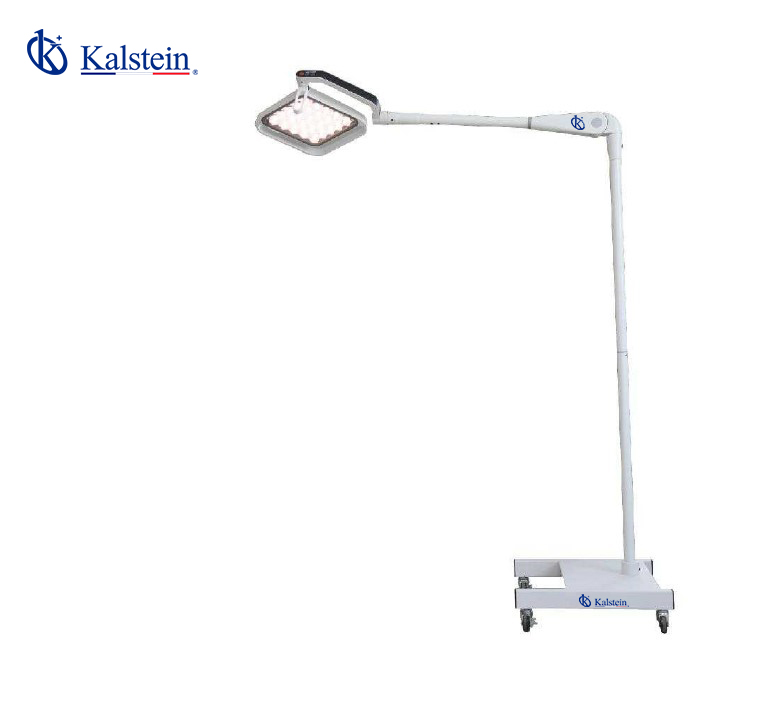

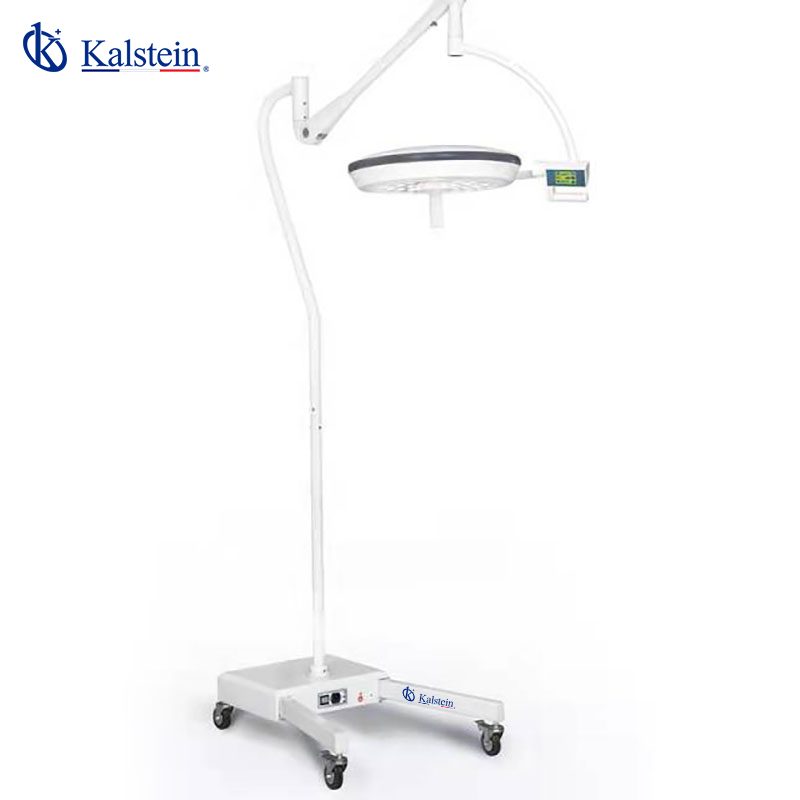

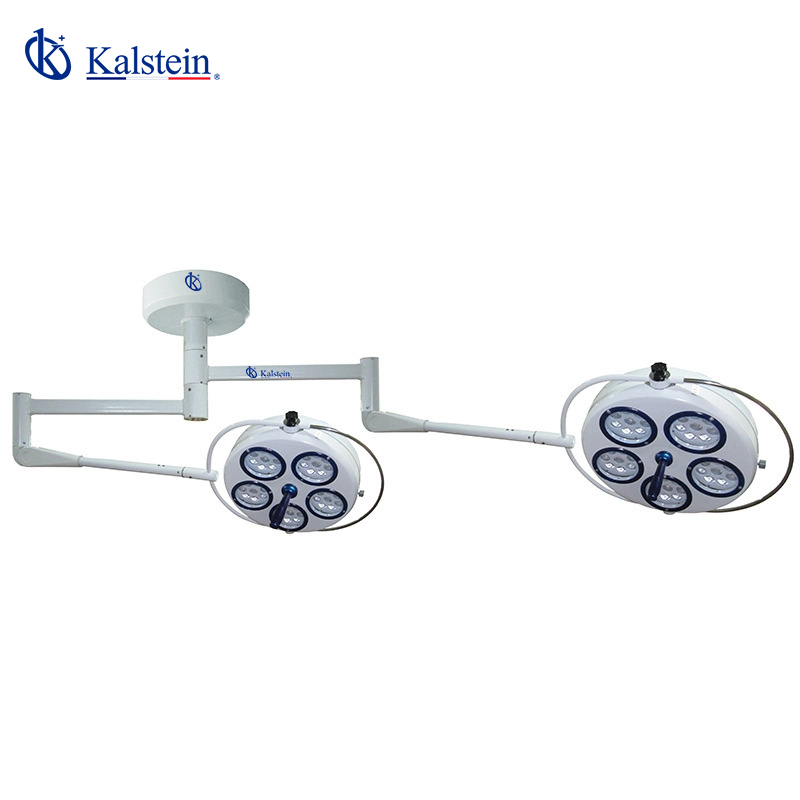

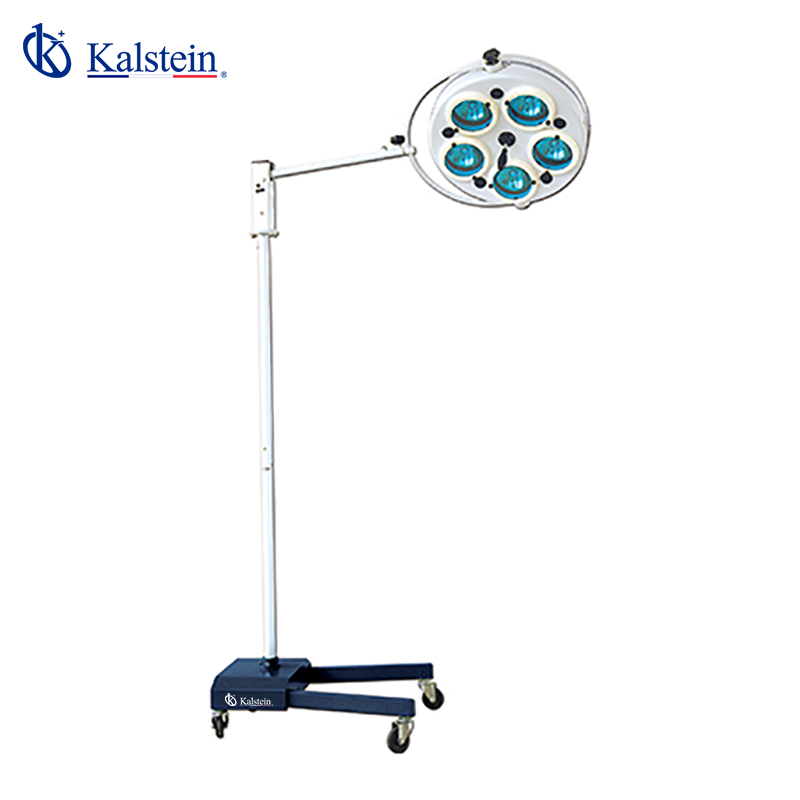

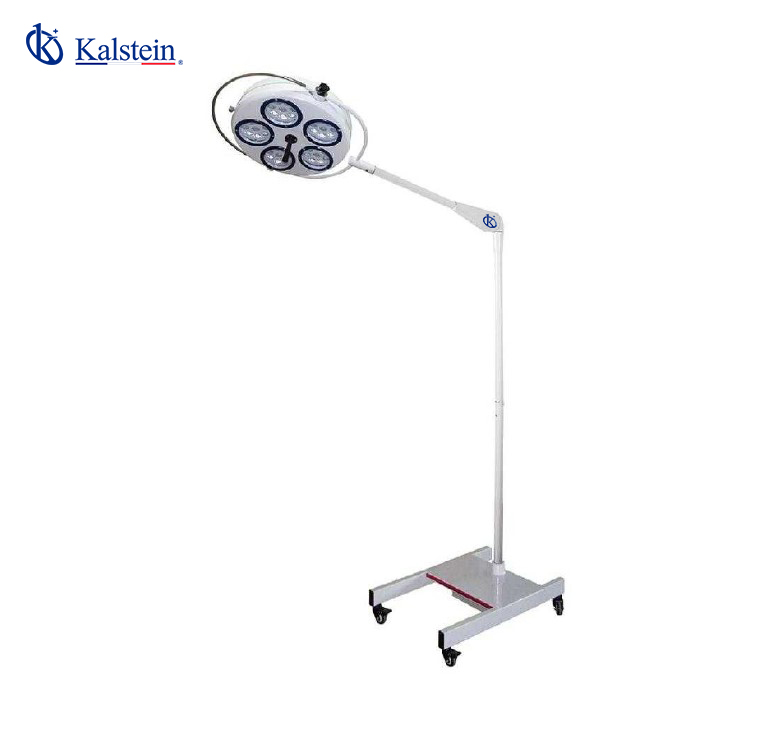

Model | YR02125 | YR02126 | YR02127 | YR02128 | YR02129 | YR02130 | YR02131 | YR02132 |
Head Diameter (mm) | 700 | 500 | 500/500 | 500 | 300 | |||
No. Of LED Blubs | 80pcs | 48pcs | 80pcs | 160pcs | 80pcs | 25 pcs | ||
Illumination (Lux) | 160000 | 140000 | 100000 | ≥100,000/100,000 | ≥60,000 | ≥70,000 | ||
CRI (Ra) | Ra>95 | Ra>85 | 92 | |||||
Color Temperature (K) | 3500-5000 | 4800±300 | 4500±500 | 4800±200 | ||||
Illumination Depth (mm) | 1200 | ≥500 | 300 | |||||
Spot Diameter (mm) | 120-300 | 160-220 | 150 | |||||
LED Life (h) | >50,000 Hours | |||||||

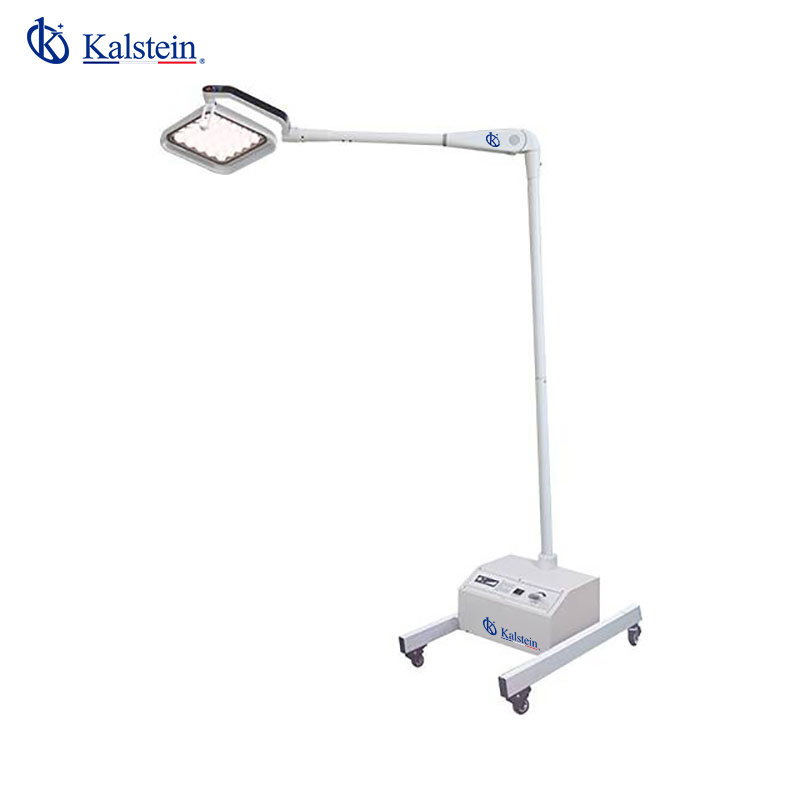

Model | YR02133 | YR02134 | YR02135 | YR02136 | YR02137 | YR02138 | YR02139 | YR02140 |
Head Diameter (mm) | 300 | 250 | 300 | 100 | ||||
No. Of LED Blubs | 25 pcs | 7pc led bulb | 12pc led bulb | 19pc led bulb |
Halogen Bulb
|
|||
Illumination (Lux) | ≥70,000 | ≥30000 | 60000 | ≥80000 | ≥50,000 | |||
CRI (Ra) | 92 | 100≥Ra≥85 | ≥85 | 100≥Ra≥85 | – | |||
Color Temperature (K) | 4800±200 | 4500±500 | 4500±500 | 3500,4000,4500 | 4000±500 | |||
Illumination Depth (mm) | 300 | ≥700 | 300 | |||||
Spot Diameter (mm) | 150 | 100-280 | 150 | |||||
LED Life (h) | >50,000 Hours | ≥40,000 Hours |
