Description

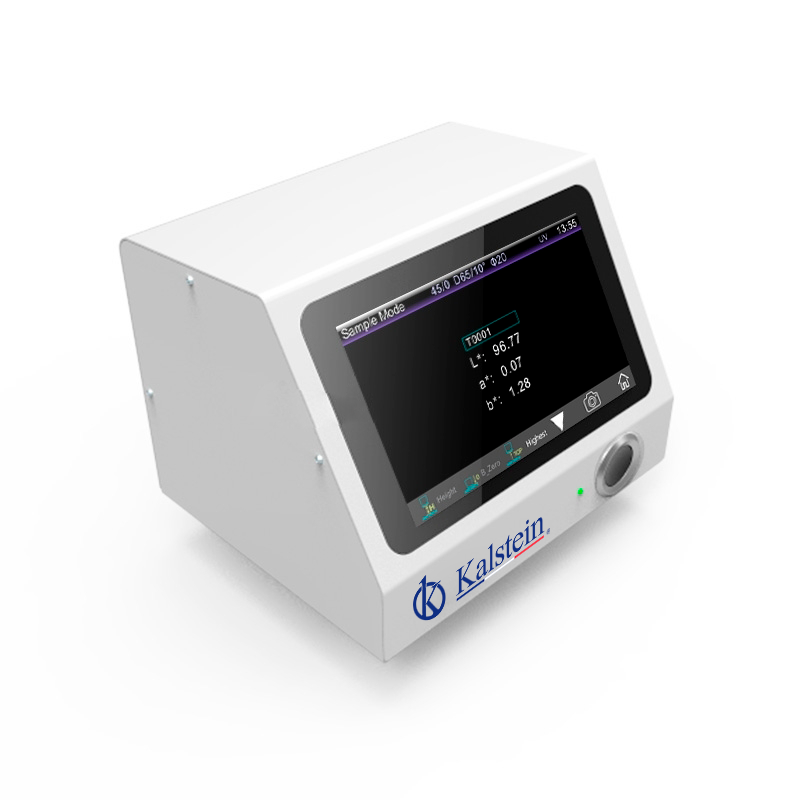

The YR05480 non-contact desktop spectrophotometer is an innovative and highly precise solution for color measurement, designed for non-contact analysis of liquids, sauces, powders, and other delicate materials. This device utilizes a standard D/8 optical geometry, with diffuse illumination and 8° SCI reception, ensuring stable and accurate measurements each time. Equipped with a dual-array 256-pixel CMOS sensor, the YR05480 offers high optical resolution that enhances measurement speed and ensures consistent and reliable results. Its full-spectrum LED light source and concave grating technology ensure a complete spectral distribution within the visible range, minimizing maintenance costs and maximizing accuracy.
Market Price
The YR05480 non-contact spectrophotometer is positioned in the price range of $10,520 to $10,550 USD, making it an affordable and competitive option compared to other high-end products in the color analysis market. This investment is ideal for industries requiring meticulous quality control, as the YR05480 offers advanced features that ensure the durability and accuracy of measurements in industrial environments. For a personalized quote tailored to your specific needs, you can access the Kalstein Plus platform, where you can easily generate a quote without obligation.
Frequently Asked Questions
- Is the YR05480 suitable for measuring liquids and powders?
Yes, its non-contact design allows for the measurement of liquids, powders, and other sensitive materials without the risk of damage or contamination. - How many measurements can the device store?
It can store up to 48,000 measurements, distributed across sample and continuous statistics modes. - Is it possible to adjust the measurement time?
Yes, the measurement time is adjustable between 0.2 and 1.5 seconds, depending on user configuration.
Advantages and Disadvantages
The YR05480 offers significant advantages, such as its non-contact precision, its ability to work with various color spaces and observation light sources, and its high measurement speed, which allows for over 400,000 samples to be measured per day. As a drawback, this model may require periodic calibrations in high-use environments to maintain optimal accuracy.
Field Use
This spectrophotometer is ideal for applications in industries such as food, plastics, ceramics, and cosmetics, where color accuracy is critical. Thanks to its advanced technology, the YR05480 provides reliable real-time data, facilitating quality control in optimized production lines and detailed analysis in research and development laboratories.
Recommendations
To ensure the durability of the YR05480 and achieve optimal results, periodic calibrations are recommended, and the equipment should be kept in controlled environmental conditions. Properly adjusting the measurement distance and adapting modes according to the sample type will ensure consistent performance. Request a personalized quote through Kalstein Plus and discover how the YR05480 non-contact desktop spectrophotometer can optimize your quality control processes, ensuring precision in every measurement.
Technical parameters
| Model | YR05480 |
| optical geometry | D/8 (diffuse illumination, reception at 8°, SCI includes specular reflection light); |
| Complies with CIE standard No.15, GB/T 3978, GB 2893, GB/T 18833, ISO7724-1, ASTM E1164, DIN5033 Teil7, GB 2893, GB/T 18833 | |
| Features | Non-contact test between the test probe and the tested sample, to achieve accurate non-contact color measurement of liquids, sauces, powders, etc. Mainly used for accurate color measurement and quality control of automated production lines; the measurement time can be adjusted from 0.2 to 1.5 seconds, and the software functions can be customized (additional customization function needs to be evaluated). |
| Light source | Full-spectrum LED light source, UV light source |
| Spectrophotometric mode | concave grid |
| Sensor | 256-pixel dual-matrix CMOS image sensor |
| Wave range | 400~700nm, 10nm output |
| Measured reflectance range | 0-200% |
| Measuring aperture | Φ20mm (Φ10mm can be customized) |
| Non-contact distance | 3.0 mm (±0.2 mm) |
| Sample height | Unlimited thickness, only test probes are used |
| Distance adjustment method | Fixed height according to actual sample |
| Measuring mode | Software customization function (additional customization function to be evaluated) |
| Locating | camera location |
| Color space | Laboratory CIE,XYZ,Yxy,LCh,LUV CIE,Musell,s-RGB,HunterLab,βxy,DIN Lab99 |
| Color difference formula | ΔE*ab,ΔE*94,ΔE*cmc(2:1),ΔE*cmc(1:1),
ΔE*00,ΔE(Hunter),DINΔE99. |
| Other colorimetric index | WI (ASTM E313, CIE/ISO, AATCC, Hunter), |
| YI(ASTM D1925，ASTM 313), | |
| Index of metamerism MI, | |
| Stain resistance, color fastness, strength, opacity, opacity | |
| Observer angle | 2°/10° |
| Illuminant | D65,A,C,D50,D55,D75,F1,F2(CWF),F3,F4,F5,F6,
F7(DLF),F8,F9,F10(TPL5),F11(TL84),F12(TL83/ U30) |
| Data shown | Spectrogram/values, sample chromaticity values, color difference/graphic values, color simulation, pass/fail result, display tolerance can be configured |
| Measuring time | As fast as 0.2 seconds |
| Data storage | Sample mode + Quality control mode 18,000 |
| Continuous statistical mode 30,000, for a total of not more than 48,000 | |
| Repeatability | In the optimal measurement mode (when the time of a single measurement is 1.5 seconds): |
| Spectral reflectance: within 0.1% of standard deviation: | |
| Chromaticity value: ΔE*ab within 0.03 (after warming up and calibrating the instrument, measure the average value of the slate 30 times within 5 s). | |
| Error between instruments | Within ΔE*ab 0.2 (Average value measured from 12 mosaics of BCRA series Ⅱ). |
| Method of measurement | Single measurement, average measurement (2~99 times) |
| Dimension | 200*200*160mm (test probe) |
| Weight | Approx. 3 kg (test probe only) |
| Energy | AC 24V, power adapter power supply 3A |
| Illuminating life | 5 years, more than 3 million times measurements |
| Monitor | 7-inch TFT color LCD, capacitive touch screen |
| Data port | USB, Bluetooth®5.0 |
| Language | Simplified Chinese, Traditional Chinese, English |
| Operating environment | 0~40 ℃, 0~85 % RH (non-condensing), altitude: less than 2000 m |
| Storage environment | -20~50℃, 0~85%RH (no condensation) |
| Standard accessory | Power adaptor, manual, data cable, standard calibration plate, black calibration box |
| notes | This model is especially suitable for optimized production lines, deep customization of functions will incur additional customization costs. |
