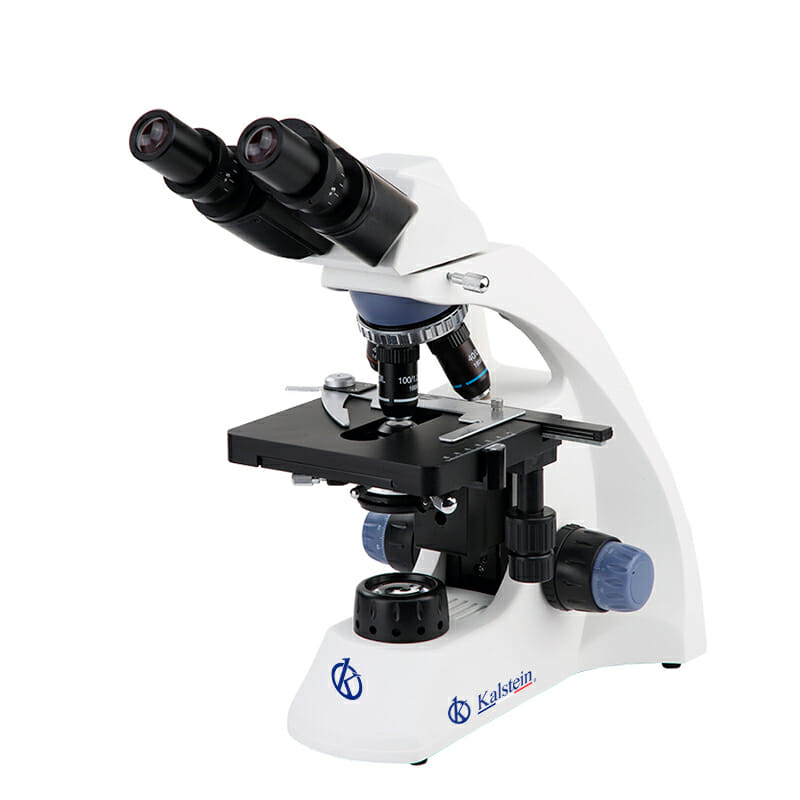

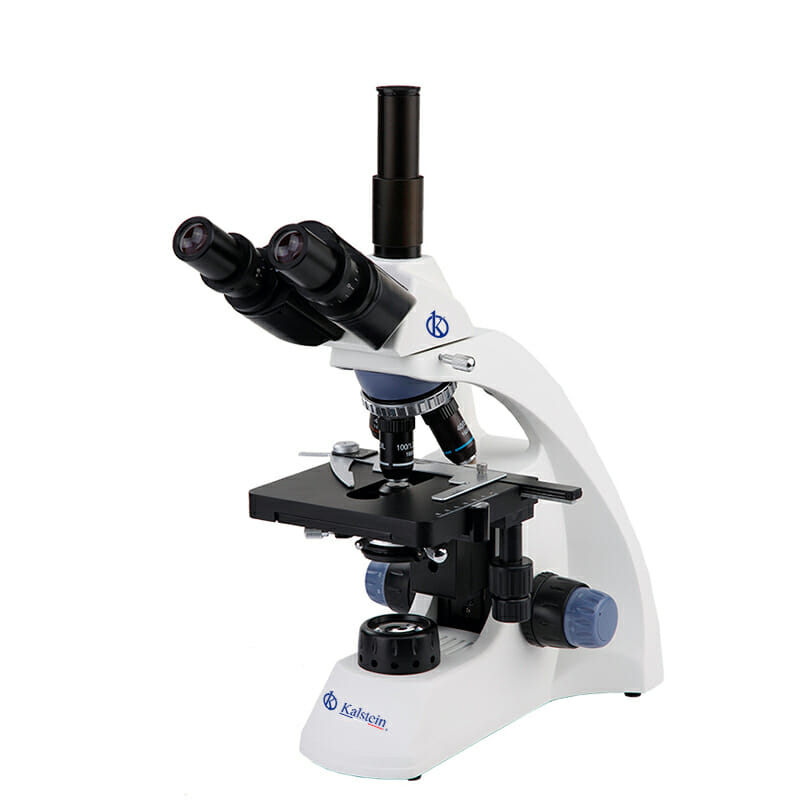

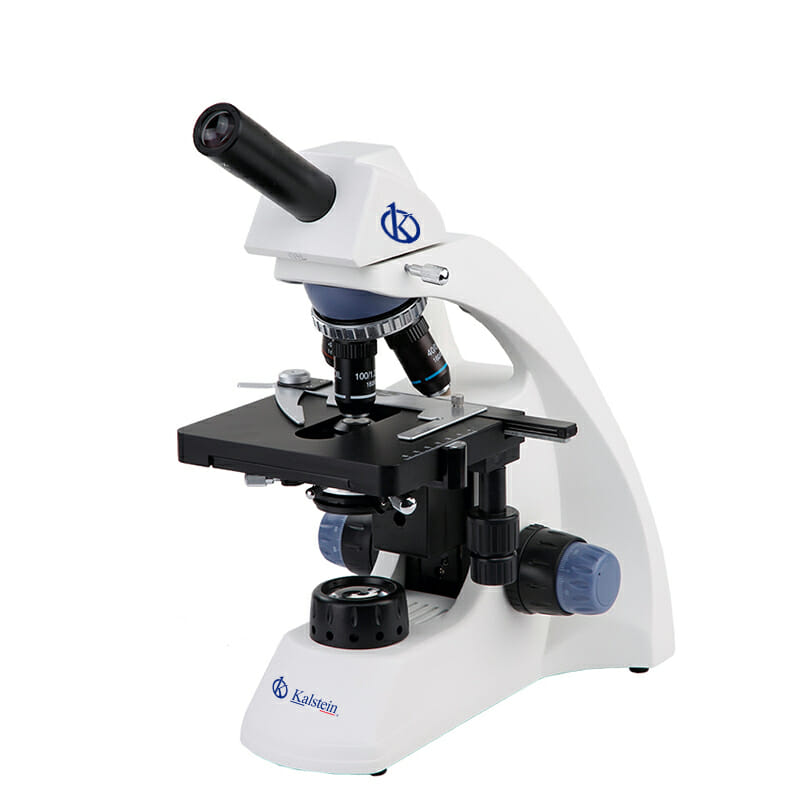

Biological Microscope YR0242-M // YR0242-T
Biological Microscope YR0242-M // YR0242-T — equipo de laboratorio Kalstein con especificaciones técnicas, características avanzadas y soluciones profesionales certificadas para uso científico.
The Biological Microscope YR0242-M // YR0242-T is a versatile and advanced optical device designed for detailed biological studies, educational purposes, and research. This microscope offers monocular, binocular, trinocular, and teaching head options, ensuring adaptability to various observation needs. Equipped with a quadruple nosepiece featuring a precise click-stop mechanism, it guarantees quick and smooth objective changes. The integrated double layer mechanical stage with a size of 142x132 mm and a moving range of 75x50 mm allows for precise and stable sample positioning. The Abbe condenser with a numerical aperture of 1.25 and a high brightness adjustable 3W LED ensures excellent illumination with high contrast and clarity. Additionally, the infinity plan and achromatic optical systems provide superior image quality, making this microscope an ideal tool for both beginners and seasoned professionals in the biological sciences.
Market Price Overview
The price of high-quality biological microscopes, such as the Biological Microscope YR0242-M // YR0242-T, generally ranges between 300 USD and 1,000 USD. This range reflects various factors from technological features to brand reputation in the market. When considering the purchase of such a microscope, it's crucial to compare different models and their specifications to ensure the best value for investment.
Frequently Asked Questions
- What is the magnification range of the microscope?
The microscope provides a standard magnification range from 40x to 1000x. - Can I use LED lighting instead of halogen?
Yes, the lamp source is optional between halogen 6V20W or LED. - Is this microscope suitable for educational purposes?
Absolutely! Its features make it ideal for both classroom environments and individual research projects.
Advantages and Disadvantages
One of the main advantages of the Biological Microscope YR0242-M // YR0242-T is its versatility with multiple head options and adjustable diopters for personalized observations. The built-in LED lighting enhances usability in various lighting conditions. However, users might find the initial setup slightly complex due to its numerous features and parts, requiring careful handling.
Product Use in the Field
In practical settings, this microscope proves invaluable for detailed biological examinations, cellular studies, and microorganism analysis. Researchers benefit from its precision and adaptability, conducting experiments with reliability in laboratories or academic institutions. The stable mechanical stage and clear optical system allow users to focus on specimen examination without distraction.
Recommendations
For optimal use, ensure regular maintenance by cleaning lenses with appropriate solutions and covering the microscope when not in use to prevent dust accumulation. Additionally, attending workshops or training sessions on advanced microscope handling can enhance user proficiency and maximize the potential of the Biological Microscope YR0242-M // YR0242-T.
Features
- Monocular, binocular, trinocular, and teaching head options
- Quadruple nosepiece with precise click stop
- Double layer mechanical stage with precise movement
- Adjustable high brightness 3W LED lighting
- Infinity plan and achromatic optical systems
Technical Specifications
| Model No. | YR0242-M | YR0242-B | YR0242-T |
| Video Adapter | —— | C-Mount 0.3x | —— |
| Power Supply Type | AC 110V-240V | —— | |
| Transmit Light | Halogen 6V20W or LED Optional | ||
| Light Source Type | Halogen | ||
| Condenser N.A. | 1.25 | ||
| Condenser Type | Abbe | ||
| Condenser Features | Rack & Pinionↆ↑, Filter Holder, Center Adjustable | ||
| Focusing Scale | 0.002mm | ||
| Focusing Range | 36mm | ||
| Focusing Type | Coaxial Coarse & Fine | —— | |
| Focusing Features | Safety Stop Screw Tension Adjustable | ||
| Working Stage Moving | 75*50mm | ||
| Working Stage Size | 132*142mm | ||
| Working Stage Type | 2 Layers Mechanical | ||
| Objective | Achromatic 4x, 10x, 40x(S), 100x(O,S) | ||
| Objective Type | Achromatic | ||
| Nosepiece Holes | 4 Holes | ||
| Nosepiece Features | Inward | ||
| Eyepiece | WF10x/18mm | ||
| Eyepiece Diameter | 23.2mm | ||
| Head Interpupillary | 54~75mm | ||
| Head Rotation | Head Rotate 360° | —— | |
| Head Inclination | 30° | —— | |
| Head Type | Monocular | Binocular | Seidentopf Trinocular |
| Standard Magnification | 40x-1000x | —— | |
| Optical System | Achromatic | ||
| Standard Function | BF | —— | |
Technical specifications
| Dimensions | L 34 × W 25.5 × H 49 cm |
|---|---|
| Weight | 6 kg |
| Manufacturer | Kalstein |
