Description

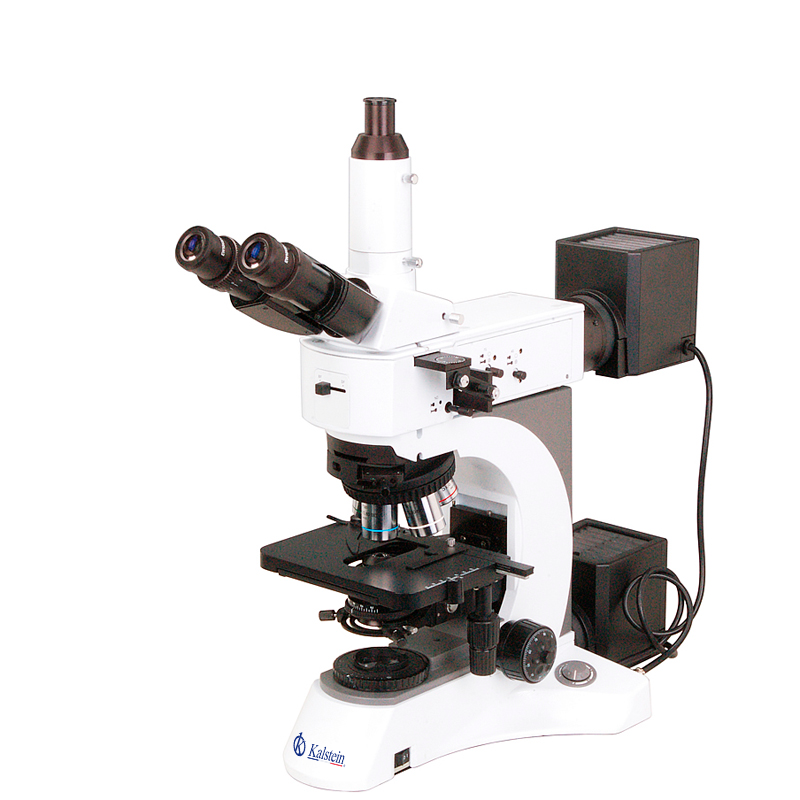

YR0255 Metallurigcal Microscope, is an ideal instrument for industry inspecition and science research laboratory.
- Infinity Optical System, BF/DF, Transmit & Reflect Illumination, DIC, Polarzing System
- Full Range BF/DF Objectives Included
- Polarization System Optional
- DIC System Optional
- Powerful Transmitted And Reflected Illumination System with Kohler Illumination.
Technical Specifications
Model | YR0255 |
Standard Function | BF-DF |
Upgrade Function | BF-DF-PL-DIC |
Features | Infinity BF+DF DIC |
Optical System | Infinity Plan |
Head Type | Seidentopf Trinocular |
Head Inclination | 30° |
Head Rotation | Head Rotate 360° |
Head Interpupillary | 40~75mm |
Head Diopter | Left Tube Adjustable |
Head Light Path | E50 : P50 |
Eyepiece Diameter | 30.0mm |
Nosepiece Features | Inward with DIC Slot |
Nosepiece Holes | 5 holes |
Objective Features | LWD Covreless BF+DF DIC |
Objective Type | Infinity Plan Dark Field Metallurgical |
Working Stage Features | Size ≥ 140 x 180mm |
Working Stage Type | 2 Layers Mechanical |
Focusing Features | Safety Stop Lock Ring Tension Adjustable |
Focusing Type | Coaxial Coarse & Fine |
Light Soruce Features | Kohler Illumination Aspheric Collector Halogen 100W |
Light Source Type | Halogen |
Power Supply Type | AC 110V-240V |
