Laboratory Microscope YR0241

ManufacturerKalstein

Description

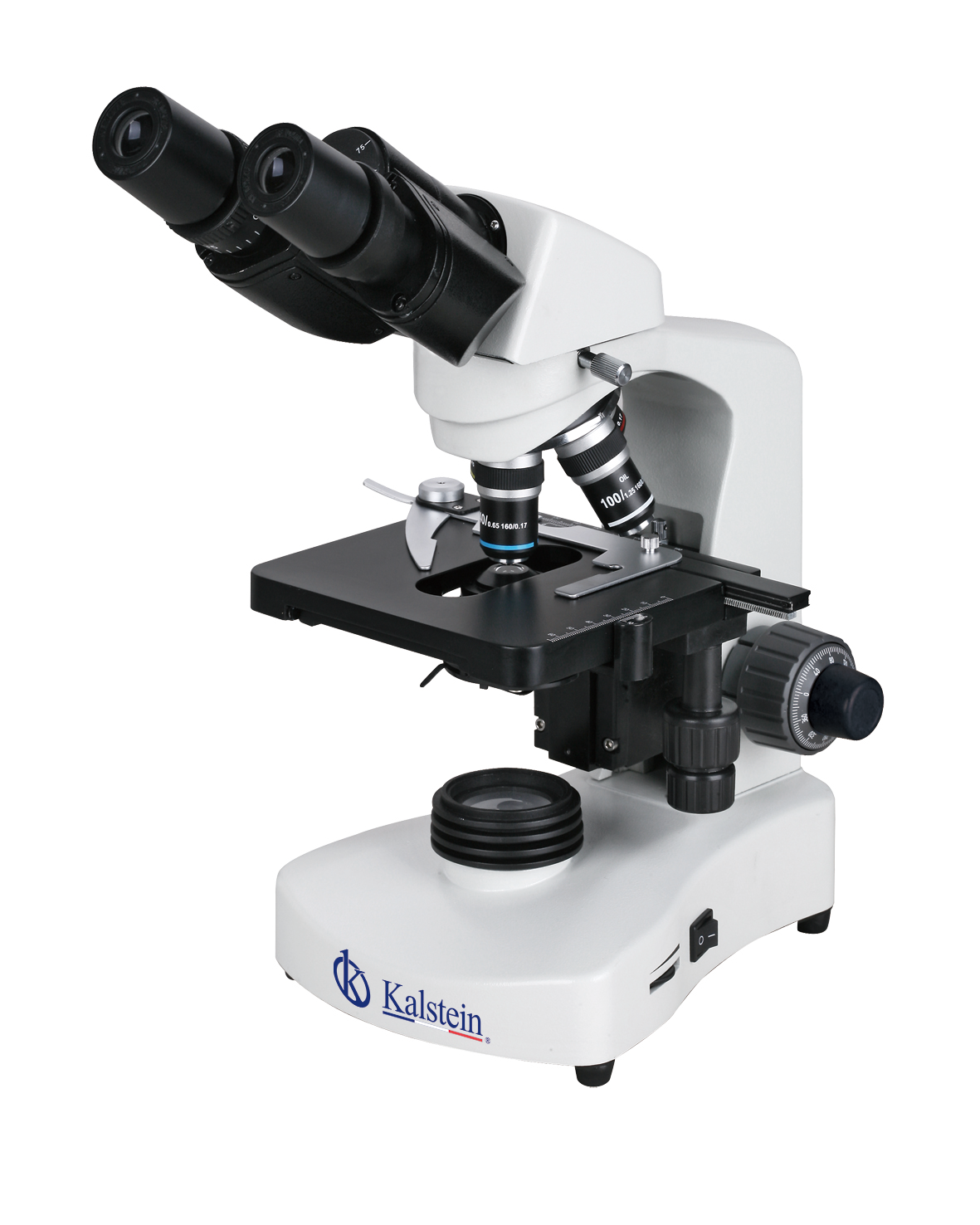

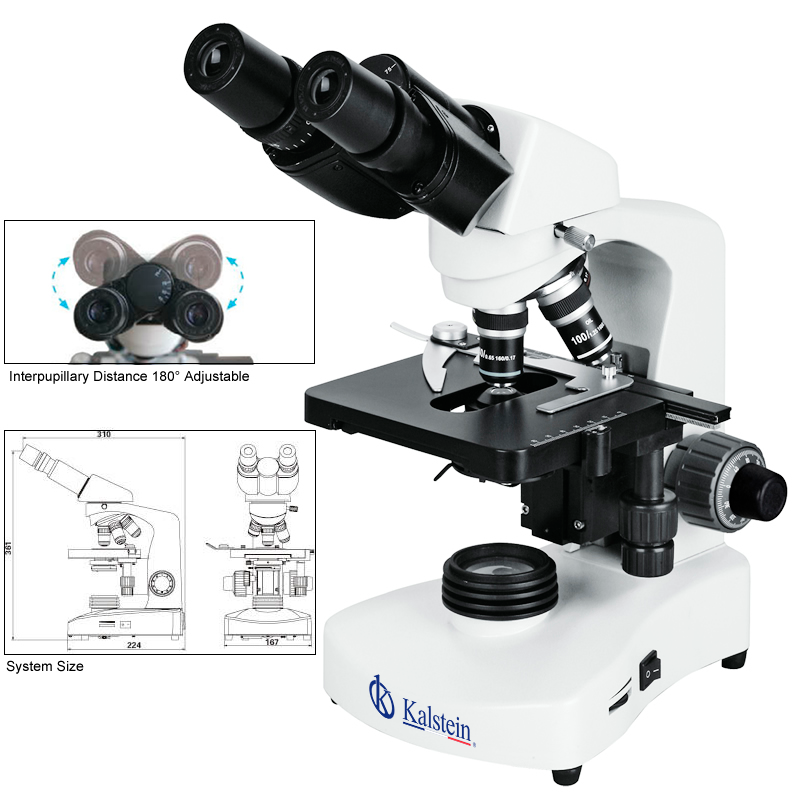

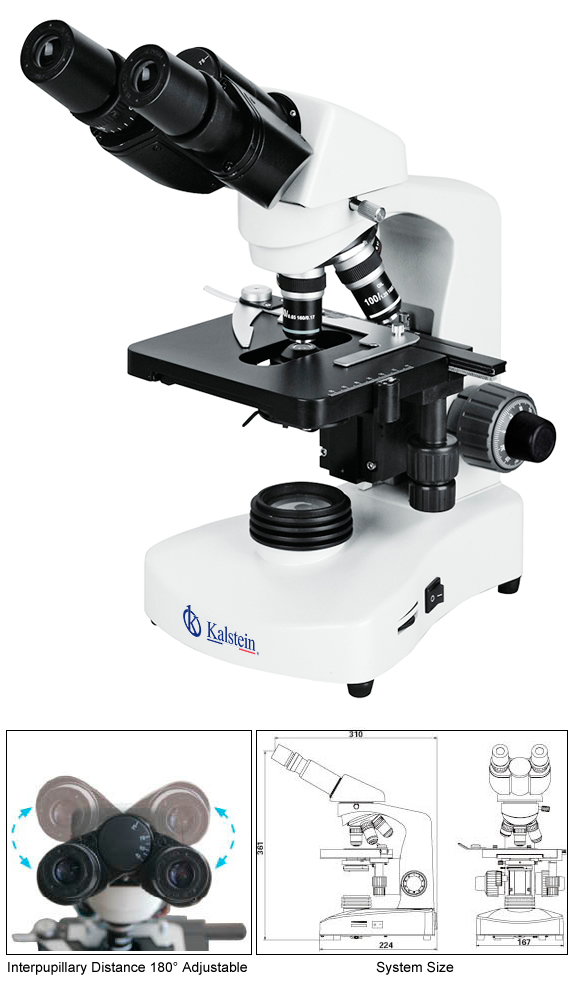

The Laboratory Microscope YR0241 is a state-of-the-art instrument designed for precision and clarity in laboratory observations. It features a Siedentopf trinocular head inclined at 30°, allowing comfortable observation over extended periods. With an array of achromatic objectives (4x, 10x, 40x, 100x) and wide field eyepieces, this microscope ensures high-resolution imagery that meets professional standards. The device also includes a backward quadruple nosepiece and a mechanical stage with fine focusing capabilities, making it an excellent choice for both educational and professional settings.

Market Price

Typically, laboratory microscopes like the YR0241 are priced between 300 USD and 1200 USD, depending on their specifications and additional features. This pricing makes the YR0241 an affordable yet advanced option in this category, offering excellent value for its range of functionalities.

Frequently Asked Questions

What is the magnification range of the microscope? The YR0241 offers a magnification range from 40x to 1000x, thanks to its series of achromatic objectives and eyepieces.

Is the illumination adjustable? Yes, the microscope is equipped with a 3W LED light with adjustable brightness to accommodate various lighting requirements.

Advantages and Disadvantages

Advantages: This microscope offers flexible viewing options with its trinocular head and interchangeable objectives. Its LED illumination ensures energy efficiency and low heat generation, making it suitable for extended use.

Disadvantages: While highly functional, the YR0241 might require additional accessories, such as a phase contrast kit or polarization attachment, to meet specific research needs.

Use of the Product in the Field

The YR0241 is ideal for applications in educational settings, research laboratories, and clinical environments. Its precision and ease of use make it an essential tool for viewing specimens, microorganisms, and cellular structures in fine detail.

Recommendations

For optimal use, ensure regular cleaning and maintenance of the microscope lenses and mechanical parts. Consider using optional accessories offered by Kalstein for specialized research requirements. To maximize efficiency, always store the microscope covered when not in use to prevent dust accumulation.

Features

  • Trinocular head with 30° incline for comfortable viewing
  • Variety of achromatic objectives for flexible magnification
  • Wide field eyepieces with 18mm diameter
  • Advanced LED illumination with adjustable brightness

Technical Specifications

Model YR0241
Head Siedentopf binocular head, inclined at 30°, interpupilary distance 48-75mm
Head Siedentopf trinocular head, inclined at 30°, interpupillary Distance 55-75mm
Eyepiece Wide field eyepiece WF10x/ 18
Objective Achromatic objective 4x
Objective Achromatic objective 10x
Objective Achromatic objective 40x
Objective Achromatic objective 100x
Nosepiece Backward quadruple nosepiece
Stage Double layers mechanical stage132x142mm/ 75x40mm
Focusing Coaxial coarse & fine knob, moving range 24mm, fine division 0.004mm
Condenser Abbe condenser N.A.1.25 with Iris diaphram & filter
Illumination LED 3W, brightness adjustable
Optional Accessories Item No.
Eyepiece P16x/11 YR0241-op1
Phase Contrast Kit YR0241-op2
Polarization Attachment YR0241-op3
Illumination Halogen lamp 6V/ 20W, brightness adjustable YR0241-op4
Dark Field Condensor YR0241-op5

Additional information

Weight 6,3 kg

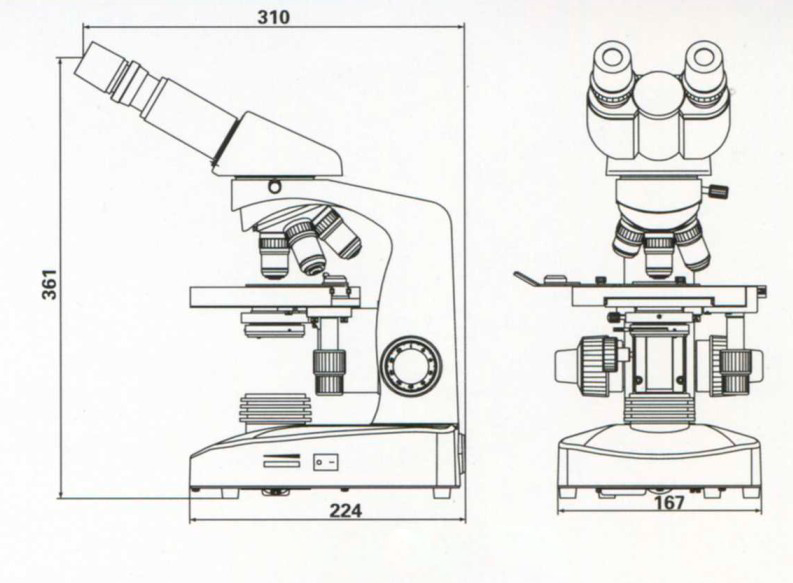

Dimensions 39,6 × 26,2 × 49,2 cm
