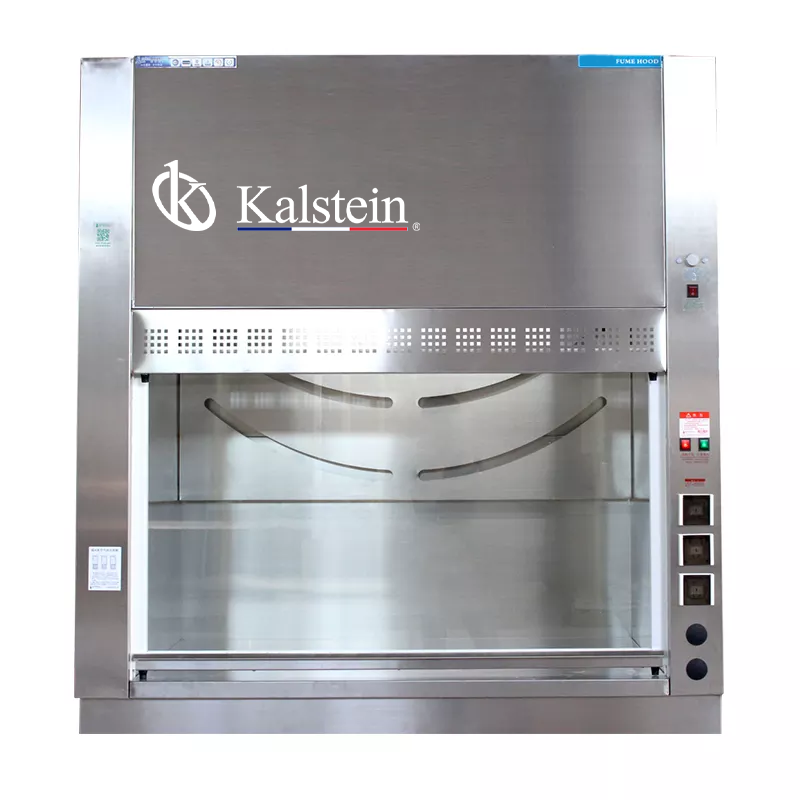

Name: Laboratory Fume Hood,acid and alkali resistance Fume Cupboard Hospital Laboratory equipment YR05820 // YR05822
SKU: 60534
Availability: InStock

Manufacturer: Kalstein

Model

Clear

Add to quote

Description
Additional information

Front Panel
Liner and guide baffles 5mm thick anti melamine board
(Window) 5mm thick tempered glass
Laboratory dedicated PP Cup
Built.in drain pioe
Lower Side Plate
Lower back plate
Lower Movable floor
Built in axial fan, air collector and anti-corrosion hose
With wind regulator
Upper side panel (1.2mm thick galvanized steel plate, epoxy sprayed outiside)
Built in LED tube

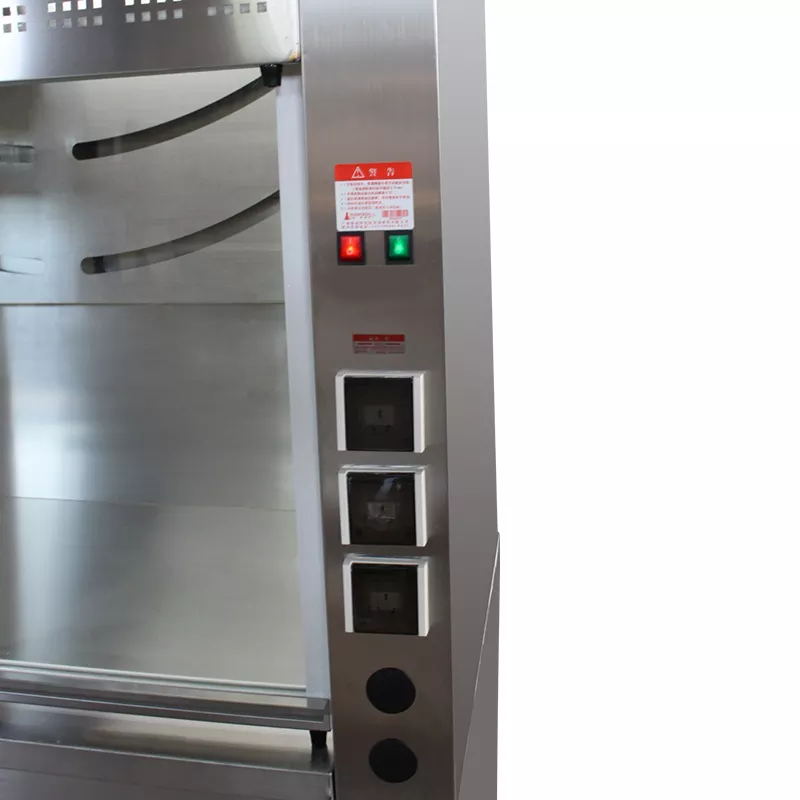

Fan and lamp switch
Multifunctional splash proof socket
12.7mm corrosion proof solid core, physical and chemical board mesa
Door frames and door panels
Adjusting foot

Technical Specifications

Model		YR05820	YR05821	YR05822
*External Size (WDH) (mm)*		12008001500	15008001500	18008001500
*Internal Size (WDH) (mm)*		9507001150	12507001150	15507001150
Work Surface Height		800mm
Max Opening of window		750mm
Air Velocity/Exhaust air volume		0.4-0.6m/s,800-1000m³/h
Noise		≤60dB
LED Lamp		10W*1
Blower		Built-in axial flow blower;Speed adjustable.
Front Window		Manual,5mm toughened glass,height adjustable.
Power Supply		AC220V±10%,50/60Hz;
Consumption		100W
Material	Main Body	1.2mm thickness stainless steel with epoxy resin powder coating.
	Inner Side	5mm thickness compact,resistant to strong acid and alkali.
	Work Table	Chemical resistant phenolic resin, thickness 12.7mm.
Standard Accessory		LED lamp,Built-in axial flow blower with speed adjustable.
		Waterproof socket*3
		3 meter PP duct,Diameter:250mm
Optional Accessory		Outer centrifugal blower(300W),resistant to strong acid,alkali.
Gross Weight (kg)		235	265	300
