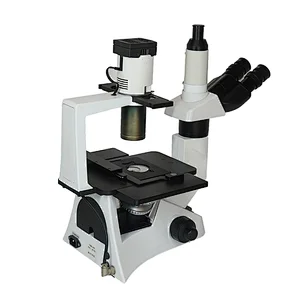

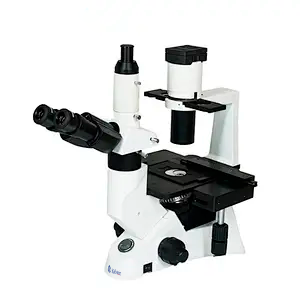

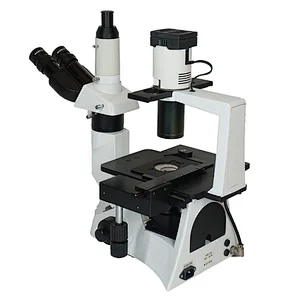

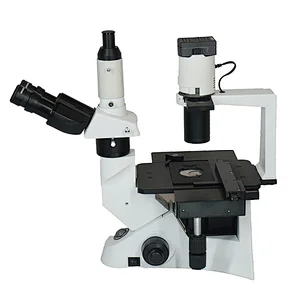

Inverted Trinocular Microscope YR0230

ManufacturerKalstein

Description

The Inverted Trinocular Microscope YR0230 is an advanced piece of laboratory equipment designed to enhance your biological research capabilities. This microscope is equipped with an Infinity Optical System and a Seidentopf Trinocular Head, providing a high-definition visualization with a comfortable 30° incline. Ideal for observing transparent and unfinished living specimens within culture bottles or utensils, the YR0230 microscope allows researchers to delve into the intricate structures of living specimens and liquid deposits with precision. With its extra wide field eyepiece (EW10x/22mm) and long working distance plan achromatic objectives, this microscope is crafted for excellence in both educational and professional research settings.

Price in the Market

The Inverted Trinocular Microscope YR0230 typically falls within a competitive price range in the market. For high-performance microscopes like this, you can expect the price to range between approximately 1700 USD and 2600 USD. This range showcases the investment required for a laboratory-grade microscope equipped with advanced features and optimal performance for professional and academic use.

Frequently Asked Questions

What are the main applications of the YR0230 microscope?
The YR0230 is primarily used for the observation of live cells, tissue samples, and other biological specimens. Its design allows for detailed viewing without disturbing the specimen, making it crucial for research in cell biology, oncology, and pharmacology.

Can the microscope be paired with a digital camera?
Yes, the YR0230 is equipped with a trinocular port, allowing it to be connected to a digital camera for capturing high-quality images and videos of the specimens.

Advantages and Disadvantages

Advantages: The microscope provides a wide viewing field and long working distance, essential for versatile applications, while the phase contrast goals improve the visualization of transparent specimens. Its ergonomic design ensures ease of use during extended periods of study.

Disadvantages: The price point may be higher than standard microscopes due to its advanced features. Additionally, the halogen lamp requires periodic replacement, which could incur additional costs over time.

Product Use in the Field

The YR0230 is widely used in laboratory settings for advanced research and teaching purposes. Its capability to maintain specimen viability while observing allows researchers to conduct dynamic studies on live cells over extended periods. The microscope’s precise focusing mechanisms make it a reliable tool for documenting cellular changes in response to various stimuli in real time.

Recommendations

To ensure optimal performance of the YR0230, consider integrating a camera adapter to capture images for documentation or presentation. Regular maintenance of the optical components and careful handling of the phase contrast equipment will ensure long-lasting use. For those exploring a purchase, the Kalstein Plus platform provides an easy way to request a quote or generate one automatically, streamlining your procurement process.

Features

  • Infinity Optical System for unmatched clarity.
  • Seidentopf Trinocular Head with 30° inclination for comfortable viewing.
  • Extra Wide Field Eyepiece for enhanced field of view.
  • Phase Contrast capabilities for intricate specimen analysis.
  • Adjustable coaxial coarse and fine focus for precision.
  • Adaptable stage with auxiliary components for versatile specimen handling.
  • External Kohler Illumination for consistent brightness.

Technical Specifications

Model YR0230
Optical System Infinity Optical System

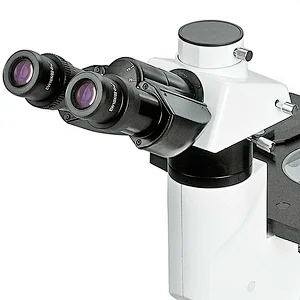

Head Seidentopf Trinocular Head, 30° Inclined,
Interpupillary 48~75mm, Diopter Adjustable
Eyepiece Extra Wide Field Eyepiece EW10x/22mm, High Eye point
Nosepiece Quintuple Nosepiece
Objective Infinity Plan LWD Achromatic Objective 4x/0.1, W.D.18mm
40x/0.6, W.D.2.6mm,Cover Glass 1.2mm
Infinity Plan Phase Contrast Achromatic Objective PH10x/0.25, W.D.10mm
PH20x/0.40, W.D.5.1mm
Focusing Coaxial Coarse & Fine Adjustment, Coarse Stroke 37.7mm Per Rotation, Fine Stroke 0.2mm Per
Rotation
Working Stage Plain Stage 160*250mm
–Glass Insert Plate
–Auxiliary Stage 70*180mm

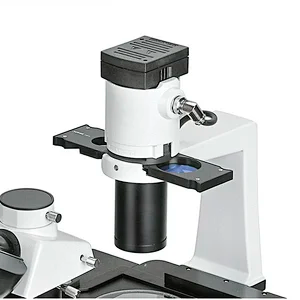

Condenser ELWD Condenser N.A.0.3, Long Working Distance 72mm, Up to 150mm Without Condenser
Phase Contrast –Centering Telescope, Tube Dia.30mm
–Phase Contrast Slide, 2 Holes For 10x-20x Objective
Filter Green, Blue, Ground Glass, Dia.45mm
Illumination External Kohler Illumination, Halogen Lamp 6V30W, Brightness Adjustable
Adapter Eyepiece Adapter Dia.23.2mm
Inverted Laboratory Biological Microscope Optional Accessories
Objective Infinity Plan LWD Achromatic Objective 10x/0.25,W.D.10mm YR0230-op1
20x/0.4,W.D.5.1mm YR0230-op2
Phase Contrast Infinity Plan Phase Contrast Achromatic Objective PH40x/0.6,W.D.0.35mm YR0230-op3
Phase Contrast Slide, 3 Holes For 10x-20x-40x Objective YR0230-op4
Working Stage Attachable Mechanical Stage, X-Y Coaxial Control, Moving Range 120*78mm YR0230-op5
Ergonomic Stage Knob’s Height & Position Along Y-Axis Movable To Where It
Is Most Comfortable, Tightness Adjustable
Terasaki Holder, Inner Holding Size 56x88mm YR0230-op6
Petri Dish Holder Dia.38mm YR0230-op7
Slide Glass Holder Dia.54mm YR0230-op8
Slide Glass Holder Dia.90mm YR0230-op9
Adapter Photo Adapter YR0230-op10
C-Mount 1.0x YR0230-op11
C-Mount 0.45x YR0230-op12
Fluorescent Fluorescent Attachment YR0230-op13

Additional information

Weight 15,5 kg
Dimensions 46,8 × 39,7 × 66,5 cm
