Description

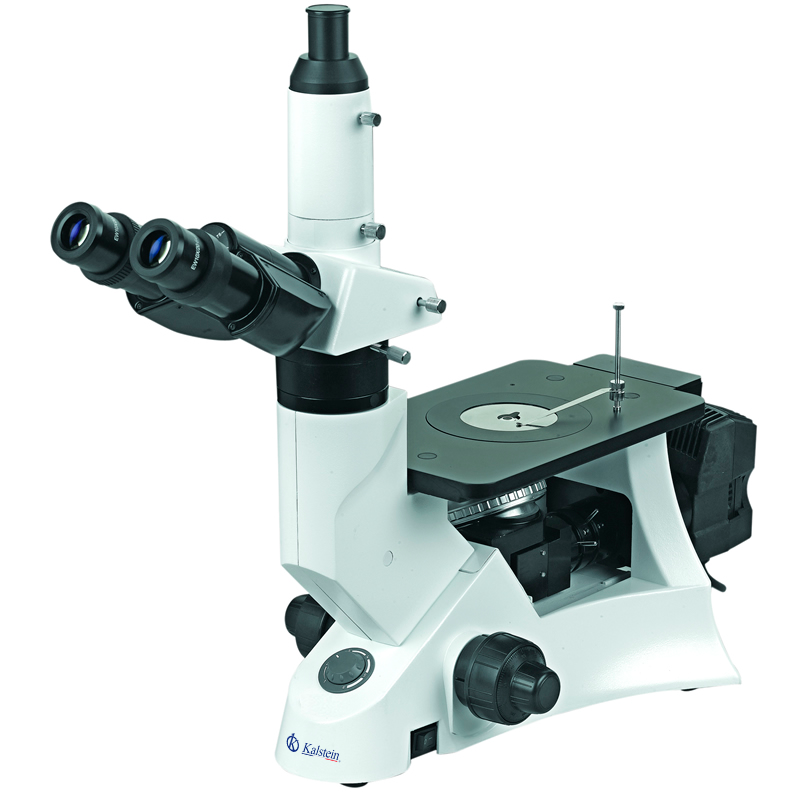

The Inverted Metallurgical Microscope YR0258 stands out with its stable support structure and advanced stage design, making it a preferred choice for laboratories and institutes. This state-of-the-art microscope uses an infinity optical system to deliver superior image quality crucial for identifying metal structures and other materials. It features a Seidentopf trinocular head with diopter adjustments, ensuring comfortable use over extended periods. The inclusion of a Kohler 6V30W external lighting halogen lamp allows for brightness adjustments according to user needs.
Market Price
The Inverted Metallurgical Microscope YR0258 is an advanced piece of equipment, and its market price typically ranges between $2000 to $2800 USD, reflecting its high precision and robust design. This range indicates the investment required for obtaining high-quality imaging and analysis capabilities inherent to this microscope.
Frequently Asked Questions
- What is an inverted microscope used for? Inverted microscopes are primarily used in laboratories for observing metal and other material structures, with the viewing ports below the sample stage.
- How does the Kohler illumination system benefit users? Kohler illumination provides even lighting across the field of view, enhancing visibility and reducing glare, which is crucial for detailed analyses.
Advantages and Disadvantages
The principal advantages of the YR0258 include its high-quality infinity optical system and robust construction, which ensure durability and superior image clarity. However, the need for a stable platform and controlled environment may represent a limitation in some experimental setups.
Field Use of the Product
The YR0258 is ideal for use in metallurgical analysis, inspecting microstructures of metal alloys. Its trinocular head supports both observation and documentation, making it an invaluable tool for research and quality control laboratories.
Recommendations
To maximize the performance of the YR0258, ensure that the microscope is regularly cleaned and maintained. Proper storage and handling will prolong its lifespan and ensure consistent optical performance. For purchasing inquiries, consider using the Kalstein Plus platform for automatic quotations.
Key Features
- Infinite optical system
- Extra wide field eyepiece EW10x/20mm
- Infinity Plan Metallurgical Coverless achromatic objectives
- Kohler 6V30W halogen lamp with adjustable brightness
Technical Specifications
Model | YR0258 | ||
Optical System | Infinity Optical System | ||

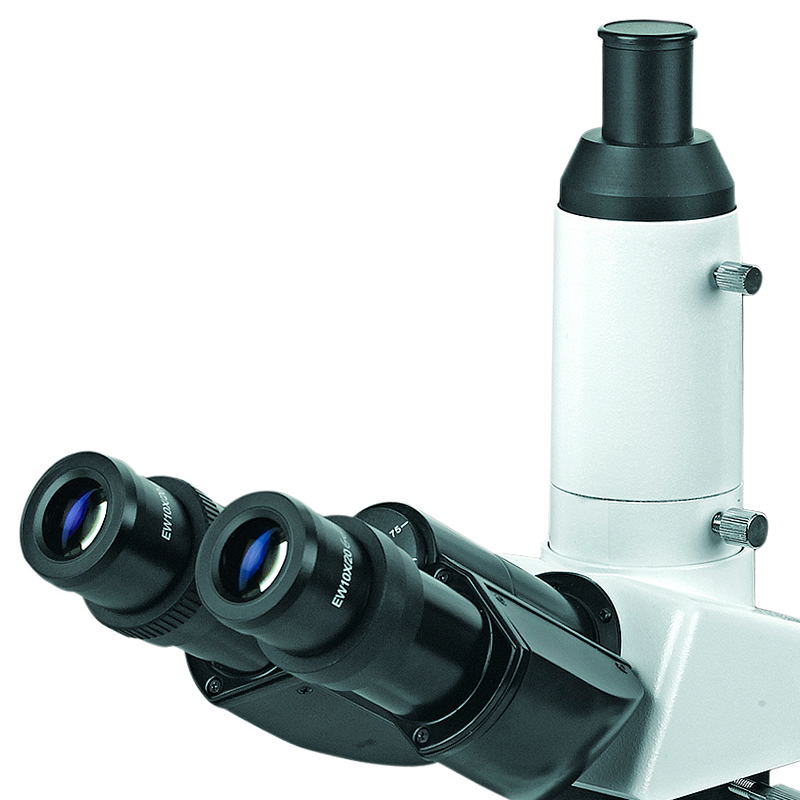

Head | Seidentopf Trinocular Head, 30° Inclined, Interpupillary 48~75mm, Diopter Adjustable | ||
Eyepiece | Extra Wide Field Eyepiece EW10x/20mm, High Eyepoint | ||
Nosepiece | Quintuple Nosepiece | ||
Objective | Infinity Plan Metallurgical Coverless Achromatic Objective | 4x/0.1/∞/-, W.D.17.3mm | |
10x/0.25/∞/-,W.D.10.2mm | |||
20x/0.4/∞/-,W.D.5.1mm | |||
40x/0.65/∞/-, W.D.0.52mm | |||

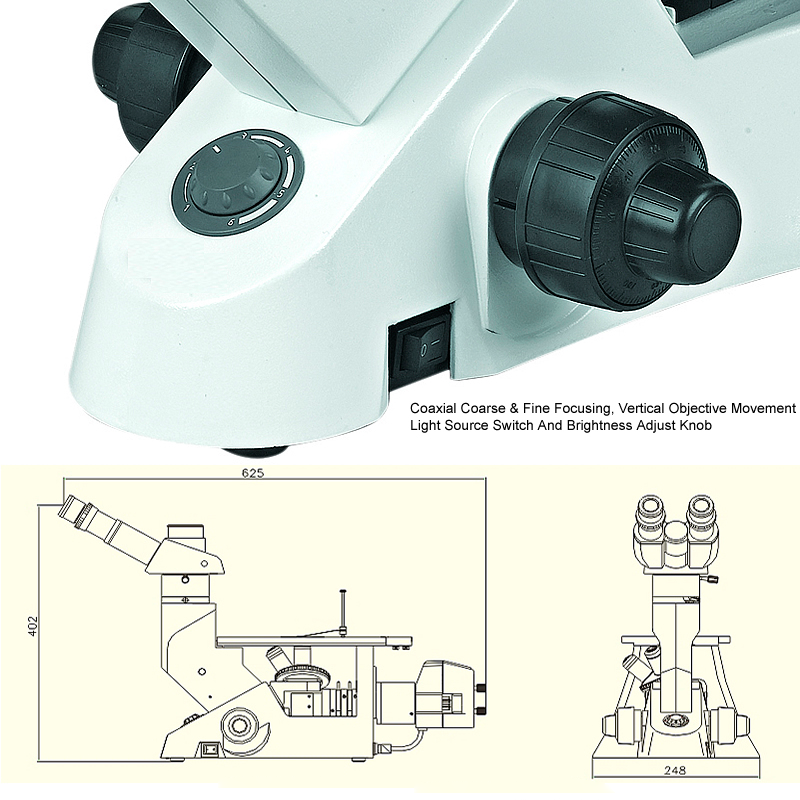

Focusing | Coaxial Coarse & Fine Adjustment, Coarse Stroke 37.7mm Per Rotation, Fine Stroke 0.2mm Per Rotation | ||

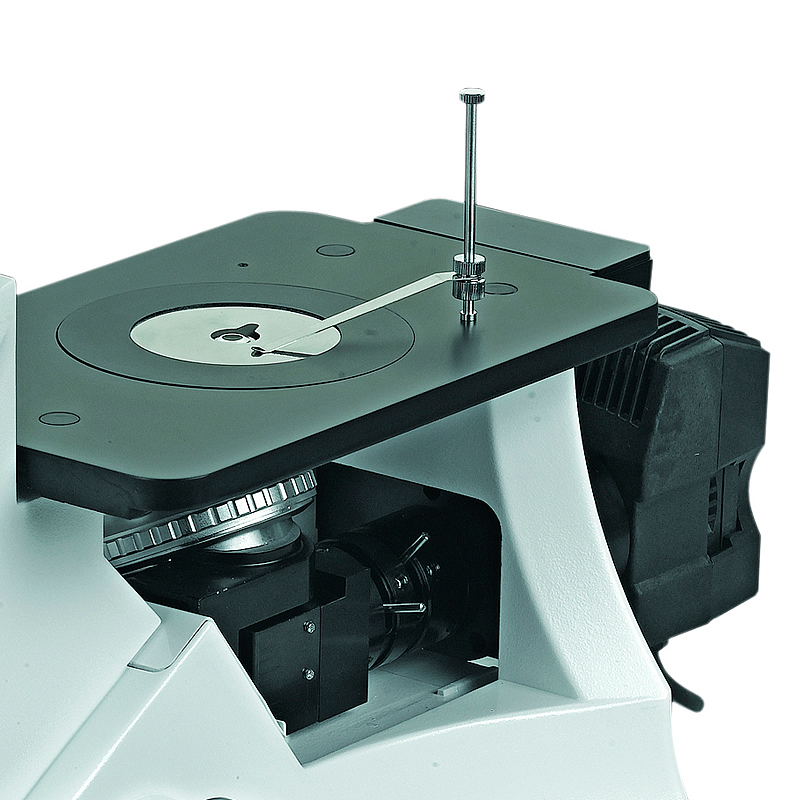

Working Stage | Plain Stage 160*250mm With Slide Clips | ||
Polarizing | Polarizing Attachment | ||
Filter | Green, Blue, Yellow, Ground Glass, Dia.45mm | ||
Illumination | External Kohler Illumination, Halogen Lamp 6V30W, Brightness Adjustable | ||
Optional Accessories | |||
Objective | Infinity Plan Metallurgical Coverless Achromatic Objective | 5x/0.12/∞/-, W.D.15.4mm | YR0258-op1 |
50x/0.75/∞/-, W.D.0.32mm | YR0258-op2 | ||
80x/0.9/∞/-, W.D.0.20mm | YR0258-op3 | ||
100x/0.9/∞/0, W.D.0.7mm | YR0258-op4 | ||
Working Stage | Attachable Mechanical Stage, X-Y Coaxial Control, Moving Range 120*78mm | YR0258-op5 | |
Auxiliary Stage 70*180mm | YR0258-op6 | ||
Adapter | Photo Adapter | YR0258-op7 | |
C-Mount 1.0x | YR0258-op8 | ||
C-Mount 0.5x | YR0258-op9 |
