Description

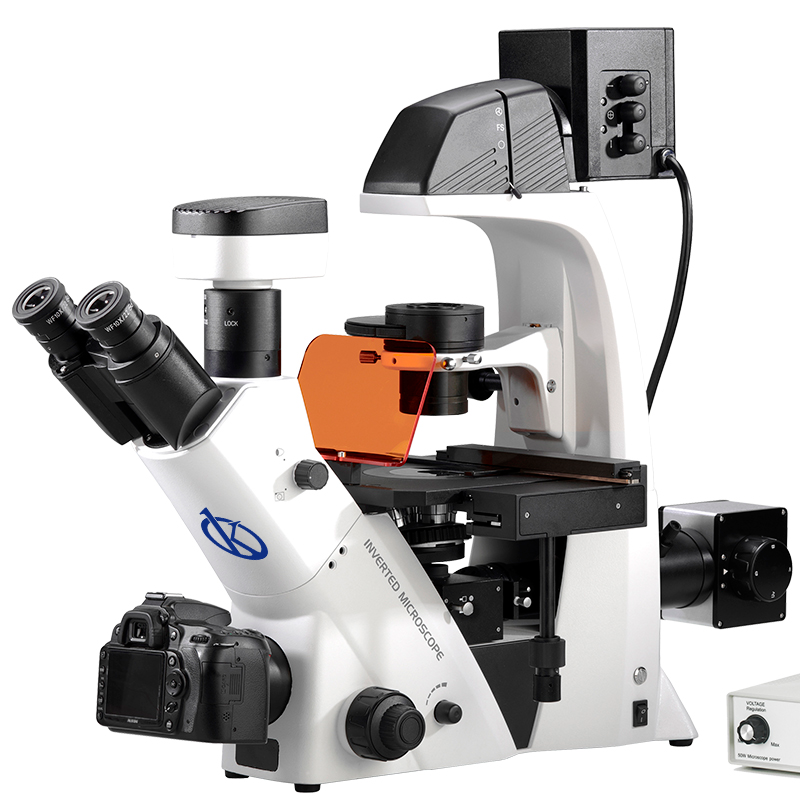

The Inverted LED Fluorescent Microscope YR05791 – YR05792 is a state-of-the-art instrument designed for advanced microscopy needs. It features a Seidentopf trinocular head with a 45° inclination, an interpupillary distance adjustable from 48 to 76 mm, and a light split switch mechanism for enhanced viewing versatility. This microscope is equipped with an interchangeable condenser with phase contrast capabilities and a high-quality LWD infinity plan objective system, making it perfect for detailed fluorescent imaging. With a robust mechanical stage and automatic power-saving features, this microscope is engineered to deliver exceptional performance in laboratory settings.
Market Price
The market price for advanced fluorescent microscopes of this caliber can vary significantly based on specific specifications and additional features. Typically, the price range is between USD 7000 to 7800. This range provides a general expectation, although actual pricing can differ based on supplier and region. For a precise quote, it’s advisable to contact the supplier directly or use the Kalstein Plus platform for an instant online quotation.
Frequently Asked Questions
- What type of light source does this microscope use?
The microscope uses a 5W LED for fluorescence excitation and a halogen lamp for brightfield illumination. - Can this microscope be connected to a digital camera?
Yes, it includes a photo adapter that supports Canon SLR digital cameras. - Is the condenser adjustable?
Yes, the condenser is adjustable and includes a phase contrast feature.
Advantages and Disadvantages
This microscope offers several advantages, including high-quality optics, flexible light path options, and an automatic power-off system for energy efficiency. However, it might require a higher initial investment compared to simpler models, which could be a consideration for budget-constrained laboratories.
Product Use in the Field
In practical applications, the Inverted LED Fluorescent Microscope YR05791 – YR05792 excels in cell culture observation, fluorescence detection, and phase contrast microscopy. Its ergonomic design and precision optics contribute to efficiency and accuracy in research laboratories, hospitals, and academic institutions.
Recommendations
To maximize your investment in this microscope, regular maintenance and calibration are recommended. Users should also take advantage of the automated power-off feature to conserve energy when the device is not in active use. For any technical support or service, utilize authorized service centers to maintain warranty validity.
Features

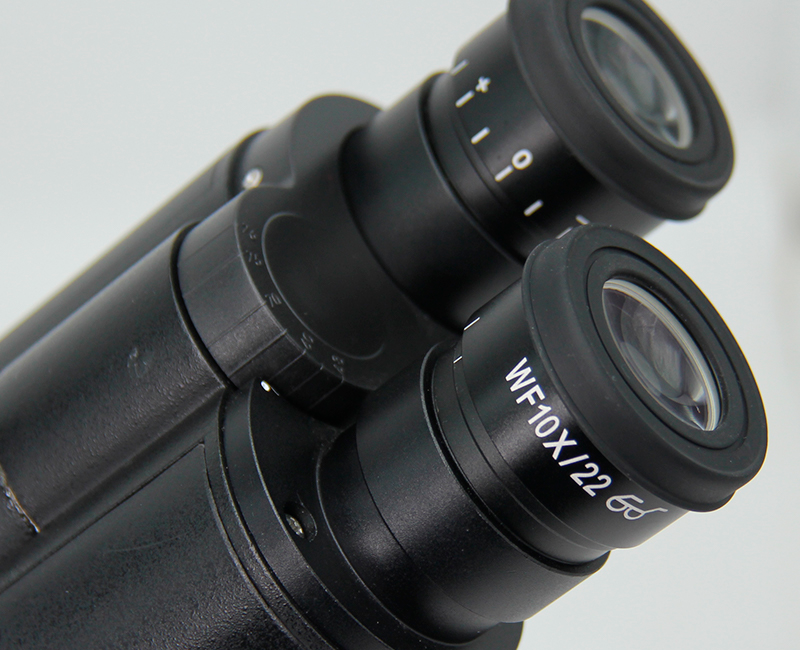

- Seidentopf Trinocular Head Inclined 45°, Interpupillary Distance 48~76mm
- Koehler Illumination with Halogen 12V/50W

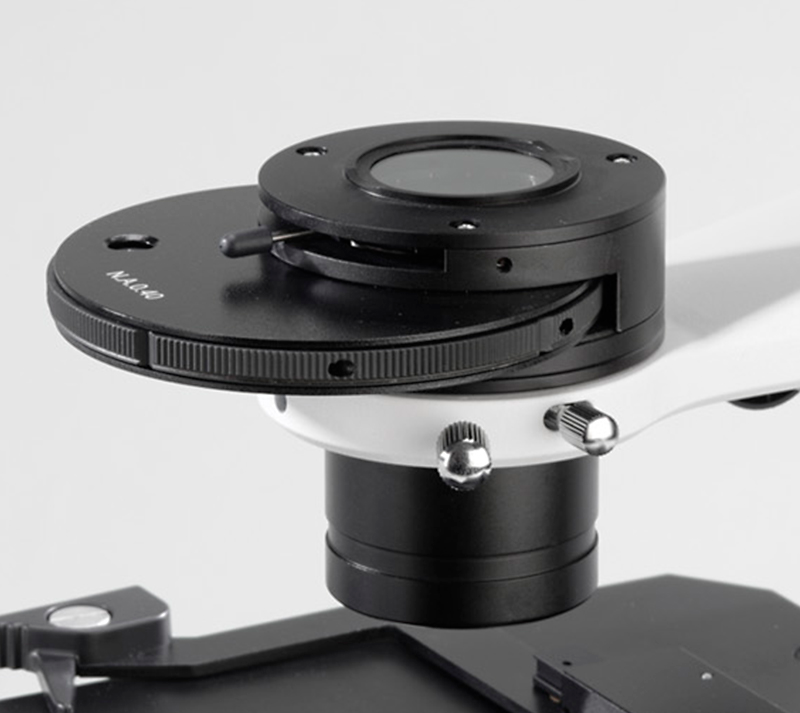

- Rotating Disc Phase Contrast Condenser
- Long Working Distance with Adjustable Condenser
- LWD Infinity Plan Fluorescent Objectives in multiple magnifications
- Mechanical Stage with ample dimensions and functionality
- ECO Auto Power Off System for energy saving
- Photo Adapter for Canon SLR Digital Camera integration

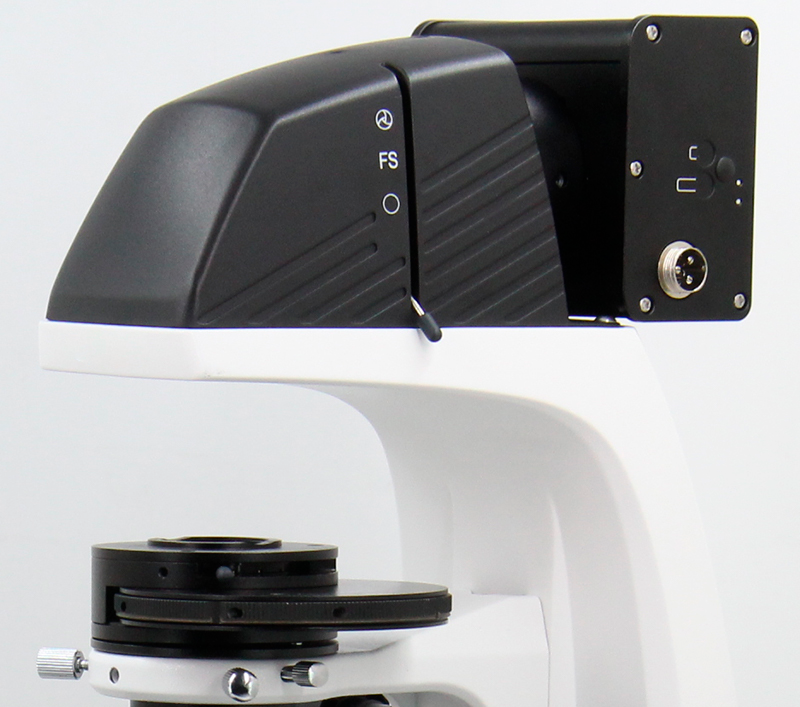

- Epi Fluorescence Illumination with multiple filter options
Technical Specifications
Model | YR05791 | YR05792 |
Features | Infinity DualPhoto Port ECO (Auto Power Off) |
|
Optical System | Infinity Plan | |
Head Type | Seidentopf Trinocular | |
Head Interpupillary | 48~76mm | |

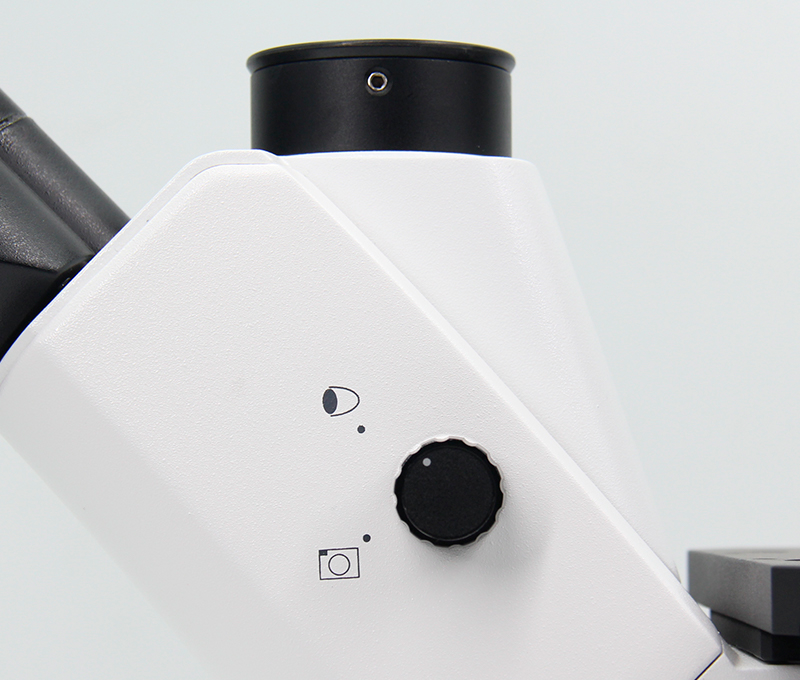

Head Light Path | E100:P0/E20:P80 | |
Eyepiece Features |
Diopter Adjustable | |
Eyepiece Diameter |
30.0mm | |
Nosepiece Holes |
5 holes | |
Objective Features |
LWD | |
Objective Type |
Infinity Plan Phase Contrast |
|
Working Stage Features |
Size ≥140x140mm | |
Working Stage Type |
Fixed + Attachable | |
Focusing Features |
Tension Adjustable | |
Condenser Features |
Slor for PH Slide | |
Condenser Type |
Phase Contrast | |
Condenser N.A | 0.4 | |
Light Source Features |
Kohler Illumination LED 5W Halogen 30W Transmit & Reflect |
|
Light Source Type |
Halogen Fluorescent | |
Video Adapter | C-Mount 0.3x | |
Fluorescent Band | 3 Bands | – |
