Description

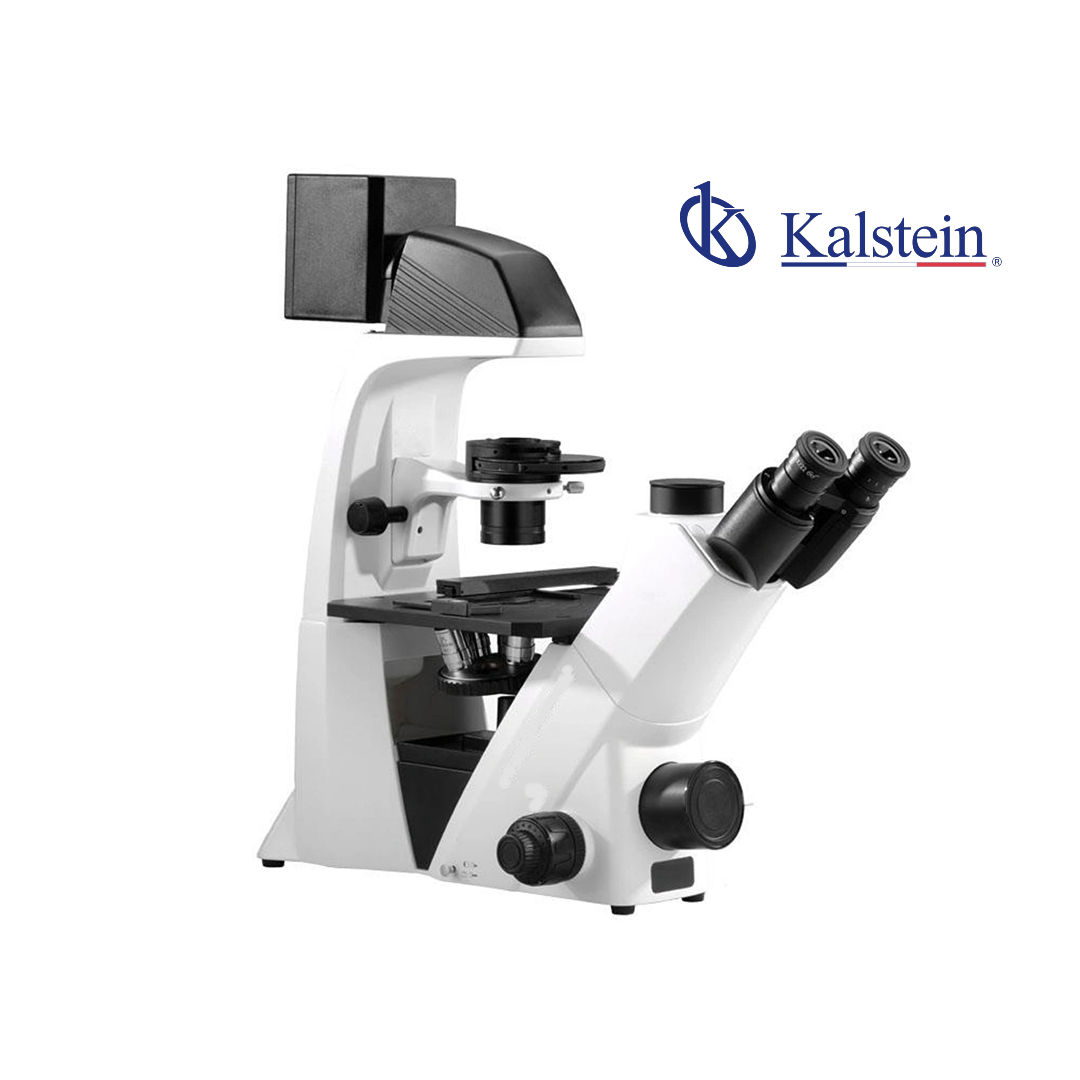

The Inverted Biological Microscope YR06682 is a high-precision research instrument specifically designed for microbiology laboratories, cell study centers, and specialized clinics. Its inverted configuration allows for the optimal observation of living cultures directly inside large containers such as Petri dishes and culture flasks.

This model stands out for its unique multi-channel system, enabling the simultaneous use of eyepieces, a digital camera, and an SLR camera body. Ideal for professionals requiring high-precision documentation without interrupting observation, it offers a robust and scalable solution for the most demanding research environments.

Design and Technology (or Functionality)

The YR06682 integrates innovative technologies to optimize optical performance and ergonomics:

• Dual/Triple Channel System: Enables simultaneous visualization and recording. Light can be switched between eyepieces (100% or 20%) and camera ports (0% or 80%), with a dedicated 100% light port for SLR cameras.
• ECO Technology: An intelligent auto-off system turns off the illumination after 10 minutes of inactivity and restarts instantly upon detecting the user’s presence.
• High-Quality Optics: Equipped with Semi-APO LWD Infinity Plan objectives, compatible with both brightfield and phase contrast observation, offering exceptional clarity.
• Powerful Koehler Illumination: Utilizes a 12V50W halogen lamp for uniform illumination, which is essential for advanced contrast techniques.
• Fluorescence Scalability: The microscope can be upgraded at any time with the A16.2614 fluorescence accessory.

Frequently Asked Questions (FAQ)

1. Can I use a digital camera and an SLR camera at the same time? Yes, thanks to the dual photo and video channel support, you can view the sample through the eyepiece while capturing images via a digital camera and an SLR camera simultaneously.
2. What is the maximum working distance of this microscope? The working distance is 72 mm with the condenser installed, but it can reach up to 195 mm by removing the condenser for very tall culture flasks.
3. Can the ECO function be deactivated? Yes, although it is designed to save energy and extend lamp life, the ECO auto-off function can be manually turned off.

Advantages and Disadvantages

Advantages:

• Multi-Output Visualization: Three simultaneous image outputs.
• Semi-APO Objectives: Superior color correction and increased sharpness.
• Energy Control: The ECO system reduces consumption and hardware wear.
• Stage Versatility: Large mechanical surface with holders for various culture dish diameters.

Disadvantages:

• High Weight: With a net weight of 13.5 kg, it requires a stable and permanent installation.
• Footprint: Its large packaging dimensions reflect a bulky device on the workstation.

Field Use and Recommendations

This equipment is perfectly suited for IVF clinics, cell biology research laboratories, and university pathology departments. It excels in the observation of living cells requiring phase contrast techniques.

Operational Tips:

• Use the 4-hole rotating disk phase contrast condenser to quickly alternate between different phase magnifications (10x, 20x, 40x).
• For SLR photography, use the included 1.7x adapter to optimize the field of view for full-frame sensors.
