Description

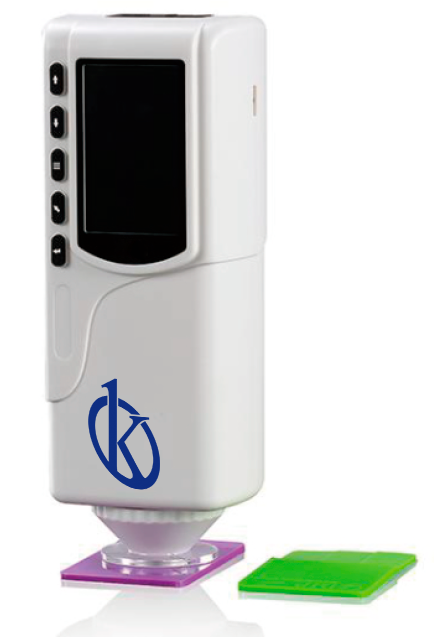

ln response to the market demand for low price and high cost performance products, Kalstein has developed the YR05514 economic colorimeter, which is a higher cost-effective model. With the advantages of high precision, high performance and low price, this model has been widely used in food, chemical industry, electronics, automobile, cosmetics, food and other fields .
Product Features
- High performance and low price.
- Repeatability: ΔE ≤ 0.03.
- Double locating: illuminating locating and precise cross locating.
- Equipped with rechargeable Li-ion Battery, no need to purchase battery repeatedly.
- 4mm measuring aperture, portable structure, suitable for more measuring occasions.
- White appearance, color box packaging, easy to transport.
- Built-in white plate parameters, no need to do calibration.
- Directly use after power on, no need to connect with computer.
YR05514 Colorimeter is an economical and practical model, user-friendly interface design is easy to learn and operate. Illuminating and cross double locating functions make measurement more precise. Built-in white board makes measurement easier. At the same time, CQCS high-end color quality management software equppied with instrument can easily help you manage your color database.
Application industry
Colorimeter can easily achieve accurate color transmission, also can be used as a measuring equipment for precise color matching system. It’s widely used in traffic signs, plastics, electronics, painting, ink, textile and garment, printing and dyeing, printing paper and so on. With UV included, it can test fluorescent sample.
Technical Description
Model | YR05514 |
Illuminating/Viewing Geometry | 8° /D |
Standard | CIE No.15, GB/T 3978 |
Sensor | Silicon photodiode |
Measuring Aperture | 4mm |
Color Space | CIE LAB, Lch |
Observer | CIE 10° |
Illuminant | D65 |
Display Data | Colorimetric Value, Color Difference Value Storage |
Temperature | /Graph, PASS/FAIL Result, Color Offset |
Measuring Time | 1.5s |
Repeatability | ΔE* ab ≤ 0.03 (Average of 30 measurements of
Standard white Plate) |
Dimension | 205*67*80mm |
Errors Between each instrument | ΔE* ab 0.4 |
Weight | 400g |
Battery | rechargeable lithium-ion battery 3. 7V@ 3200Ah |
Lamp Life | 5 years, more than 1.6 million measurements |
Screen | TFT 2.8 inch (16:9) |
Interface | USB |
Storage | 100 Standards, 10000 Samples |
Operating Temperature | 0-40°C (32-104°F) |
Storage Temperature | -20 -50°C (-4-122°F) |
Optional Accessory | miniature thermal printer, powder test box |
