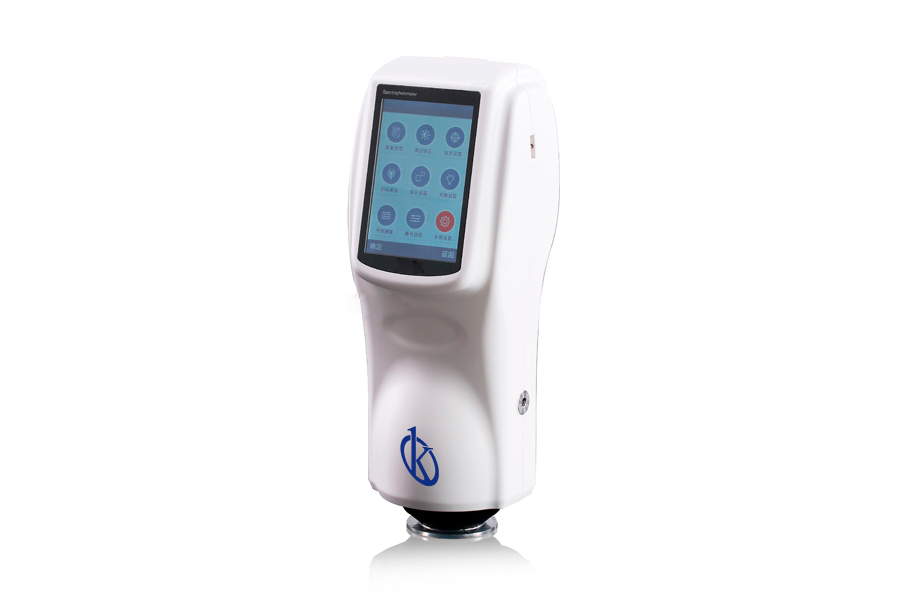

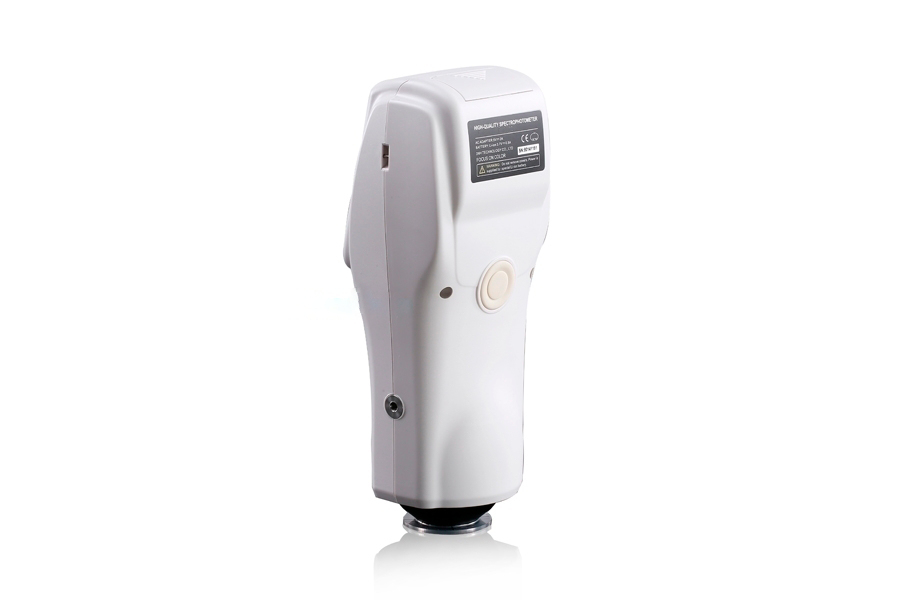

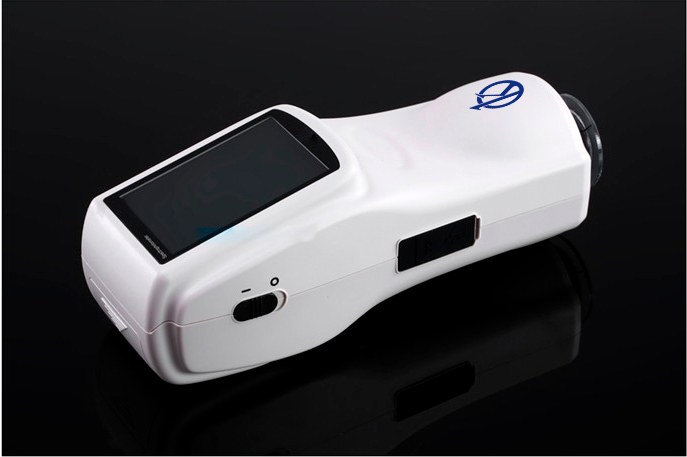

Handheld Color Spectrophotometer YR05496

ManufacturerKalstein

Description

The Handheld Color Spectrophotometer YR05496 is an innovative tool developed by Kalstein, known for its exceptional precision in color management across industries such as plastics, textiles, paints, food, and cosmetics. With a lightweight design of only 600 grams, this portable spectrophotometer features a 45/0 geometric optical structure in accordance with international standards like CIE No.15 and GB/T 3978. It operates within a wavelength range of 400 to 700 nm with an 8 mm aperture, achieving a remarkable DeltaE*ab accuracy index of 0.04. The YR05496’s 3.5-inch touchscreen and ergonomic design enhance usability, while the included SQC8 color management software expands its capabilities when connected to a PC, establishing it as a comprehensive solution for quality control.

Market Price

The average market price for the YR05496 spectrophotometer ranges from approximately $3,300 to $4,000 USD. This competitive pricing is justified by its ability to store up to 10,000 samples, making it a reliable choice for companies aiming to enhance their color control processes with high accuracy and efficiency. To explore personalized pricing options, you can request a quote or generate one effortlessly via Kalstein Plus, ensuring a straightforward and secure purchase process.

Frequently Asked Questions

  • What industries benefit most from the YR05496?
    This spectrophotometer is most beneficial for industries requiring precise color control, including plastics, paints, textiles, food products, and analysis of fluorescent samples.
  • Can the YR05496 connect to a PC?
    Yes, it includes sophisticated color management software that facilitates direct PC connection, optimizing data management and operational efficiency.
  • How extensive is the storage capacity?
    The device can store up to 1,000 standards and 10,000 samples, providing ample room for organized, detailed data collection.

Advantages and Disadvantages

The key advantages of the YR05496 include its superior accuracy (ΔE*ab of 0.04), portable and user-friendly design, and compliance with multiple international colorimetry standards. It supports simple data transfer via USB and RS232 connectivity. However, its limitation to the visible wavelength range (400-700 nm) might not suit applications needing a broader spectrum.

Field Applications

Highly utilized in sectors where color consistency is vital, the YR05496 shines in quality control for manufacturing processes involving plastics, paints, and textiles. Its precise, quick measurements, whether on production lines or in lab environments, ensure dependable results. The advanced software powers real-time color simulation and data management, supporting consistent product quality.

Recommendations

For optimal performance, it’s crucial to regularly calibrate the YR05496 and store it in a clean, dust-free environment. Its lithium-ion battery supports up to 5,000 measurements over 8 hours, meaning recharging is key to maintaining availability. To learn how the Portable Color Spectrophotometer YR05496 can elevate your color control accuracy and efficiency, request a personalized quote or instantly generate one with Kalstein Plus.

Features

  • Handheld, portable design.
  • 45/0 geometric optical structure.
  • Wavelength range: 400 to 700 nm.
  • DeltaE*ab accuracy index: 0.04.
  • Storage for up to 10,000 samples.
  • 3.5-inch TFT capacitive touchscreen.
  • SQC8 color management software for PC connectivity.

Technical Specifications

Model

YR05496

Illumination/observation system

45/0 method (45 ring-shaped illumination, vertical viewing)

Comply with CIE No.15,GB/T 3978.

Integrating sphere Size

Φ58mm

Light Source

combined LED sources

Sensor

Silicon photodiode array

Wavelength range

400~700nm

Wavelength pitch

10nm

Reflectance range

0~100%

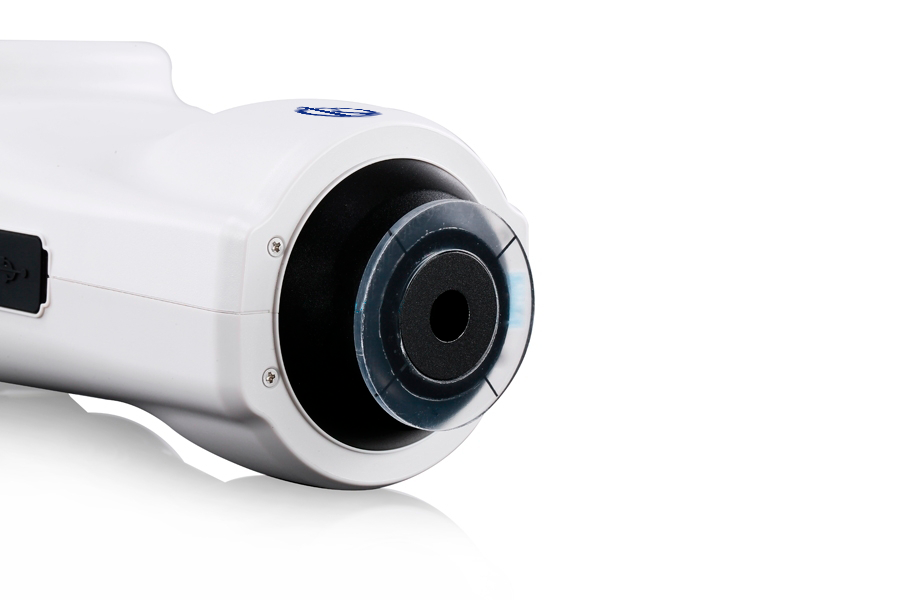

Measuring Aperture

Φ8mm

Color Space

CIE LAB, XYZ, Yxy, LCh, CIE LUV

Color difference Formula

ΔE*ab, ΔE*uv, ΔE*94, ΔE*cmc(2:1), ΔE*cmc(1:1), ΔE*00

Other Chromaticity Data

Whiteness – WI (ASTM E313, CIE/ISO, AATCC, Hunter),

Yellowness-YI (ASTM D1925, ASTM 313),

TI (ASTM E313, CIE/ISO),

Metamerism Index (Mt)

Colour Stain, Color Fastness, Color Strength, Opacity

Observer

2°/10°

Illuminant

D65, A, C, D50, D55, D75, F2, F6, F7, F8, F10, F11, F12

Display Data

Spectral Value/Graph, Colorimetric Value, Color Difference Value/Graph, PASS/FAIL Result, Color Offset, Color Simulation

Measurement Time

1.5s

Repeatability

Spectral Reflectance: standard deviation within 0.1% (400~700nm: within 0.2%)

Colorimetric Value: Standard deviation within DeltaE*ab 0.04 (Measurement conditions: white calibration plate measured 30 times at 5 seconds intervals after white calibration was performed.)

Inter Instrument Agreement

Within DeltaE*ab 0.2 (Average for 12 BCRA Series II color tiles)

Dimension

L*W*H=90*77*230mm

Weight

600g

Battery

Li-ion battery. 5000 times within 8 hours.

Lamp Life

5 years, more than 1.6 million measurements

Display Screen

TFT 3.5 inch, Capacitive Touch Screen

Interface

USB/RS-232

Data Memory

1000 Standards, 10000 Samples

Operating Temperature

0~40℃ (32~104°F)

Storage Temperature

-20~50℃ (-4~122°F)

Standard Accessory

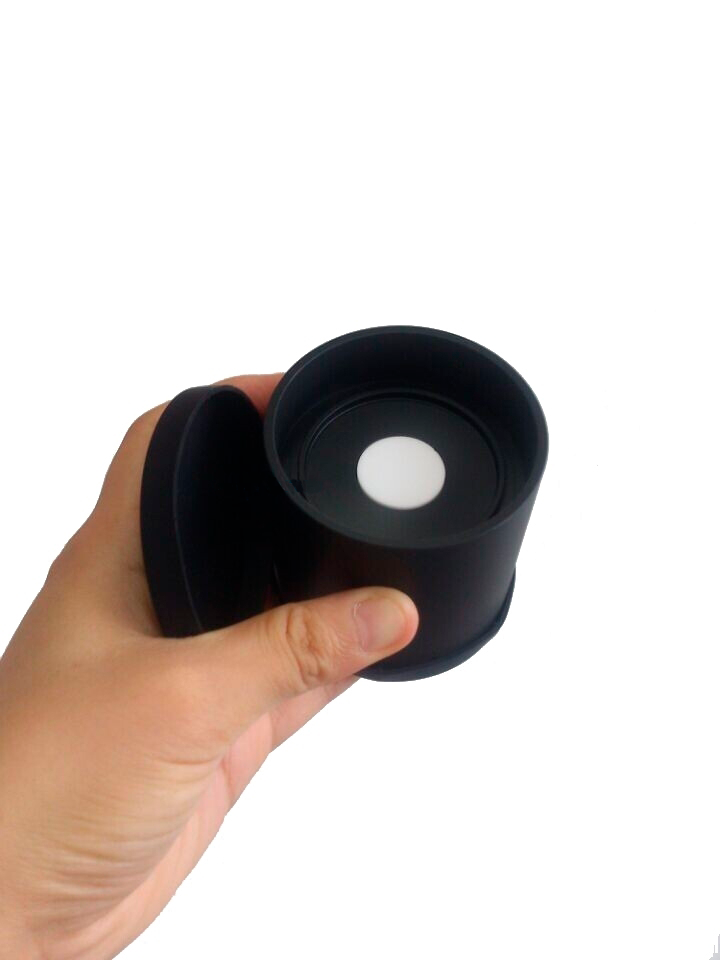

Power Adapter, Li-ion Battery, Operating Instruction, CD-ROM (containing management software), Data Line, White and Black Calibration Cavity, Protective Cover and Wrist Strap

Optional Accessory

Micro Printer, Powder Test Box

Notes

The specifications are subject to change without notice.

Additional information

Weight 3 kg
Dimensions 34 × 13 × 29 cm
