Description

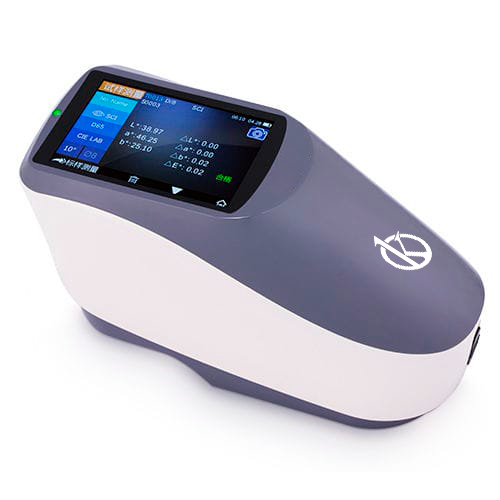

The UV Grid Spectrophotometer with 8 mm and 4 mm Apertures YR05504 from Kalstein is a high-precision device designed to meet the most demanding standards in color analysis for laboratory and industrial applications. With a 45/0 optical system, featuring ring-shaped illumination at 45° and vertical observation at 0°, this spectrophotometer ensures consistent and accurate results in color transmission. It is compatible with a wide range of international standards, including CIE No.15, ISO7724-1, and ASTM E1164, and its dual aperture allows for customizable measurements to meet diverse colorimetry needs in sectors such as paints, textiles, printing, and signage. Equipped with a dual-matrix CMOS detector, a combined LED light source, and a 3.5-inch touchscreen LCD, the YR05504 is an advanced, easy-to-use, and durable tool.
Market Price
The YR05504 spectrophotometer is available on the market at an approximate price range of $4,690 to $4,700 USD, depending on additional accessories and specific configurations required by the client. This price makes the YR05504 an attractive investment for companies looking to improve color control precision and optimize their production processes. If you need a quote tailored to your project specifications, you can request one or generate it automatically through Kalstein Plus, quickly and easily.
Frequently Asked Questions
- What type of applications is the YR05504 suitable for?
This spectrophotometer is ideal for quality control in industries such as paints, textiles, printing, and for measuring color in fluorescent samples and traffic signals. - Does the device include Bluetooth connectivity?
Yes, the YR05504 has Bluetooth 4.0 and USB connectivity, making it easy to transfer data and integrate it into various analysis systems. - What is the lifespan of the light source?
The combined LED light source, which includes UV, has an approximate lifespan of 5 years, allowing for over 3 million measurements.
Advantages and Disadvantages
The main advantages of the YR05504 include its high precision (with a standard deviation of 0.08% in spectral reflectance), its flexibility with 8 mm and 4 mm apertures, and its compatibility with numerous international colorimetry standards. Additionally, its ergonomic design and intuitive interface make it easy and comfortable for users to operate. As a disadvantage, the spectrophotometer is limited to a wavelength range of 400-700 nm, which may be restrictive for applications requiring analysis beyond the visible spectrum.
Field Applications
The YR05504 spectrophotometer is widely used for color analysis in sectors such as textile production, printing, and paint manufacturing. Its ability to measure brightness factors and color coordinates in traffic signals and reflective films makes it essential for ensuring color quality and consistency. Its portability and precision also make it an ideal tool for both laboratory use and quality control on production lines.
Recommendations
To ensure optimal performance of the YR05504, it is important to keep the device in a clean environment and perform periodic calibrations to maximize measurement accuracy. Its lithium-ion battery allows for up to 5,000 measurements over 8 hours, so regular recharging is recommended. Request a personalized quote or quickly generate your own quote on Kalstein Plus and discover how the UV Grid Spectrophotometer with 8 mm and 4 mm Apertures YR05504 can improve color control in your industry, optimizing efficiency and precision in every process.
Technical Specifications
| Model | YR05504 |
| Illumination/Observation system | 45/0(45 ring-shaped illumination, vertical viewing);
Comply with CIE No.15，GB/T 3978,GB 2893,GB/T 18833,ISO7724-1,ASTM E1164,DIN5033 Teil7,GB 2893、GB/T 18833 |
| Features | High accruacy spectrophotometer is used for accurate analysis and transmission of laboratory color.Apply in paints, inks, textiles, garments, printing and dyeing, printing etc industries for color transfer and quality control, also for Fluorescence sample color measurement.
It is used to measure the brightness factor and color coordinates of traffic signs, markings and reflective films. It contains GB 2893 and GB/T 18833 standard colors. It can customize the rectangular tolerance of polygons manually. |
| Integrating Sphere Size | Φ48mm |
| Light Source | Combined LED Light, UV Light |
| Spectral separation device | Concave Grating |
| Detector | 256 Image Element Double Array CMOS Image Sensor |
| Wavelength Range | 400~700nm |
| Wavelength Pitch | 10nm |
| Half Bandwidth | 10nm |
| Reflectance Range | 0~200% |
| Measuring Aperture | MAV:Φ8mm/Φ10mm；SAV:Φ4mm/Φ5mm |
| Color Space | CIE LAB,XYZ,Yxy,LCh,CIE LUV,HunterLAB,βxy |
| Color Difference Formula | ΔE*ab,ΔE*uv,ΔE*94,ΔE*cmc(2:1),ΔE*cmc(1:1),ΔE*00,ΔE（Hunter） |
| Other Colorimetric Index | WI(ASTM E313，CIE/ISO,AATCC,Hunter)，
YI(ASTM D1925，ASTM 313), MI (Metamerism Index), Staining Fastness, Color Fastness, Color Strength, Opacity,Supporting Colorimetric Polygon Tolerance |
| Observer Angle | 2°/10° |
| Illuminant | D65,A,C,D50,D55,D75,F1,F2(CWF),F3,F4，F5，F6,F7(DLF),F8,F9，F10(TPL5),F11(TL84),F12(TL83/U30) |
| Display Data | Spectrogram/Values, Chromaticity Values, Color Difference Values/Graph, Pass/Fail Result, Color Offset |
| Measurement Time | About 1.5s |
| Repeatability | Spectral reflectance: MAV,Standard deviation within 0.08% (400 nm to 700 nm: within 0.18%)
Chromaticity value:within ΔE*ab 0.03 ( When a white calibration plate is measured 30 times at 5 second intervals after white calibration) |
| Inter-instrument Error | Within ΔE*ab 0.15(Average for 12 BCRA Series II color tiles) |
| Measurement mode | Single Measurement, Average Measurement(2-99) |
| Size(L*W*H) | 184*77*105mm |
| Weight | About 600g |
| Power source | Li-ion battery. 5000 measurements within 8 hours |
| Illuminant Life Span | 5 years, more than 3 million times measurements |
| Display | 3.5-inch TFT color LCD, Capacitive Touch Screen |
| Interface | USB, Bluetooth 4.0 |
| Data memory | Standard 1000 Pcs, Sample 30000 Pcs |
| Language | Chinese,English |
| Working Environment | Temperature: 0~40℃; Humidity: 0~85% (No Condensation);altitude: less than 2000 m |
| Storage Environment | Temperature: -20~50℃; Humidity: 0~85% (No Condensation) |
| Standard Accessory | Power Adapter, USB Cable, Built-in li-ion battery, User Manual, software(download from the website)White and Black Calibration Board, Protective Cover. |
| Optional Accessory | Micro Printer, Powder Test Box, Universal test components, Locating Plate |
| Notes: The specifications are subject to change without notice. | |
