Description
Magnetic stirrers are often used in chemistry and biology. They are preferred over gear-driven motorized stirrers because they are quieter, more efficient, and have no moving external parts to break or wear out (other than the simple bar magnet itself). Because of its small size, a stirring bar is more easily cleaned and sterilized than other stirring devices. They do not require lubricants which could contaminate the reaction vessel and the product. They can be used inside hermetically closed vessels or systems, without the need for complicated rotary seals. Magnetic stirrers may also include a hot plate or some other means for heating the liquid.
Product Features
- Very compact and simple to operate
- Digital Display temperature and speed, Heating temperature: Rt-380 Degree and mixing speed :100-1800 RPM
- Heat and corrosion resistant aluminium alloy housing for durability
- Ceramic coated aluminum heating plate for great heat distribution and corrosion resistance
- Specially designed housing prevents spill from damaging the electronic components inside
- Secondary heat insulation plate prevents heat loss and eliminates heat damage to electronic components
- Adjustable temperature and rotation speed
Technical Specification

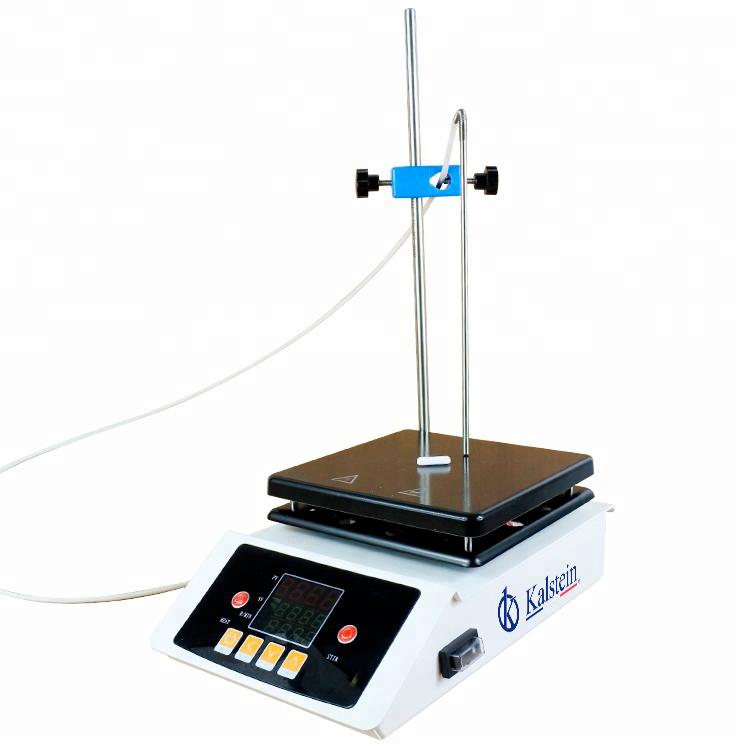

Model | YR02942 |
Volume | 5L |
Heating Plate (mm) | 180*180 |
Heating Power (W) | 550 |
Heating Plate Material | Ceramic Coated Aluminium (White or Black) |
Temperature Range | Rt-380°C |
Mixing Speed | 100-1800RPM |
Temperature Control | PID Auto Control |
Temperature Display (°C) | Digital LCD Display |
Temperature Accuracy | ± 1°C |
Thermocouple Probe (Sensor) | PT100, with Inner and Outer Thermocouple |
Permissible Working Temperature | Rt to 40°C |
Timer | With Timer |
Timer Range | 0-9999 min |
Voltage | 220V / 110V Optional |
Dimensions (mm) | 440*290*180 |
Weight (Kg) | 5,5 |
