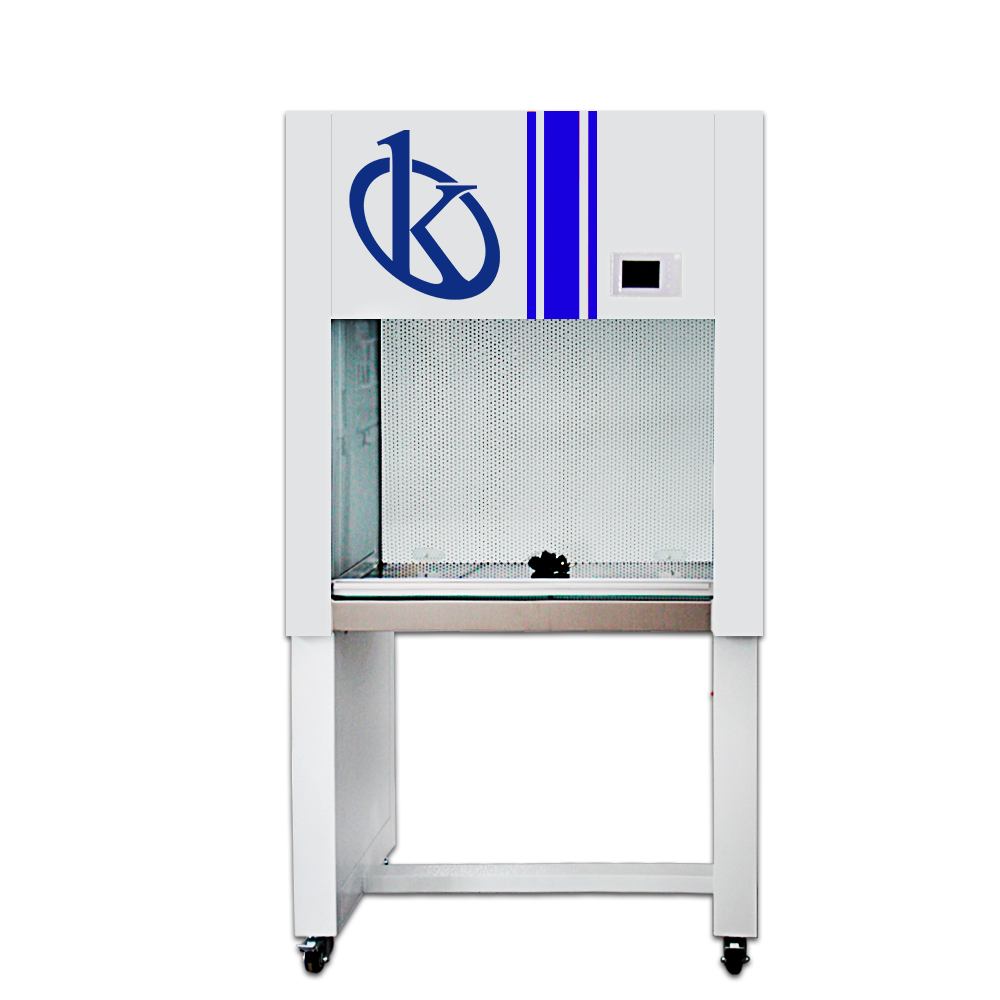

Class 100 Horizontal Air Laminar Flow Cabinet YR05726

ManufacturerKalstein

Product Description

  • Adopting arbitrary positioning sliding door system
  • The shell is welded by cold-rolled plates, the surface is electrostatically sprayed, and the work surface is SUS304 brushed stainless steel, which is corrosion-resistant and easy to clean.
  • The lighting and sterilization systems are interlocked safely, and have the timing function of the ultraviolet lamp (except 1BU, 1CU)
  • Digital display LCD control interface, more user-friendly design
  • The vertical quasi-closed table top and the formation of a downward flow air curtain in the operation room can effectively prevent the input of external air and the operation area is clean
  • Equipped with HEPA high-efficiency air filter, with primary filter for preliminary filtration, which can effectively extend the high-efficiency filter
Technical Specifications
Model YR05726
Cleanliness Level Class 100@≥0.5μM (US Federal 209E)
Number of Colonies ≤0.5pcs/dish·hour (Φ90mm culture plate)
Average Wind Speed 0.25~0.45m/s
Noise ≤62dB(A)
Vibration Half Peak ≤5μM(x、y、z direction)
Illuminance ≥300Lx
Power Supply AC single phase 220V/50Hz
Maximum power 100W
Weight 80Kg
Work area size

W1×D1×H1

700×410×580

860×590×1600

Dimensions Single/Single
High efficiency filter specification and quantity 680×565×50
Specification and quantity of fluorescent lamp/ultraviolet lamp 12W×1

20W×1

Additional Information

Weight 155 kg
Dimensions 95 × 67 × 168 cm
