Biological + USB Portable Dual Lens Digital Microscope YR05783 // YR05786

ManufacturerKalstein

Description

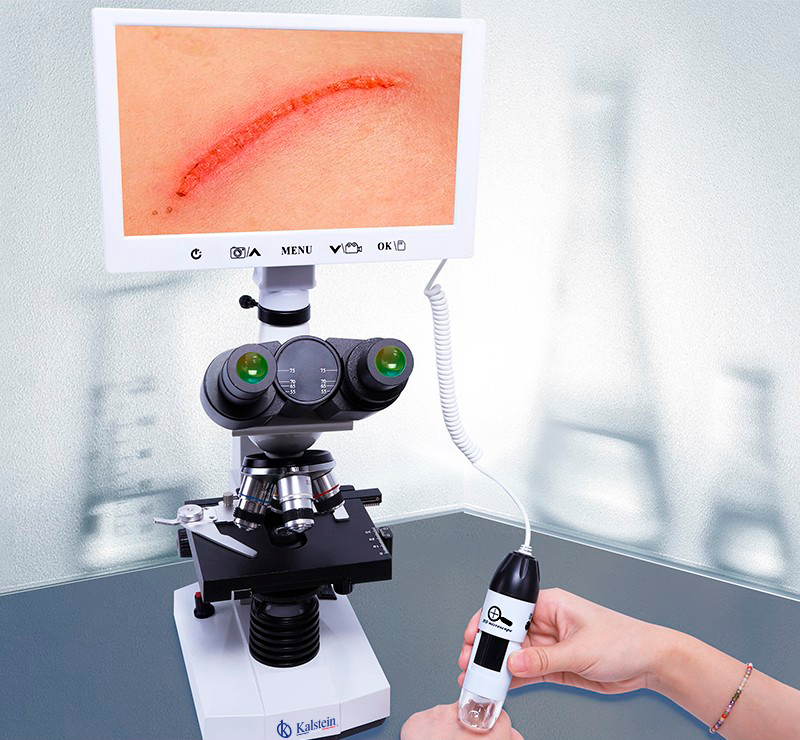

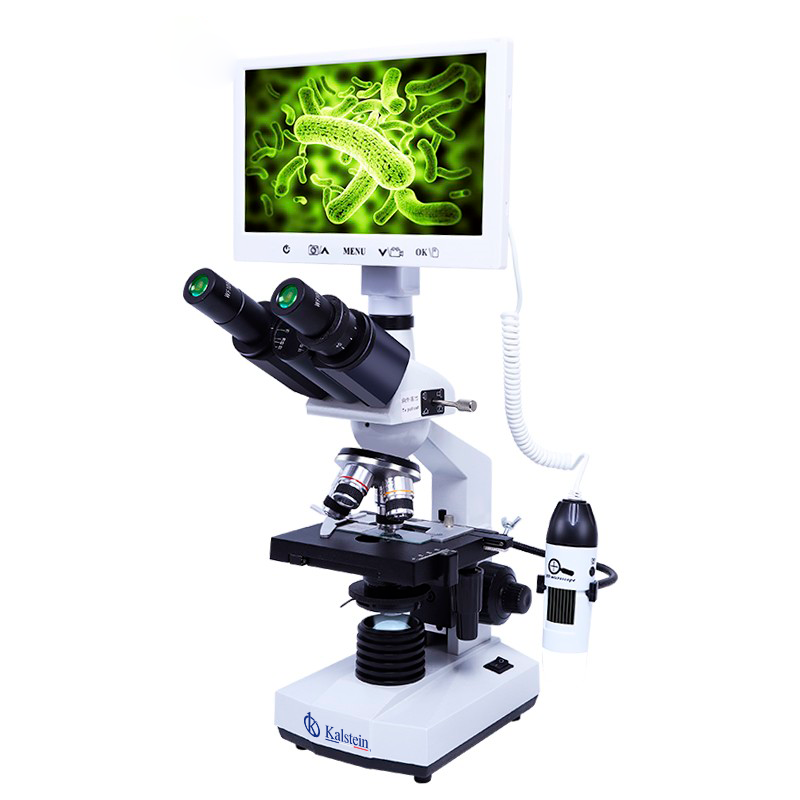

The Biological + USB Portable Dual Lens Digital Microscope YR05783 // YR05786 is an innovative tool designed for both educational and scientific exploration. It features a trinocular head that inclines at 30°, making it easy to observe from various angles. This microscope is equipped with a dual lens system combining the capabilities of a traditional biological microscope with a handheld digital variant, ensuring a broader range of functionality and versatility. It includes a high-resolution 7″ LCD screen with 800×480 resolution and a USB output that makes it compatible with PCs and mobile phones. Added convenience comes in the form of a built-in measuring software package, enabling precise analysis directly on computers operating on Win/iMac systems.

Market Price

The Biological + USB Portable Dual Lens Digital Microscope is typically found within a price range of 600 USD to 1200 USD in the market. This pricing reflects the advanced features and durable construction that professionals and educators alike have come to trust. It’s a cost-effective choice for those seeking high-quality optical performance paired with digital amplification capabilities.

Frequently Asked Questions

Q: Is the microscope portable?
A: Yes, the microscope is designed for portability, featuring a convenient hand carry case and a USB portable digital feature.

Q: What is the maximum storage capacity?
A: It supports a Micro SD card up to 32GB, which is more than enough for storing images and video captures during use.

Advantages and Disadvantages

Advantages: The dual functionality as a biological and digital microscope makes this model ideal for both detailed static observations and dynamic on-field research. With adjustable LED lighting and dual eyepieces, it offers a comfortable and adaptable user experience.

Disadvantages: While it provides many advanced features, it can be overwhelming for beginners who are not familiar with digital imaging technology and software use.

Field Use

This microscope excels in laboratory settings, classrooms, and research environments that require detailed observation and analysis. The robust mechanical stage provides stability while the dual lens system and digital connectivity allow for versatile and dynamic usage across different research scenarios.

Recommendations

To maximize the functionality of the Biological + USB Portable Dual Lens Digital Microscope, it is recommended to regularly calibrate the digital components and keep the lenses clean and free from dust. Utilizing the measuring software will enhance the accuracy of your observations and maintain precise data collection. For schools and research facilities, investing in extra storage options and supplementary slide kits can further extend the use and efficiency of this microscope.

Features

  • 7″ LCD screen with 800×480 resolution
  • Dual lens system with traditional and handheld digital options
  • USB output for connectivity with PC and mobile devices
  • Mechanical stage dimensions: 115x125mm
  • Coaxial focusing for precision
  • LED light source with adjustable brightness
  • Includes 10 prepared slides and experiment kit
  • Support measuring software for Win/iMac

Technical Specifications

Model YR05784 YR05785 YR05786 YR05783
Head Teaching Head, 45°+90° Inclined, 360° Rotatable o o
Binocular Head, 30° Inclined, 360° Rotatable
Trinocular Head, 30° Inclined, 360° Rotatable o o

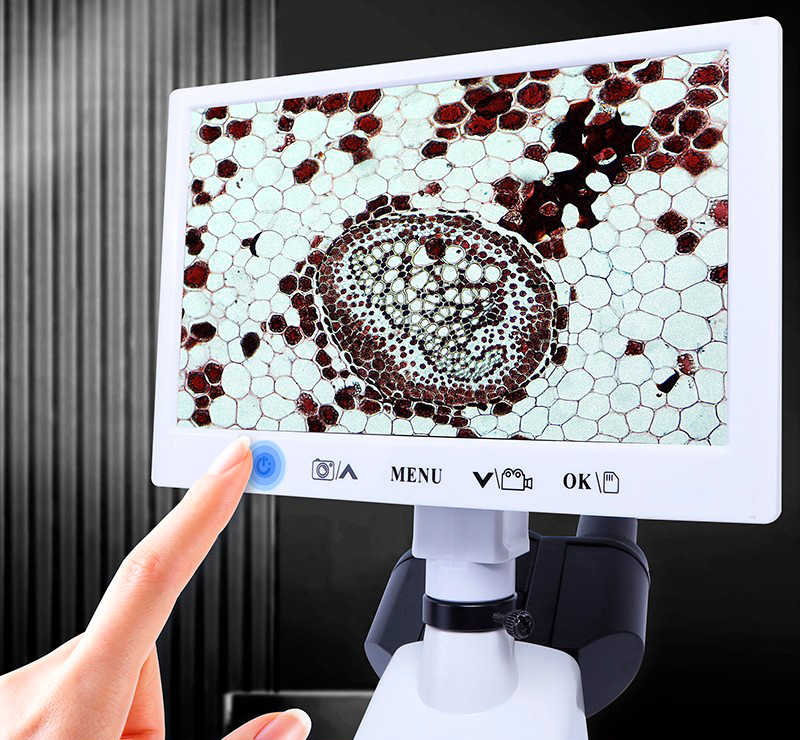

LCD Camera 7″IPS LCD Screen Resolution 800×480
Sensor 1/2.75″CMOS
Resolution 2.0M 1920x1080p, With 0.3x C-Mount
Pixel Size 2.8×2.8um
Frame Rate 30 fps

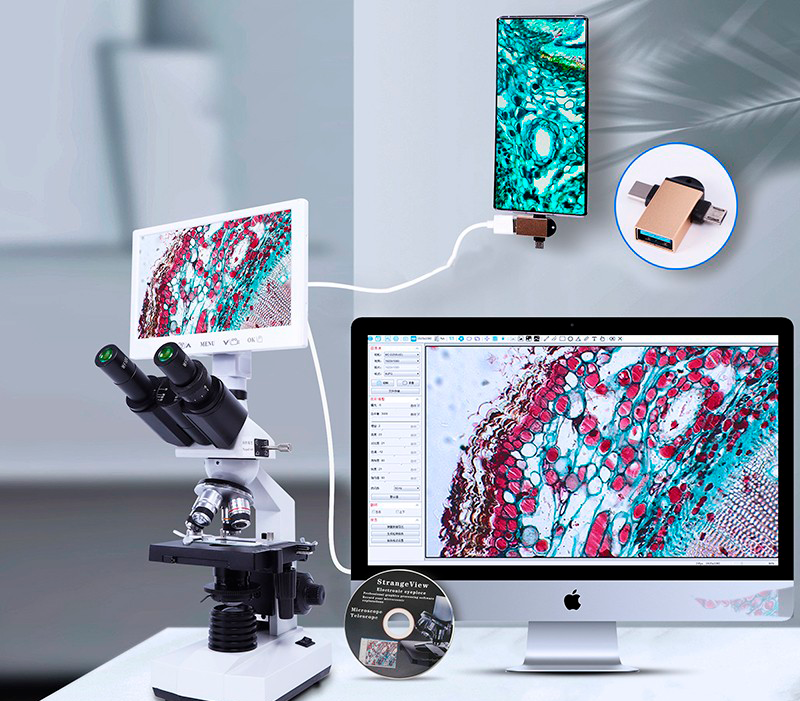

Output USB 2.0, Output to LCD, PC or Mobile Phone
Power DC5V/2A, Power Port 3.5/1.35 DC
Storage Micro SD Card Slot, Support Class 10 Max 32G
LCD Menu One Key Switch Image From Main Camera & Hand-held Camera
One Key Take Photo, Video, Record, Save to SD Card
Set Color, Contrast, White Balance Auto/Manual Adjust
Set Photo/ Video Resolution Adjust, Mic On/Off to Record Voice With Video
Set Date, Time
Choose Language: Chinese, Tranditional Chinese, English, Japanese, France, Germany, Korea, Russia, Italy, Portuguese, Spanish, Arabic
Playback Photo, Video
PC Software CD With Measuring Software Strange View, Support Win/iMac Computer, Support Language  Chinese, English, Russia, Ukrian
Hand-held  USB Portable Digital Microscope 1.3M, 1.5x-25x o o
Eyepiece WF10x, WF16x
Nosepiece Quadruple Nosepiece, Ball Bearing Inner Locating
Objective Achromatic 4x,10x,40x(s), 100x(s, oil)
Working Stage Double Layer Mechanical Stage 115*125mm
Focusing Coaxial Coarse & Fine Focus Knob, Coarse Focusing Range 20mm
Condenser Abbe Condenser N.A.1.25, With Iris Diaphragm Filter
Light Source LED, Brightness Adjustable
Accessory Prepared Slide 10pcs in Box,
Experiment Kit,
Mobile Phone Connector
Power Adapter
Power Cord
USB Cable
Software CD
Packing Hand Carry Box + Master Carton

Additional information

Weight 5 kg
Dimensions 30 × 20 × 40 cm
Model

YR05783, YR05784, YR05785, YR05786
