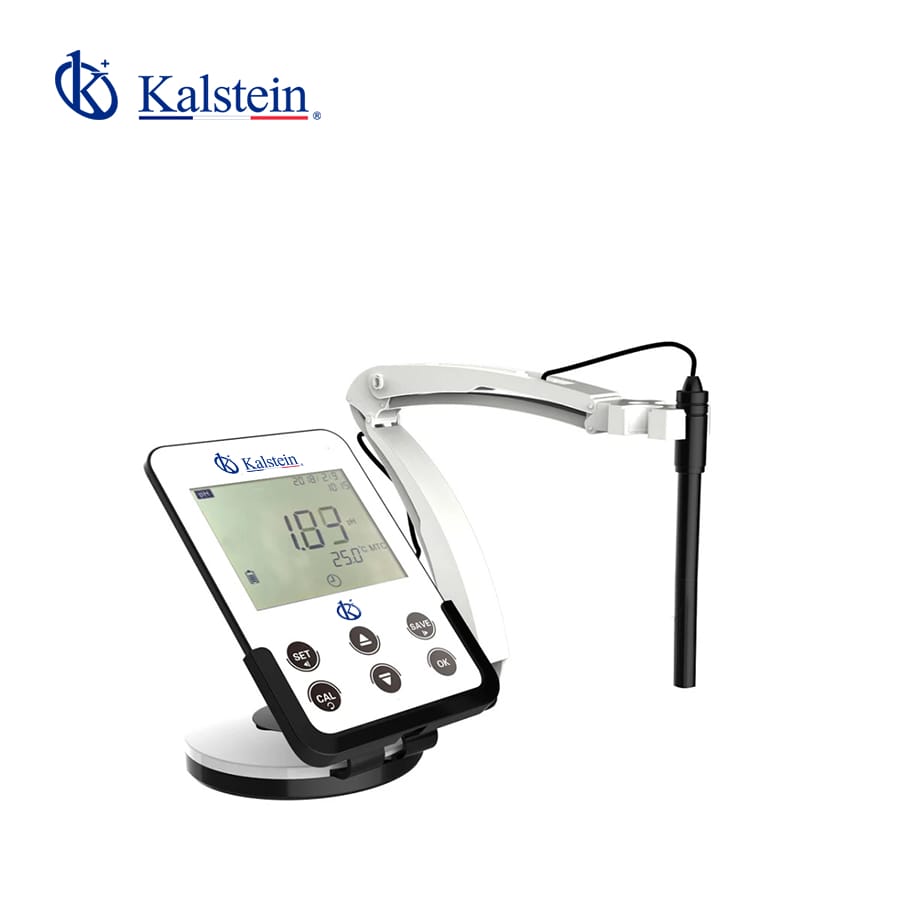

Benchtop Dissolved Oxygen Meter YR01832

Fabricante:Β Kalstein
Certificacion europea

Fabricante:Β Kalstein

Certificacion europea

Product Description

Professional benchtop dissolved oxygen meter, 7 inch TFT display, stores up to 1000 data sets, setup menu contains 17 options, accuracy: 0.2mg/L.

Features:

β€’ Professional benchtop dissolved oxygen meter is equipped with a 7 inch TFT display.
β€’ 1 or 2 points calibration using the air-saturated water or zero oxygen solution.
β€’ Salinity and barometric pressure compensations eliminate the measurement error.
β€’ Auto-Read function senses and locks the measurement endpoint.
β€’ Timed Interval Readings sends the measurement data to a PC or printer.

β€’ Limit Alarm automatically alerts when reading exceeds the specified range.
β€’ Calibration due alarm prompts user to calibrate the meter regularly.
β€’ Calibration report shows the date, time, calibration point, etc.
β€’ Password protection prevents the unauthorized calibration and settings.
β€’ Expanded memory stores or recalls up to 1000 data sets.
β€’ Reset function automatically resumes all settings back to the factory defaults.

Model YR01832
Dissolved Oxygen
Range 0.00 to 20.00mg/L
Resolution 0.01mg/L
Accuracy Β±0.2mg/L
% Saturation of Oxygen
Range 0.0 to 200.0%
Resolution 0.1%
Accuracy Β±2.0%
General Specifications
Calibration Points 1 or 2 points
Temperature Compensation 0 to 50Β°C/32 to 122Β°F, automatic
Pressure Correction 60.0 to 112.5kPa/450 to 850mmHg, manual
Salinity Correction 0.0 to 50.0g/L, manual
Measurement Modes DO
Stability Criteria Standard or high-accuracy
Calibration Due Alarm 1 to 31 days or off
Interval Readings 10, 30, 60 seconds, 10, 30 minutes or off
Password Protection 4 digits
Memory Stores up to 1000 data sets
Output USB communication interface
Connector 6-pin nimi-DIN
Display 7” TFT LCD
Power DC12V, using AC adapter, 220V/50Hz
Dimensions 240(L)Γ—220(W)Γ—80(H)mm
Weight 1.7kg
Order Code Accessories
YR01832 DO100 dissolved oxygen electrode
DO electrolyte solution
DO membrane cap
DC12V power adapter



Additional Information

Weight 1,7 kg
Dimensions 31 × 26 × 20 cm
