Description

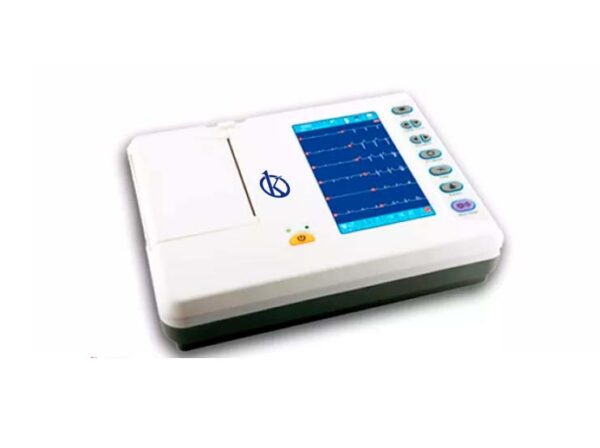

This new 6-channel YR ECG will bring you the power of advanced and easy-to-use technologies, multiple forms of data management, as well as accurate measurements and interpretations, which can improve the diagnostic confidence of cardiologists.
Technical description
Model | YR05161 |
Guide | 12 standard conductors |
Input dynamic range | ± 10Vpp |
Patient current leak | <10μA |
Calibration Voltage | 1mV ± 2% |
Tension Tolerance | : ≥ ± 500mV |
Time constant | ≥3.2s |
Frequency response | 0.05 ~ 160Hz (-3db) |
Noise level | <15μVp-p |
Input circuit current | 0.050.05 μA |
Sensitivity | 2.5, 5.10, 20mm / mV |
Interchannel interference | ≤0.5mm |
Paper speed | 6.25,12.5, 25.50mm / s (± 3%) |
Patient current leak | <10μA |
AC filter | 50Hz / 60Hz |
EMG filters | 25Hz / 45Hz |
Anti-drift filter | 0.15 Hz (adaptive) |
CMMR | ≥120dB (with AC filter) |
Sensitivity Valve | ≤20μV |
Input impedance | ≥50MΩ |
Work Modes | MAN, AUTO, ANALYSIS modes |
Acquisition of Potential Customers | 12 bits / 1000 Hz (synchronously 12 leads) |
Input Circuit | floating; protection circuit against defibrillator effect |
Screen | 7 inch LCD |
