Description

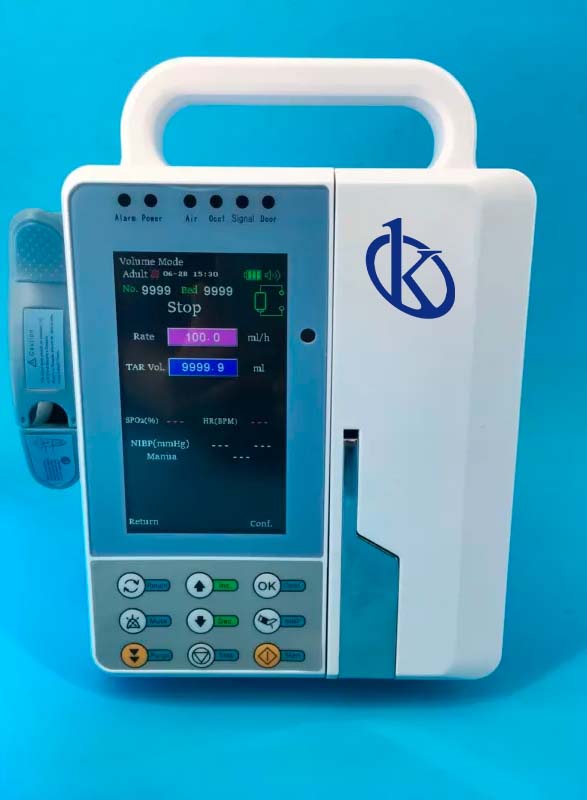

The 4.3 Inch Large LCD Screen Remote Control Infusion Suction Pump YR05164 is a state-of-the-art medical device designed to offer precision and reliability in infusion procedures. Featuring a large 4.3-inch color LCD screen with backlight, this pump ensures optimal visibility in various lighting conditions. Its advanced infusion monitoring system, combined with real-time wireless transmission, allows for efficient supervision of infusion status at a central station. The device displays critical parameters like time, battery, infusion mode, rate, volume, sound volume, and more. It also supports three working modes: rate, volume, and time mode, making it versatile for different medical requirements. The inclusion of audible and visible alarms enhances safety by promptly alerting users to potential issues such as infusion completion, occlusion, or low battery.
Market Price
The market price for infusion pumps with features similar to the 4.3 Inch Large LCD Screen Remote Control Infusion Suction Pump YR05164 generally ranges between $500 and $800. Such pricing reflects the advanced technology and reliability that medical professionals require in demanding environments. For exact pricing or to request a personalized quote, consider using the Kalstein Plus platform to compare options and make an informed decision.
Frequently Asked Questions
What types of IV sets are compatible with this pump? Disposable IV sets of any brand can be used, ensuring flexibility and convenience for healthcare providers.
Can the pump operate in low-temperature environments? Yes, it comes with an optional heating function, suitable for maintaining the infusion at optimal temperatures even during winter.
How long does the battery last on a single charge? The internal lithium-ion battery can run for over 4 hours at a flow rate of 25ml/h after a full charge, aligning with standard medical regulations.
Advantages and Disadvantages
This infusion pump offers several advantages, such as high precision, user-friendly interface, and robust safety features with multiple alarms for varied scenarios. Its adaptability to use different IV sets and multi-mode operations make it versatile for diverse medical needs. However, potential disadvantages might include the reliance on battery life for portable use and the need for thorough training to leverage all its advanced features effectively.
Usage in the Field
In practical applications, this infusion pump is ideal for hospitals and clinics requiring dependable infusion systems. It provides nurses and healthcare workers with real-time monitoring and control over infusion processes, thereby ensuring patient safety and effective treatment management even in high-stress or variable lighting environments.
Recommendations
To maximize the efficiency and lifespan of the infusion pump, regular maintenance and cleaning are recommended. Additionally, familiarize yourself with the alarm functions and operational modes through comprehensive training sessions offered by the manufacturer. For hassle-free procurement and further information, consider generating a quote via Kalstein Plus to explore customized solutions.
Features
- Large, backlit LCD display suitable for working in various ambient light conditions.
- Disposable IV set of any brand is suitable for this pump.
- Three working modes: rate / volume / time mode.
- Purge, KVO function.
- The heating function is optional, suitable for infusing in winter or if there is a requirement for the temperature of the medicine.
- The central monitoring system is optional; the infusion status of each pump is displayed in real-time at the central station via wireless transmission.
- Simple and convenient operation, intuitive presence of working status.
- Audible and visible alarms.
Technical Specifications
| Pump type | Drip Type Infusion Pump | ||
| Pumping Form | Peristaltic fingers | ||
| Adjustable Fall Rate Range | 1 ~ 400 drops / min (step: 1 drop / min) | ||
| Adjustable Volume Rate Range | 1 ~ 1200 ml / h (when 1 ~ 99.9 ml / h, step: 0.1 ml / h; greater than 99.9 ml / h, step: 1 ml / h) | ||
| Flow Accuracy | Within 3% or so (using manufacturer’s designated IV kit or high quality calibrated IV kit) | ||
| Mechanical precision | within 2% or so | ||
| Purge Rate | 800ml / h | ||
| KVO rate | 1 ml / hour (1 ~ 300 ml / hour) | ||
| 3 ml / h (more than 300 ml / h) | |||
| Infusion Volume Range | 1 ml ~ 9999.9 ml (step: 0.1 ml) | ||
| Maximum Accumulated Volume | 9999.9 ml (step: 0.1 ml) | ||
| Time interval | 1 min ~ 9999 min (step: 1 min) | ||
| Occlusion Alarm Threshold | Height: 800 mmHg + -200 mmHg (106.7 kPa + -26.7 kPa) | ||
| Medium: 500 mmHg + -100 mmHg (66.7 kPa + -13.3 kPa) | |||
| Low: 300 mmHg + -100 mmHg (40.7 kPa + -13.3 kPa) | |||
| Alarm | Infusion Full, Empty, Bad Signal, Malfunction, Occlusion, Door Open, Air Bubble, Low Battery, Setup Error, AC Power Off, Idle. | ||
| Air Bubble Detector Method | Ultrasonic wave, sensitivity: greater than or equal | ||
| 25 l | |||
| Fuse | F1AL / 250V (“F” indicates fast, “L” indicates low breaking power), 2 pieces (installed inside the pump). | ||
| Power supply | AC 85 ~ 265V, 50 / 60Hz; | ||
| Internal Battery | 11.1V rechargeable lithium-ion battery. Capacity: greater than or equal to 2000 mAh; | ||
| The pump can run more than 4 hours at a flow rate of 25ml / h after charging for 8 hours (average flow rate specified by GB 9706.27-2005). | |||
| Energy | less than or equal to 40VA | ||
| Size | 188mm (length) x 198mm (width) x 228mm (height) | ||
| Weight | 2.2 kg | ||
| Environmental requirements | Transport | ||
| Ambient temperature: -30 ° C ~ + 55 ° C | |||
| Relative humidity: 20% ~ 95% (non-condensing) | |||
| Atmospheric pressure: 70kPa ~ 106kPa | |||
| Storage | |||
| Ambient temperature: -30 ° C ~ + 55 ° C | |||
| Relative humidity: 20% ~ 95% | |||
| Atmospheric pressure: 70kPa ~ 106kPa | |||
| Operation | |||
| Ambient temperature: + 5 ~ + 40 ° C | |||
| Relative humidity: 20% ~ 90% | |||
| Atmospheric pressure: 86kPa ~ 106kPas | |||
| Calibration function | Disposable IV set of any brand is suitable for this pump | ||
| Three Working Modes | Rate / volume / time mode | ||
| Alarm | Infusion Full, Empty, Bad Signal, Malfunction, Occlusion, Door Open, Air Bubble, Low Battery, Setup Error, AC Power Off, Idle. | ||
