Description

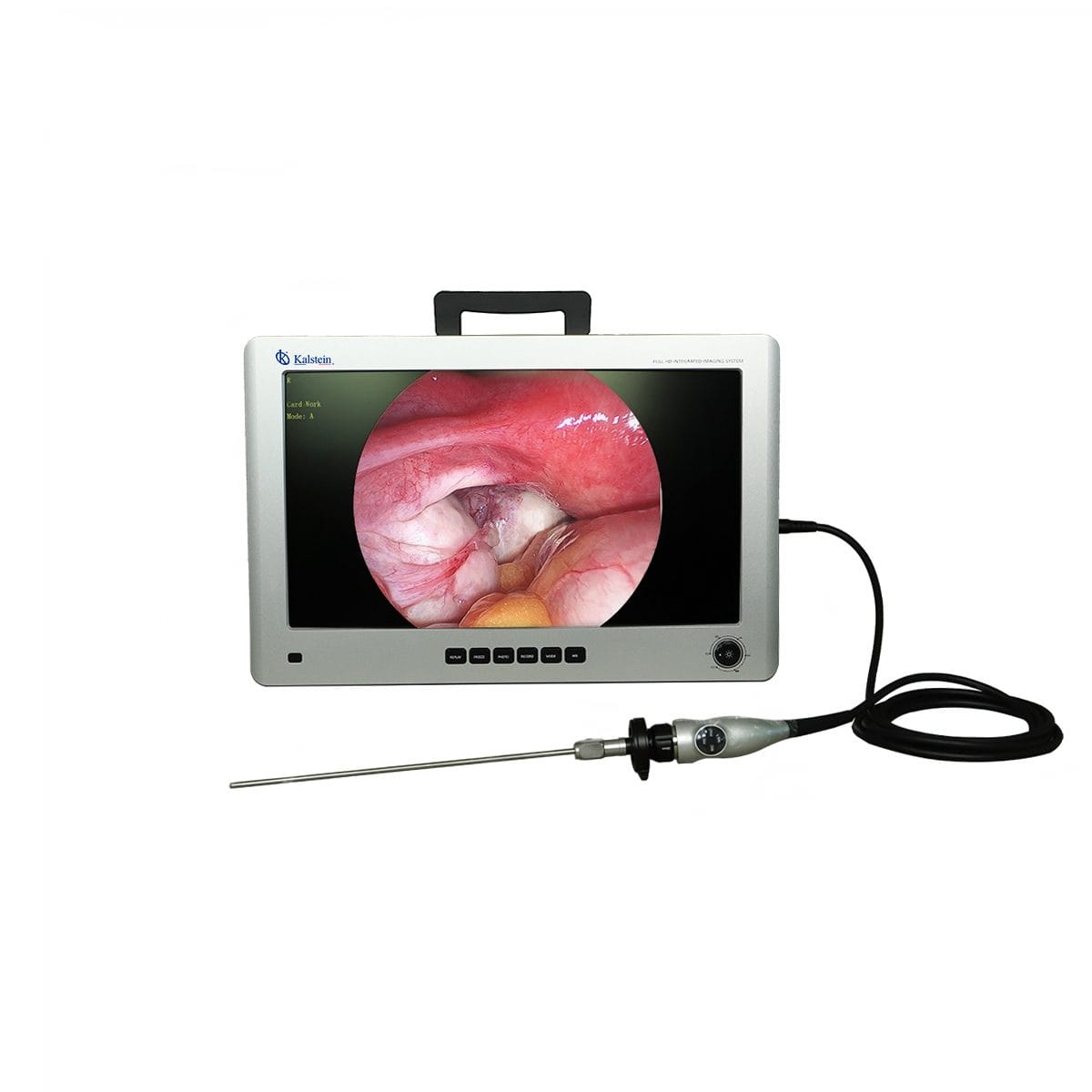

Monitor/camera/light source and image recorder in a machine
Smaller size/Lighter weight/Easy to move
Portable power
Utilization in variable places and fields
Variable laying style/Adjust monitor position any time as required by the operator
Compatible with Optics/Electronic/Fiber endoscopy
Functions
- Camera/Display/Illumination
- Image recorder/Storage/Replay/Snapshot
- Simultaneous second transmission
- Network video transmission
- Network telecast live/Live browse on network terminal
Technical Specifications
Model | YR06156 | |
Medical LED Light Source
|
Power | ≥30W |
Color Temperature | 6500K | |
Illumination | ≥700,000Lux | |
Color Render Index | 93 | |
Adjustment Mode | Stepless Adjustment | |
Integrated Control System
|
Control Method | Foot Switch/Remote Control |
Wireless Remote Control | Infrared code full function remote control | |
Foot Switch | Record/Snapshot | |
Camera
|
Sensor | 1/3inch Full HD CMOS |
Resolution | 1920*1080 | |
Scanning Method | Progressive Scanning | |
Scanning Frame Rate | 60fps | |
Minimum Illumination | 1Lux | |
Electronic Shutter | 1/60 ~ 1/10000s | |
White Balance | Manual/Auto | |
Back Light Compensation | Auto |
