Troubleshooting Common Errors in the YR02307 Rotary Evaporator

Explore the common errors faced while operating the YR02307 Rotary Evaporator and effective troubleshooting techniques to resolve them.

3D available

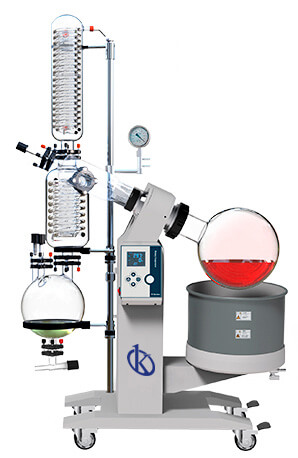

Troubleshooting Common Errors in the YR02307 Rotary Evaporator

The YR02307 Rotary Evaporator is an essential tool in laboratories, especially in the fields of chemical engineering, pharmaceuticals, and food processing. Despite its advanced technology and reliable performance, users may encounter various errors during operation. This article aims to provide comprehensive troubleshooting guidelines for common error symptoms associated with the YR02307, helping operators to quickly identify and rectify issues.

Technical Specifications of the YR02307

SpecificationDetails
ModelYR02307
Evaporating Flask5L, Ø 50mm
Receiving Flask (L)3
Speed ControlVariable continuous
Power Supply220-240V-, 50/60Hz
Heating Power (kW)2
Total Power (kW)2.3
Rotation Speed (rpm)20 – 140
Motor Power250
Temperature RangeRT – 95°C
Weight35 kg

Common Symptoms and Troubleshooting Steps

Understanding the symptoms your YR02307 Rotary Evaporator presents can help in diagnosing and resolving issues swiftly. Below, we outline common symptoms along with possible causes and solutions.

Equipment Does Not Power On

This issue can be frustrating and is often caused by several factors.

  • Power Supply Issues: Ensure the power supply is functioning and the unit is plugged in properly.
  • Fuse Problems: Check the fuse and replace it if blown.
  • Internal Circuit Malfunction: Inspect the internal wiring and components for any damage.

Error Code E-03

This code indicates a problem with the motor speed control.

  • Cause: The motor may be overloaded or the speed setting might be incorrect.
  • Solution: Reduce the load on the motor and reset the speed settings to default.

Inconsistent Rotational Speeds

Variability in rotation speed can lead to ineffective evaporation.

  • Cause: Possible belt slippage or a faulty motor.
  • Solution: Check the belt tension and replace if necessary; ensure the motor is correctly calibrated.

Water Leaks from the Bath

Leaks can create hazardous situations in the lab.

  • Cause: A damaged water jacket or loose fittings.
  • Solution: Inspect the water jacket for cracks and tighten any loose fittings.

Symptom-Cause-Solution Matrix

SymptomPossible CauseSolution
Equipment Does Not Power OnPower supply issues, blown fuseCheck power connections and replace fuse
Error Code E-03Motor overloadReduce load and reset settings
Inconsistent Rotational SpeedsBelt slippageCheck and adjust belt tension
Water Leaks from the BathDamaged jacket, loose fittingsInspect and repair or replace

Frequently Asked Questions

What are the common error codes associated with the YR02307?

Common error codes for the YR02307 include E-03 for motor issues, E-04 for heating problems, and E-05 for vacuum system failures. Each code indicates specific troubleshooting steps tailored to the nature of the problem.

How can I maintain my YR02307 Rotary Evaporator?

Regular maintenance of the YR02307 includes cleaning the glass components, checking the seals for wear, and ensuring the vacuum pump is functioning properly. Following the manufacturer's guidelines will enhance longevity and performance.

What to do if the YR02307 overheats during operation?

If overheating occurs, it is crucial to power down the unit immediately. Check for blockages in ventilation and ensure that the water bath is filled to the appropriate level. Adjust the temperature settings appropriately.

Can the YR02307 be used for different solvents?

Yes, the YR02307 is versatile and can handle various solvents, including ethanol and water. However, it is essential to understand the properties of the solvent being used to ensure safe operation.

Is there a warranty for the YR02307 Rotary Evaporator?

Yes, the YR02307 typically comes with a standard warranty covering defects and malfunctions under normal use. Always refer to the warranty documentation for specific terms and conditions.

Conclusion

By understanding the common symptoms and troubleshooting steps for the YR02307 Rotary Evaporator, users can effectively address issues as they arise. Proper maintenance and prompt attention to errors will ensure optimal performance and longevity of this valuable laboratory equipment.
