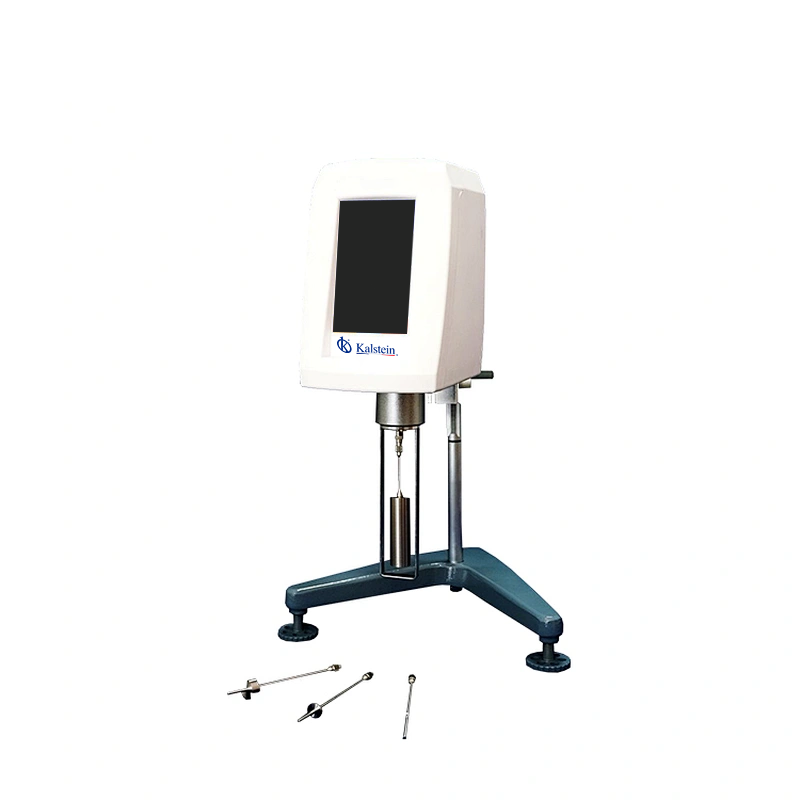

Installation and Commissioning Guide for the YR05855 Viscosity Analyzer
The YR05855 Viscosity Analyzer is a high-precision laboratory instrument designed for measuring the viscosity of fluids. This guide will walk you through the installation and commissioning process, ensuring that you can achieve optimal performance from this advanced equipment.
Overview of the YR05855 Viscosity Analyzer
The YR05855 Viscosity Analyzer stands out due to its extensive measurement range from 1 to 2,000,000 mpa.s (cps) and automatic detection capabilities. It is designed for ease of use, ensuring that operators can effectively carry out viscosity measurements across various applications in clinical, industrial, and educational settings.
Technical Specifications of the YR05855
| Feature | Specification |
|---|---|
| Model | YR05855 |
| Measurement Range | 1-2,000,000 mpa.s (cps) |
| Display | LCD |
| Spindle Specification | No. 0, 1, 2, 3, 4 |
| Rotational Speed | 0.3 / 0.6 / 1.5 / 3 / 6 / 12 / 30 / 60 rpm |
| Power Supply | AC 220V ± 10% 50 Hz ± 10% |
| Dimensions | 370×325×280 mm |
| Net Weight | 6.8 kg |
Unboxing and Initial Setup
When you receive the YR05855 Viscosity Analyzer, it is crucial to ensure all components are present and undamaged. The unboxing checklist should include the following:
- YR05855 Viscosity Analyzer unit
- Spindles No. 0, 1, 2, 3, 4
- Temperature sensor
- Protective frame
- Base plate
- Manual in English
- Hexagonal and solid keys
Anchoring and Leveling the Equipment
Before powering up the YR05855, ensure that it is securely anchored and correctly leveled to avoid measurement errors. Place the analyzer on a stable, flat surface. Use a leveling tool to check that the device is perfectly horizontal.
Power-Up Sequence and First-Run Calibration
Once the device is in place, follow these steps for the power-up sequence:
- Connect the power supply to the device.
- Switch on the device using the power button.
- Allow the display to initialize.
- Run the first calibration with the provided calibration fluids to ensure accuracy.
Calibration should be repeated periodically to maintain precision in measurements.
Common Setup Mistakes to Avoid
During installation and initial setup, avoid these common mistakes:
- Failing to level the equipment properly, which can lead to inaccurate readings.
- Not calibrating the analyzer before initial use.
- Improper handling of spindles that may result in damage.
Site Requirements and Environmental Conditions
Ensure the installation site meets the following environmental conditions for optimal performance:
- Temperature: 5-35 degrees Celsius
- Relative Humidity: Not exceeding 80%
- Voltage: AC 220V ± 10%
Prepare the site with adequate ventilation and ensure no vibrations or electromagnetic interference that may affect readings.
Frequently Asked Questions
What should I do if the YR05855 does not power on?
If the YR05855 does not power on, check the power connections and ensure the power outlet is functioning. Inspect the power supply for any visible damage.
How do I interpret the readings from the YR05855?
The readings are displayed in mpa.s (cps). Understand the normal range for your specific application and compare results against established benchmarks for accuracy.
What maintenance is required for the YR05855?
Regular maintenance includes calibration checks, cleaning of the sensor and spindles, and ensuring the device is in a dust-free environment.
Can the YR05855 be used for different types of fluids?
Yes, the YR05855 is versatile and can measure a wide variety of fluids, but ensure that the spindle type is appropriate for the viscosity of the fluid being tested.
How often should I perform calibration on the YR05855?
Calibration should be performed before the first use and subsequently at regular intervals, or whenever there is a noticeable change in measurement accuracy.
What is the warranty period for the YR05855?
The warranty period typically covers one year from the date of purchase for manufacturing defects, but this may vary based on the supplier’s policies.
Where can I find spare parts for the YR05855?
Spare parts can be sourced through authorized distributors or directly from the manufacturer. Refer to the device manual for specific part numbers.
