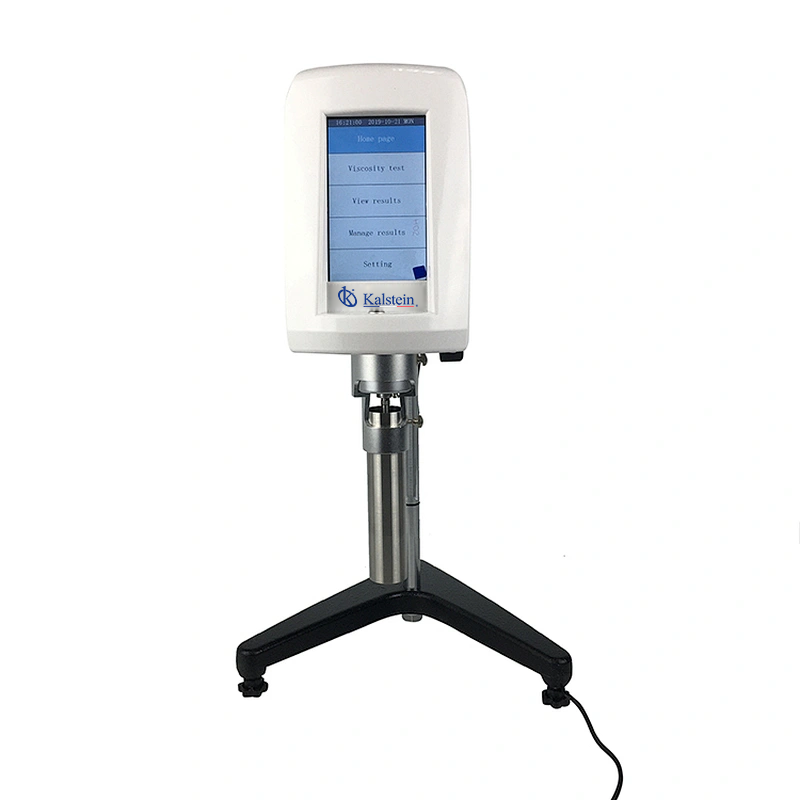

Touch Screen Brookfield Viscometer YR05858 - YR05859
Touch Screen Brookfield Viscometer YR05858 - YR05859 — equipo de laboratorio Kalstein con especificaciones técnicas, características avanzadas y soluciones profesionales certificadas para uso científico.
The Touch Screen Brookfield Viscometer YR05858 - YR05859 offers a cutting-edge solution for measuring viscosity with precision and ease. Designed for industries where high viscosity measurement is crucial, this viscometer integrates advanced touch-screen technology to deliver fast and accurate results. Its 5-inch color display provides a comprehensive view of measurement parameters and operating conditions, ensuring an intuitive and efficient user experience. This viscometer is ideal for applications in paints, cosmetics, inks, food production, and more, offering stability and strong anti-interference performance. Optimize your viscosity analysis by choosing the Touch Screen Brookfield Viscometer today.
Market Pricing
The cost of high-quality viscometers can vary widely, depending on features and specifications. In general, you can expect to invest anywhere from $3,500 to $4,600 for a top-tier model like the Touch Screen Brookfield Viscometer YR05858 - YR05859. This price range reflects the value of its robust technology and accuracy, making it a worthwhile investment for industries that rely on precise viscosity measurements.
Frequently Asked Questions
- What is the maximum viscosity this device can measure? The YR05859 model can measure viscosities up to 6,000,000 mPa.s.
- Does it come with a temperature sensor? Yes, the viscometer includes an optional Pt100 temperature probe that operates in ranges from -20 °C to 300 °C.
- Can I connect the viscometer to my computer? Yes, the device has a dual RS232 interface for connectivity and control via PC software.
Advantages and Disadvantages
The major advantage of the Touch Screen Brookfield Viscometer YR05858 - YR05859 is its combination of advanced touch-screen technology and precise measurement capabilities. It is easy to operate with high stability and offers comprehensive measurement options including temperature and shear rate. A potential downside could be its high price point, which might be a barrier for smaller operations.
Field Application
This viscometer is widely used in the paint, cosmetics, and food industries for its capability to measure high-viscosity samples. It allows operators to measure different viscosities accurately and efficiently, enabling quality control and consistency in production processes.
Recommendations
For optimal performance, regularly calibrate your Touch Screen Brookfield Viscometer using the included standard silicone oil. It’s essential also to keep the device’s software updated for enhanced functionality. Consider exploring the optional rotors for a wider range of viscosities if your production requires it.
Features
- Integrated ARM technology with a built-in Linux system for efficient operation
- Auto calibration to minimize measurement errors
- Display of dynamic and kinematic viscosity, temperature, shear rate, and stress
- Real-time display and printing of viscosity curves
- Intuitive front-level adjustment
- Optional Pt100 temperature probe with an extensive range of measurement
Technical Specifications
| Model | YR05858 | YR05859 |
| Speed(r/min) | 0.3–100 infinitely variable speed, a total of 998 speed options | |
| Measuring Range | Rotor 1- 4: 10-2000000 mPa.s ULR: 1-1000 Rotor 18: 3 - 10000 Rotor 25: 480 - 1.60000000 Rotor 31: 30 - 100000 Rotor 34: 20 - 200000 | Rotor 1-4: 10–6,000,000 mPa.s ULR: 1-6000 Rotor 18: 1.5 - 300,000 Rotor 25: 240 – 4.8,000,000 Rotor 31: 15 - 300,000 Rotor 34: 30 - 600,000 |
| Rotor | L1 - L4 (Standard) Enhanced ultra-low viscosity adapter ULR (optional) Small sample adapters (rotors 18,25,31,34)(optional) | |
| Sample Dosage | Rotor 1- 4: 300 - 400ml ULR: 21ml Rotor 18：7ml Rotor 25: 9ml Rotor 31: 10.5ml Rotor 34:11ml( K = 1000; M = 1000000 ) | |
| Measurement Error | ±1% (Newtonian liquid) | |
| Repetitive Error | ±0.5% (Newtonian liquid) | |
| Data output Interface | RS232*2pcs, temperature probe interface*1pc | |
| Power | 110V ~240V, 50Hz / 60Hz | |
| Dimension | 350 *350 *450mm | |
| Standard Accessory | Main machine, bracket and the base, rotor L1,L2,L3,L4, rotor protection frame, power adapter. | |
| Optional Accessory | Supper Ultra-low viscosity adapter ULR rotor, temperature sensor, thermostat bath, thermostat cup, printer, standard calibrate silicone oil (5.7mpa.s/336.1mpa,s/5220mpa.s), etc. | |
Specyfikacja techniczna
| Wymiary | L 45 × W 35 × H 41 cm |
|---|---|
| Waga | 8 kg |
| Producent | Kalstein |
Dostępne modele
Galeria zdjęć
Video Touch Screen Brookfield Viscometer YR05858 - YR05859
Najczęstsze pytania
Jak poznać ceny Touch Screen Brookfield Viscometer YR05858 - YR05859?
Aby poznać cenę Touch Screen Brookfield Viscometer YR05858 - YR05859, wyślij nam e-mail za pośrednictwem formularza kontaktowego AQUI.
Jakie są czasy dostawy Touch Screen Brookfield Viscometer YR05858 - YR05859?
Czas dostawy zależy od dostępności w magazynie i rodzaju transportu (lotniczy lub morski). W magazynie: lotniczy 15-30 dni, morski 45-60 dni. Poza magazynem: lotniczy 30-60 dni, morski 60-90 dni.
Jak dokonać zakupu Touch Screen Brookfield Viscometer YR05858 - YR05859?
Możesz kupić e-mailem ([email protected]), telefonicznie (+33 (0) 1 70 39 26 50) lub przez oficjalną stronę Kalstein w swoim kraju.
Jak działa gwarancja na Touch Screen Brookfield Viscometer YR05858 - YR05859?
Wszystkie urządzenia Kalstein objęte są 1-roczną gwarancją na wady produkcyjne. Gwarancja nie obejmuje szkód spowodowanych nieprawidłową instalacją lub użytkowaniem. Zobacz nasze «warunki» AQUI.
Czy mogę poprosić o wycenę online Touch Screen Brookfield Viscometer YR05858 - YR05859?
Tak, możesz poprosić o wycenę bezpośrednio na naszej oficjalnej stronie. Kliknij AQUI.
