Interpreting Results and Reading Measurements with the YR05516 Spectrocolorimeter
The YR05516 Spectrocolorimeter stands out as a sophisticated tool for color measurement, ensuring precise results in various applications. Understanding how to interpret its results and read measurements accurately is essential for operators and researchers in fields such as quality control, clinical analysis, and material testing. This article delves into the nuances of using the YR05516, providing a comprehensive guide on interpreting its readings and ensuring quality results.
Understanding the YR05516 Spectrocolorimeter

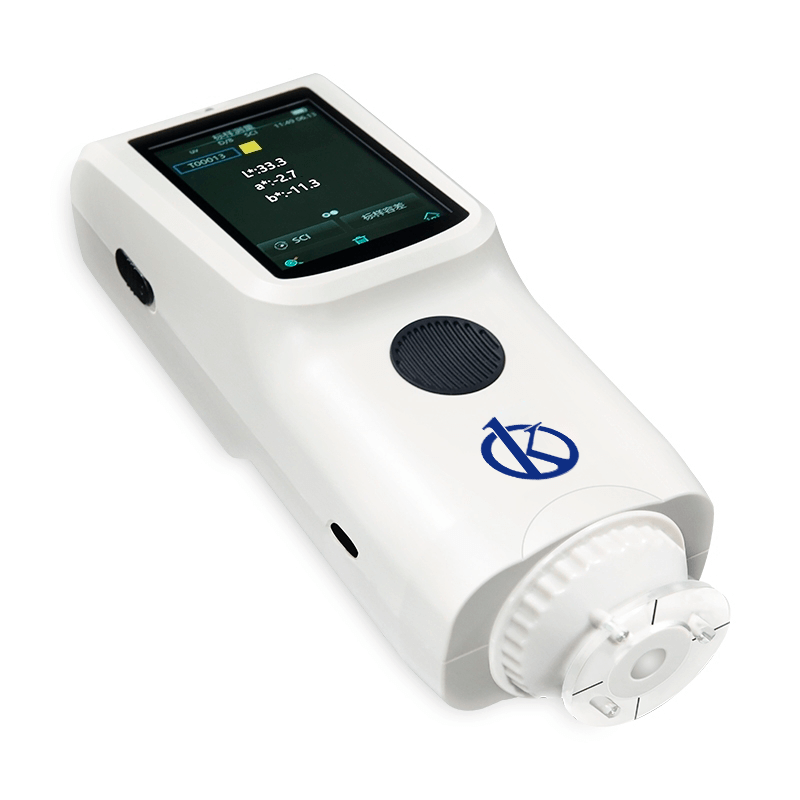

The YR05516 is a portable, high-level instrument designed for color difference measurements. It employs advanced core technology to deliver accurate readings of color metrics, including L, A, and B values, in real-time. With a measurement diameter of 8mm and a D/8 geometry configuration, it caters to a wide array of industrial requirements.
Equipped with a dual-row photodiode silicon matrix, the YR05516 achieves a repeatability control of ΔE *ab within 0.1, making it a reliable choice for users seeking precision. The integration of a full-spectrum LED light source further enhances its versatility and operational efficiency.
Technical Specifications of the YR05516
| Specification | Details |
|---|---|
| Model | YR05516 |
| Optical Geometry | D/8 (diffuse illumination, 8-degree viewing angle) |
| Light Source | Full-spectrum LED with UV source |
| Measurement Range | 400–700 nm |
| Accuracy | 0.01 |
| Battery Life | 6000 measurements within 8 hours |
| Weight | Approximately 460 g |
| Dimensions | 81 x 71 x 214 mm |
| Storage Capacity | 1000 standard pieces, 20,000 sample pieces |
| Operating Environment | 0–40℃, 0–85% RH (non-condensing) |
Interpreting Color Measurements
When using the YR05516, operators must understand how to read the outputs effectively. The primary results displayed by the device include L (Lightness), A (Green to Red), and B (Blue to Yellow) values. These values are critical in determining the color quality of materials.
The ΔE *ab formula is essential for quantifying color differences. A lower ΔE value indicates a minimal difference, while a higher ΔE suggests a significant variation in color. Operators should familiarize themselves with the acceptable ΔE thresholds for their specific industry standards.
Common Misinterpretations and Solutions
Misinterpretations can lead to significant errors in quality control processes. Here are a few common misunderstandings regarding the YR05516 results:
- Reinforcement of Absolute Values: Operators often focus solely on absolute values of L, A, and B without considering the relative ΔE. It is crucial to analyze both aspects for thorough quality checks.
- Ignoring Environmental Factors: External lighting conditions can significantly impact readings. Ensure to take measurements under standardized lighting conditions to maintain consistency.
- Assuming Consistency Across Batches: Variability in the material can affect measurements across different batches. Regular calibration of the device is required to account for any discrepancies.
Practical Examples of Reading Measurements
To solidify understanding, let’s consider practical examples:
- Example 1: A reading shows L=70, A=5, B=10, with a ΔE of 1.5. This indicates a light color with a slightly reddish hue, acceptable for most applications.
- Example 2: A reading shows L=80, A=-4, B=4, with a ΔE of 3.8. Higher ΔE suggests a noticeable difference, potentially failing quality checks.
Frequently Asked Questions
What are the main components of the YR05516 Spectrocolorimeter?
The YR05516 comprises a full-spectrum LED light source, dual-row photodiode silicon matrix sensors, a touch screen interface, and storage for measurement data. These components work together to deliver accurate and reliable color measurements.
How does the YR05516 ensure accuracy in measurements?
The YR05516 employs a calibration process that is crucial for maintaining accuracy. Regular calibration against known standards allows the device to provide precise readings of color metrics, ensuring compliance with industry standards.
What types of materials can the YR05516 be used to measure?
This spectrocolorimeter is versatile and can measure various materials, including plastics, paints, textiles, and ceramics, making it suitable for multiple industries such as manufacturing, quality control, and research.
How often should the YR05516 be calibrated?
It is recommended to calibrate the YR05516 before each use, especially after extended periods of inactivity or when measurements appear inconsistent. Regular calibration helps ensure the reliability of the results.
Can the YR05516 store measurement data?
Yes, the YR05516 can store up to 20,000 sample data points, which can be retrieved for analysis or comparison at a later time. This functionality aids in tracking quality over time.
What are the indications that the YR05516 needs maintenance?
Indicators for maintenance include inconsistent readings, failure to power on, or errors displayed on the screen. If these symptoms occur, troubleshooting should be performed, and the device may require professional servicing.
Conclusion
The YR05516 Spectrocolorimeter is an essential tool for accurate color measurement and analysis. By understanding how to interpret results and read measurements correctly, users can enhance the quality of their processes and ensure compliance with industry standards.
