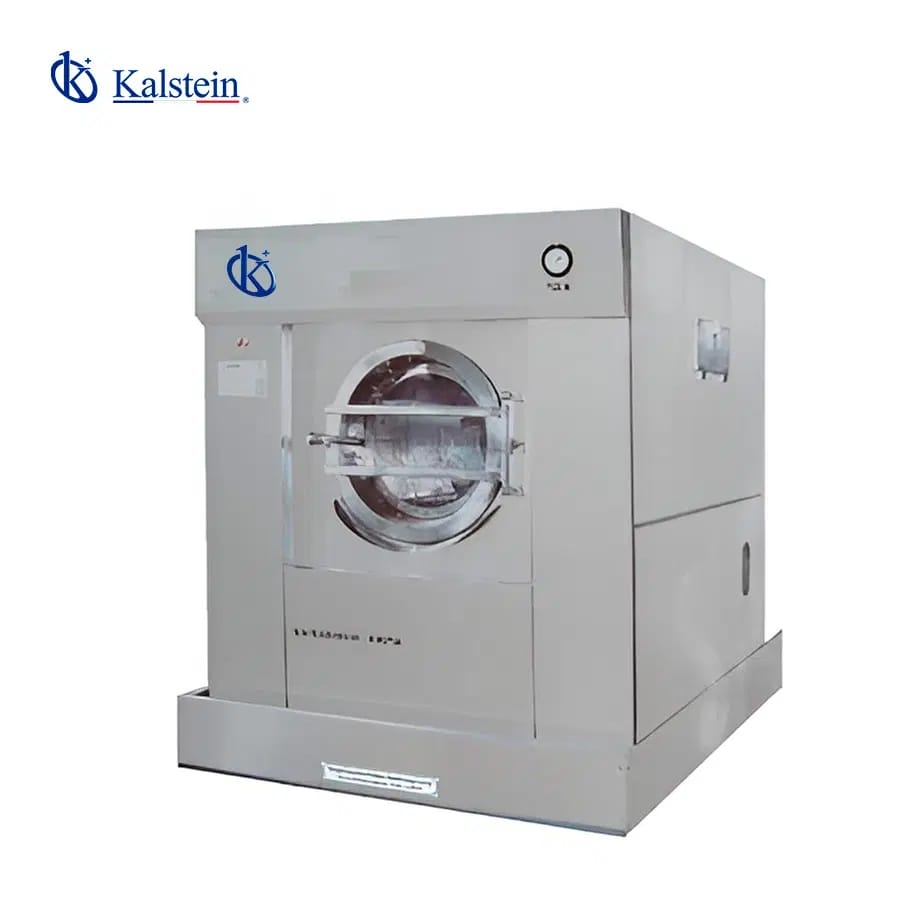

Installation and Startup Guide for the YR06301 150KG Tilt Washing Machine
The YR06301 150KG Tilt Washing Machine is designed to deliver high efficiency and durability in various washing tasks. This guide will provide you with step-by-step instructions for installation and startup, ensuring that you can operate the machine effectively from the very beginning.
Overview of the YR06301 Washing Machine
The YR06301 model features an internal and external drum combination, a rotating lifting bearing system, shock-absorbing springs, an impact reducer, and an elevating cylinder. It is engineered to provide high extraction efficiency with four different speeds tailored to the material being processed.
Technical Specifications of the YR06301
| Specification | Details |
|---|---|
| Model | YR06301 |
| Rated Capacity | 150 kg |
| Dimensions | 2500 x 2280 x 2280 mm |
| Motor Power | 18.5 kW, 1440 r/min |
| Washing Speed | 38 r/min |
| Extracting Speed | 48-580 r/min |
| Inverter Power | 20 kW |
| Water Pressure | 0.2-0.3 Mpa |
| Weight | 5000 kg |
Unboxing the YR06301
Upon receiving your YR06301 washing machine, it is crucial to unbox it carefully to avoid any damage. Follow these steps:
- Check for any visible damage on the packaging before opening.
- Remove all accessories and ensure you have received all necessary components.
- Keep the packaging materials until you confirm that the machine is functioning correctly.
Installation Procedure
Installing the YR06301 requires careful planning and execution. Follow these steps for optimal results:
1. Selecting the Installation Location
Choose a site that allows sufficient space around the machine for operation and maintenance. Ensure the floor is solid and level to support the weight of the machine.
2. Anchoring and Leveling
Once positioned, use appropriate anchors to secure the machine to the floor. Adjust leveling feet to ensure the machine is perfectly aligned horizontally.
3. Utility Connections
Connect the water supply and drain pipes, ensuring they meet the specifications outlined in the technical manual. Properly install the electrical connection according to local regulations.
Power-Up Sequence
Before operating the YR06301, follow the power-up steps below:
- Ensure all utility connections are secure and leak-free.
- Switch on the main power supply.
- Check the control panel for any error codes. If everything is normal, proceed to the next steps.
Calibration and First-Run Checks
Following installation, it is essential to calibrate the washing machine:
1. Load Calibration
Load the machine with a sample weight to test its capacity and ensure that it functions effectively at maximum load.
2. Speed Settings
Adjust the speed settings based on the material type being washed, as advised in the user manual.
3. Test Cycle
Run a test cycle with no laundry to ensure that all components are working correctly. Monitor for any irregular noises or error codes.
Common Setup Mistakes
Avoid the following common pitfalls during installation and startup:
- Inadequate leveling can lead to vibrations and operational issues.
- Neglecting to secure the machine can cause accidents during operation.
- Improper connection of water or power supplies can result in malfunctioning.
Frequently Asked Questions
How do I perform maintenance on the YR06301 washing machine?
Regular maintenance includes cleaning the filters, checking water supply lines, and ensuring that no debris is clogging the drainage system. Refer to the user manual for detailed maintenance schedules and procedures.
What should I do if the YR06301 displays an error code?
Consult the error code list in the user manual to determine the problem. Common issues can often be resolved by resetting the machine or checking utility connections.
Can the YR06301 be used for different types of fabrics?
Yes, it can handle various types of fabrics. Adjust the speed settings according to the material being processed for optimal results.
What are the power requirements for the YR06301 washing machine?
The YR06301 requires a 20 kW connection for the inverter and is designed to operate efficiently on standard industrial power supplies.
How often should I run a calibration on the YR06301?
Calibration should be performed regularly, especially after any maintenance or if there are significant changes in the load type being washed. A monthly check is recommended.
Where can I obtain replacement parts for the YR06301?
Replacement parts can be ordered through authorized distributors or directly from the manufacturer’s official channels. Always ensure compatibility with the YR06301 model.
What additional accessories are recommended for the YR06301?
Consider purchasing compatible accessories such as specialized detergents, fabric softeners, and maintenance kits to enhance the washing experience and machine longevity.
