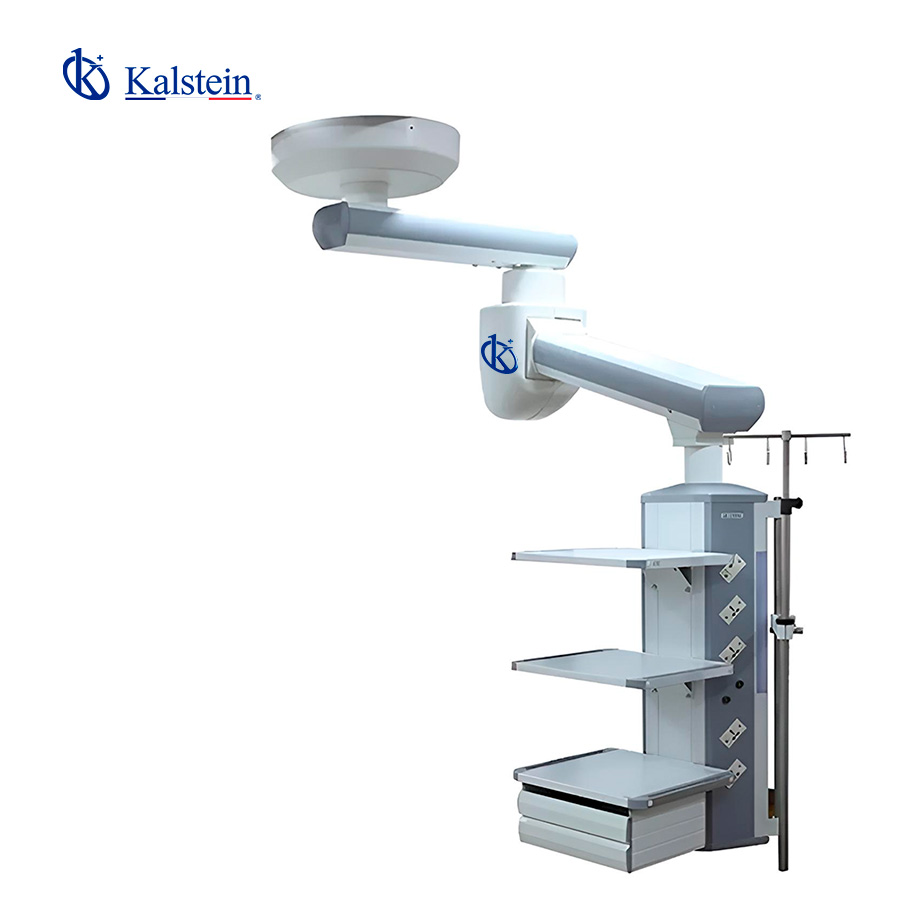

Installation and Commissioning Guide for the YR02088 Double Arm Endoscopy Pendant
The YR02088 Double Arm Endoscopy Pendant is an essential piece of medical equipment, specifically designed for surgical environments, emergency rooms, intensive care units, and recovery rooms. This guide will provide detailed instructions for the installation and commissioning of the YR02088, enabling operators to ensure optimal performance and safety.
Overview of the YR02088 Endoscopy Pendant
The YR02088 model features a dual-arm design with a rotation capability of 340°, allowing for precise positioning of terminal boxes. The pendant is constructed from imported aluminum alloy with a unique surface treatment to prevent oxidation and rust. It is designed to accommodate medical staff's needs by providing easy access to equipment. The pendant also includes various customizable gas outlets and interfaces, meeting multiple international standards.
Technical Specifications
| Specification | Details |
|---|---|
| Model | YR02088 |
| Arm Rotating Radius | 1000 mm |
| Arm Rotating Angle | 340° |
| Braking System | Friction brake |
| Maximum Load Capacity | 160 kg |
| Electrical Socket | 2 earth studs |
| Standard Configuration | 2 oxygen (O2), 1 air, 1 vacuum suction (VAC), 10*10A power outlets, 1 network socket, 1 grounding terminal, 1 column length L=1000mm, 1 guideway extension arm (240*240mm) |
Unboxing and Initial Setup
Upon receiving the YR02088, begin by unboxing the unit and checking all components against the packing list. Ensure that all parts are included and undamaged. The following steps outline the initial setup:
- Inspect all delivered components: Check for any visible damage, and ensure all parts are accounted for.
- Prepare the installation site: Ensure the ceiling structure can support the weight of the pendant and that there is adequate space for operation.
- Gather necessary tools: Common tools required include a power drill, level, wrench set, and safety equipment.
Anchor and Leveling
Correct anchoring and leveling are vital for the successful installation of the YR02088. Follow these steps:
- Mark and drill holes: Use a level to mark the drill points on the ceiling, ensuring they align with the pendant's mounting brackets.
- Install anchors: Insert appropriate weight-rated anchors into the drilled holes.
- Mount the pendant: Secure the pendant's mounting brackets to the anchors, ensuring the unit is level and aligned correctly.
Power-Up Sequence and Calibration
After mounting the pendant, follow these steps for the power-up sequence:
- Connect the electrical supply: Ensure all connections are secure, and turn on the main power supply.
- Initial power-up: Check if the pendant powers on correctly, paying attention to any error indicators.
- Perform calibration: Follow the manufacturer’s instructions to calibrate any integrated systems, ensuring accurate operation.
Common Installation Mistakes
During installation, operators may encounter common mistakes. Here are a few to watch out for:
- Incorrect leveling: Failure to mount the pendant level can lead to operational issues and equipment wear.
- Neglecting safety precautions: Always wear safety equipment and ensure the work area is clear.
- Improper electrical connections: Ensure that all electrical connections meet relevant safety standards.
Frequently Asked Questions
What is the maximum load capacity of the YR02088 Double Arm Endoscopy Pendant?
The YR02088 has a maximum load capacity of 160 kg, making it suitable for various medical equipment.
How do I calibrate the YR02088 after installation?
Calibration instructions can be found in the user manual. Typically, it involves adjusting settings through the control interface to ensure accurate operational functionality.
What are the standard gas outlets available in the YR02088?
The standard configuration includes 2 oxygen (O2) outlets, 1 air outlet, and 1 vacuum suction (VAC) outlet.
Can the YR02088 be adjusted for different ceiling heights?
Yes, the YR02088 has an adjustable arm and can be configured to accommodate various ceiling heights during installation.
What are the recommended safety practices during installation?
Always wear appropriate personal protective equipment, ensure proper tools are utilized, and follow manufacturer guidelines for installation safety.
