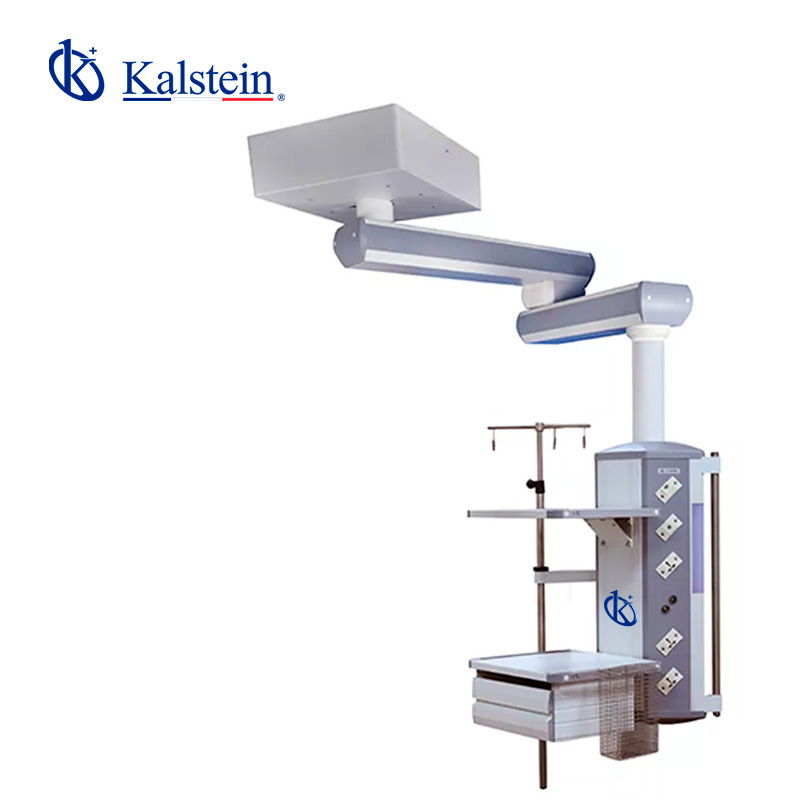

Installation and Commissioning Guide for the YR02078 Single Arm Endoscopy Pendant
The YR02078 Single Arm Endoscopy Pendant is designed to enhance operational efficiency in surgical settings, emergency rooms, intensive care units, and recovery rooms. This guide serves to assist medical personnel in the installation and commissioning of this versatile device, ensuring optimal performance and safety.
Unboxing and Initial Setup
Before installation, carefully unbox the YR02078 pendant, ensuring you have all components as listed in the manual. An unboxing checklist is essential to verify that everything is accounted for:
- Single Arm Endoscopy Pendant Unit
- Mounting Hardware
- Instruction Manual
- Electrical Connection Cables
- Adapters (German, British, American, Australian)
Installation Process Overview
The YR02078 is designed for ceiling suspension, allowing it to rotate a full 340 degrees. Follow these steps for proper installation:
- Select Installation Location: Ensure the area has sufficient ceiling height and stability to accommodate the pendant.
- Ceiling Mounting: Use the provided mounting hardware to securely anchor the pendant to the ceiling.
- Leveling the Unit: Before finalizing the installation, verify that the pendant is level to maintain proper functionality.
- Electrical Connections: Connect the necessary power cables according to the electrical specifications detailed in the manual.
Checking and Configuring Electrical Connections
To ensure that the YR02078 functions correctly, examine the electrical connections:
- Verify that the unit is connected to the appropriate voltage and configuration (2 earth studs for grounding).
- Be mindful of the maximum load capacity of 160 kg, ensuring the pendant is not overloaded.
First Use Calibration and Testing
Once installed, perform the initial power-up sequence:
- Activate the power supply and check if all indicators are functioning.
- Test the rotation of the arm to confirm it operates smoothly within the 340-degree range.
- Ensure that all attached devices (infusion bags, pumps) are securely mounted and operational.
Technical Specifications of YR02078
| Specification | Details |
|---|---|
| Model | YR02078 |
| Arm Rotating Radius | 1000 mm |
| Arm Rotating Angle | 340° |
| Braking System | Friction brake |
| Maximum Load Capacity | 160 kg |
| Electrical Socket | 2 earth studs |
| Standard Configuration | 1 Oxygen (O2), 1 Air, 1 Vacuum Suction (VAC), 10x 10A Power Outlets, 1 Network Socket, 1 Grounding Terminal, 1 Column Length (L=1000mm), 1 Guideway Extension Arm |
| Accessories | 2 Equipment Shelves, 1 IV Pole & Infusion Pump Rack |
Common Setup Mistakes and How to Avoid Them
During installation and commissioning, certain pitfalls can hinder the performance of the YR02078:
- Improper Ceiling Mounting: Ensure that the pendant is firmly and correctly anchored to avoid accidents.
- Neglecting to Level the Pendant: An unlevel unit can cause operational inefficiencies.
- Inadequate Electrical Setup: Check all connections to avoid power fluctuations.
Frequently Asked Questions
What are the key features of the YR02078 Single Arm Endoscopy Pendant?
The YR02078 features a 340-degree rotation, a maximum load capacity of 160 kg, and multiple standard configurations including oxygen, air, and vacuum suction. It is designed for use in various medical environments.
How does the braking system of the YR02078 work?
The YR02078 utilizes a friction braking system that allows for controlled movement and stabilization of the arm during procedures. An optional pneumatic brake can also be integrated for enhanced stability.
What are the installation requirements for the YR02078?
Installation requires a secure ceiling structure that can support the weight of the pendant. Adequate electrical connections must also be accessible, specifically 2 earth studs for grounding.
How can I ensure the YR02078 is properly calibrated?
After installation, power up the unit and check that all indicators are functional. Test the arm's rotation and ensure that attached devices are operating correctly.
What common issues might arise during the commissioning of the YR02078?
Common issues include improper mounting, inadequate leveling, and loose electrical connections. Ensuring each step is followed carefully can help prevent these problems.
Are there optional accessories available for the YR02078?
Yes, the YR02078 has optional accessories including specialized mounting options and additional equipment shelves to enhance functionality in the surgical environment.
Where can I get support for my YR02078 installation?
For installation support, refer to the instruction manual or contact the manufacturer's customer service for specialized assistance.
