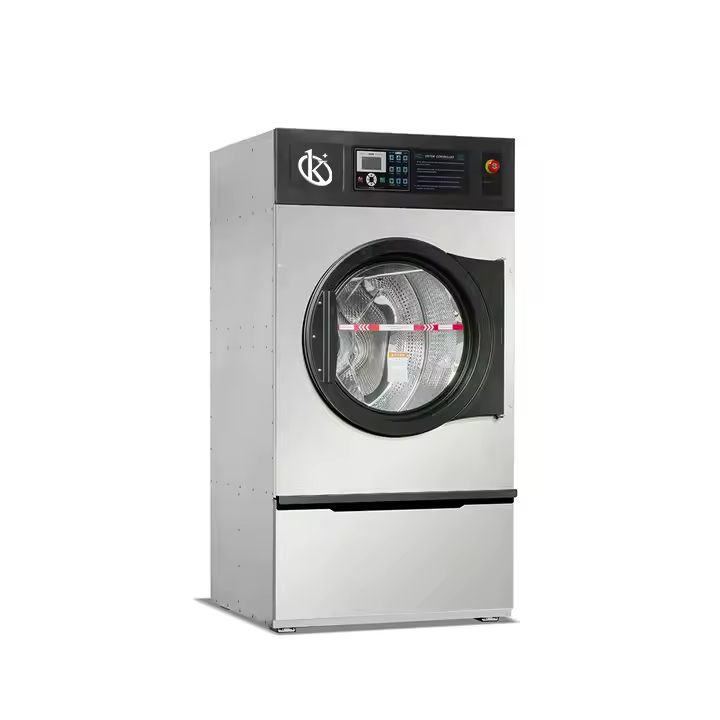

Installation and Commissioning Guide for the YR06304 Tumble Dryer
The YR06304 Tumble Dryer is engineered for efficiency and reliability in various industrial settings. To maximize its lifespan and functionality, proper installation and commissioning are crucial. This comprehensive guide outlines the necessary steps to ensure your YR06304 is set up correctly, optimizing its features and performance.
Unboxing Checklist
Before installation, it is essential to check all components and accessories included with the YR06304. An unboxing checklist ensures that no vital parts are missing and that the dryer is ready for setup.
- YR06304 Tumble Dryer unit
- Instruction manual
- Power cable
- Cooling fan system
- Accessory toolkit
- Warranty card
Site Requirements and Preparation
Ensure that the installation site meets the necessary requirements for the YR06304 Tumble Dryer. This includes adequate space, ventilation, and access to utilities.
| Requirement | Specification |
|---|---|
| Operating Voltage | 220/380 V |
| Power Supply | Electrical or Gas |
| Minimum Clearance | At least 1 meter around the unit |
| Ventilation | Proper airflow to dissipate heat |
Anchoring and Leveling the Dryer
To ensure stable operation, the YR06304 must be properly anchored and leveled. This section details the steps to achieve a secure installation.
- Position the dryer in the desired location.
- Use a level to check that the unit is even on all sides.
- Anchor the dryer to the floor using the provided mounting hardware.
Power-Up Sequence
After proper placement and leveling, powering up the YR06304 requires careful attention to ensure no damage occurs during initial startup.
- Connect the power cable to the designated outlet.
- Check that all safety interlocks are engaged.
- Turn on the main power switch and verify that the control panel lights are functioning.
First-Run Calibration
After powering the unit, it is essential to calibrate the YR06304 to ensure accurate performance. Follow these steps for calibration:
- Set the dryer to a test cycle using the control panel.
- Monitor the temperature settings and airflow.
- Adjust settings as necessary based on the initial readings.
Common Setup Mistakes to Avoid
During installation, some common mistakes can hinder the performance of the YR06304. Here are a few to watch out for:
- Improper leveling leading to vibration and noise.
- Insufficient power supply causing erratic operation.
- Neglecting safety interlocks, leading to potential hazards.
Technical Specifications of the YR06304
Understanding the specifications of the YR06304 is crucial for optimal use and maintenance. Below is a detailed table of its technical specifications.
| Model | YR06304 |
|---|---|
| Capacity | 15 kg |
| Drum Dimension | 750 x 670 mm |
| Drum Volume | 296 L |
| Motor Power | 55 kW |
| Heating Power | 15 kW |
| Fan Power | 55 kW |
| Steam Pressure | 0.4-0.5 Mpa |
| Dimensions | 340 x 1200 x 1560 mm |
| Weight | 330 kg |
| Material | Stainless Steel, Coated |
Frequently Asked Questions
What is the optimal voltage for the YR06304 Tumble Dryer?
The optimal voltage for the YR06304 Tumble Dryer is 220/380 V, ensuring efficient operation across various environments.
How do I properly level the YR06304 during installation?
To properly level the YR06304, use a standard level to check each side of the unit and adjust using leveling feet as needed to ensure stability and performance.
What should I do if the dryer does not power on after installation?
If the dryer does not power on, check the power connections, ensure that the safety interlocks are engaged, and verify that the main power switch is turned on.
How can I ensure accurate temperature readings during operation?
Accurate temperature readings can be ensured by performing a first-run calibration and regularly monitoring the control panel for any anomalies during operation.
What are some common mistakes made during the installation of the YR06304?
Common mistakes include improper leveling, neglecting safety features, and using an insufficient power supply, which can all negatively impact the dryer’s performance.
How often should I perform maintenance on the YR06304?
Regular maintenance should be performed every six months to ensure that all components are functioning optimally and to extend the lifespan of the dryer.
What is the warranty period for the YR06304?
The YR06304 typically comes with a standard warranty covering parts and labor for a period of one year from the date of purchase, providing peace of mind for users.
