Installation and Startup Guide for the Recirculation Chiller YR02300

This guide provides detailed steps for installation and initial setup of the YR02300 Recirculation Chiller, ensuring optimal performance in various laboratory a

Installation and Startup Guide for the Recirculation Chiller YR02300

Installation and Startup Guide for the Recirculation Chiller YR02300

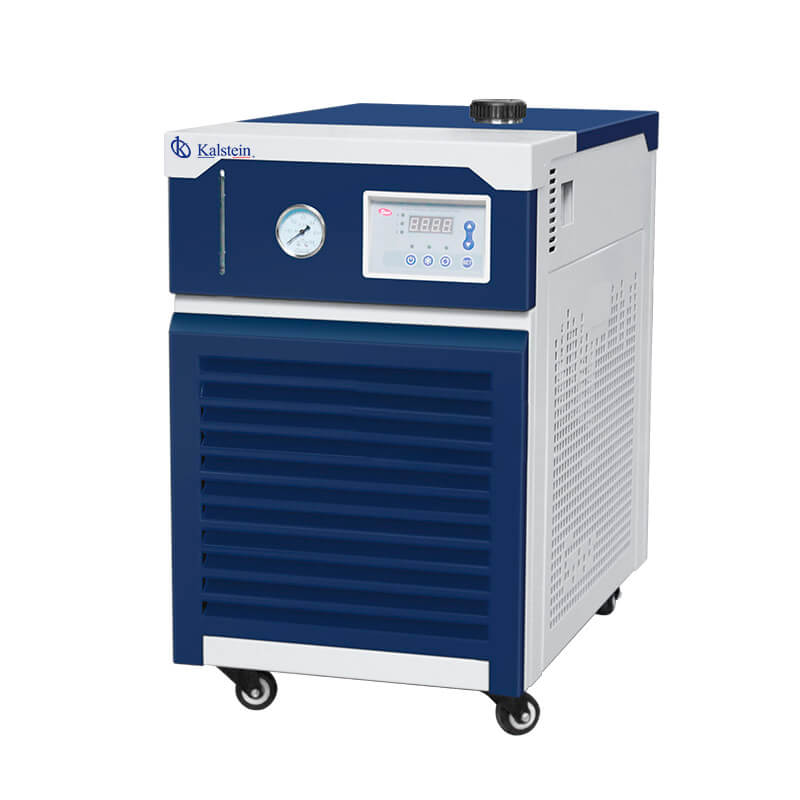

The YR02300 Recirculation Chiller is a crucial piece of equipment designed to provide consistent low-temperature conditions for inspections, chemical experiments, biological and physical studies. This guide aims to assist operators in the installation and initial setup of the YR02300, ensuring it functions optimally in applications such as medical and healthcare processes, food industry practices, chemical industries, and educational settings.

Understanding the Importance of Proper Installation

Correct installation is vital for the YR02300 to operate efficiently. This section outlines the critical aspects of the installation process, including site selection and environmental conditions.

Site Selection and Environmental Conditions

Before installation, consider the following environmental factors:

  • Temperature Range: Ensure the installation area maintains ambient temperatures conducive to the operation of the YR02300.
  • Humidity Levels: High humidity can negatively impact performance. The ideal range should be defined.
  • Ventilation: Proper airflow helps maintain optimal operating conditions.
  • Vibration and EMI: Avoid placing the chiller near sources of vibration or electromagnetic interference which may affect functionality.

Unboxing and Initial Preparation

Upon receiving the YR02300, follow this checklist to prepare for installation:

  • Inspect the packaging for any visible damage during transit.
  • Verify that all components are included according to the user manual.
  • Gather necessary tools for installation such as wrenches, screwdrivers, and levelers.

Physical Installation Steps

This section describes the step-by-step process to physically install the YR02300. 1. Positioning: Place the chiller on a stable, level surface with sufficient clearance for airflow and maintenance access.

2. Anchoring: Secure the unit if necessary to prevent movement during operation.

3. Leveling: Use a level to ensure the chiller is properly aligned. Adjust feet as needed.

4. Connecting Water Supply: Follow the guidelines to connect the inlet and outlet hoses securely.

Electrical Connections

Ensuring the YR02300 has the correct electrical supply is critical for safe and efficient operation.

1. Power Supply Specifications: Verify that the power supply matches the YR02300 requirements (220-240V~, 50/60Hz).

2. Grounding: Properly ground the unit to prevent electrical hazards.

3. Circuit Protection: Use appropriate fuses or circuit breakers to protect the chiller.

Initial Setup and Calibration

Once physically installed, proceed to the initial setup:

1. Power-Up Sequence: Turn on the main power supply and follow the starting procedures outlined in the manual.

2. First-Run Calibration: Adjust settings to match the desired operational parameters (temperature, flow rate).

3. Monitoring System Check: Utilize the built-in monitoring systems to ensure all functions are operational.

Common Installation Mistakes

To avoid common pitfalls during installation, consider the following:

  • Ensure sufficient space around the unit for ventilation and maintenance.
  • Double-check connections to avoid leaks or electrical issues.
  • Follow the manufacturer's guidelines closely to prevent warranty issues.

Technical Specifications of YR02300

ModelPower SupplyCooling Capacity (W)Weight (kg)Dimensions (mm)
YR02300220-240V~, 50/60Hz6000 @ 0°C195650W x 1055D x 1070H

Frequently Asked Questions

What is the optimal operating temperature range for the YR02300?

The YR02300 operates optimally within a temperature range of -30°C to 5°C.

How do I calibrate the YR02300 after installation?

Calibration involves adjusting settings via the control panel to match desired operational parameters. Refer to the user manual for detailed steps.

What should I do if the chiller does not power on?

Check the power supply, ensure all connections are secure, and verify circuit protection measures are functioning.

How can I maintain the YR02300 for longevity?

Regular maintenance includes cleaning filters, checking connections, and monitoring performance metrics.

Where can I find replacement parts for the YR02300?

Replacement parts can be sourced through authorized distributors or directly from the manufacturer.

What safety measures should I consider during installation?

Ensure the chiller is grounded, check for leaks, and maintain proper ventilation to prevent overheating.

Can the YR02300 be used in varying industrial applications?

Yes, the YR02300 is versatile and suitable for various applications including clinical, industrial, and educational purposes.
