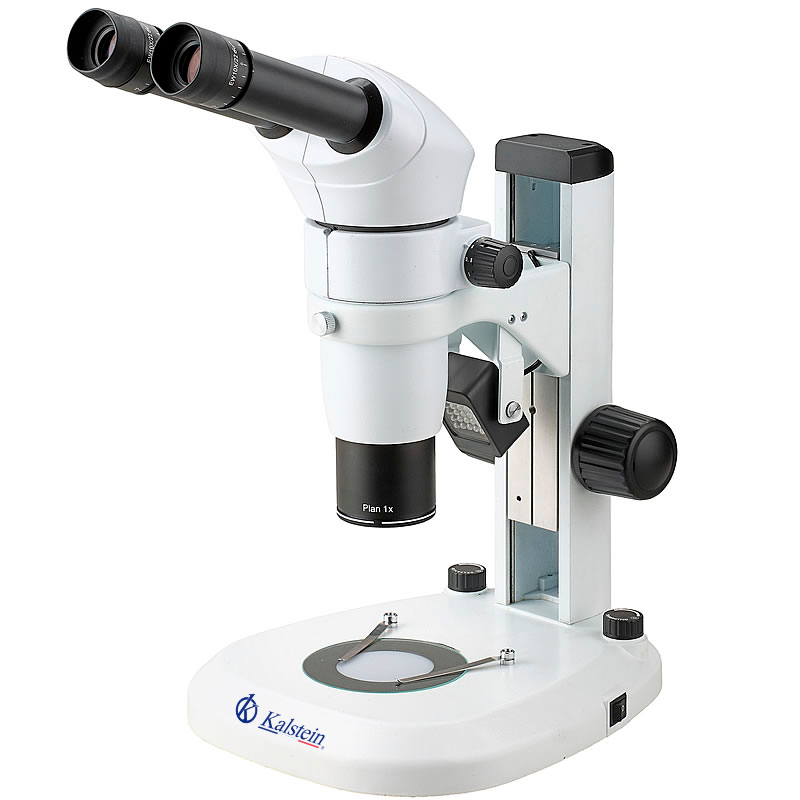

Zoom Stereo Microscope YR0246 // YR0248
Manufacturer: Kalstein
Manufacturer: Kalstein
Product Description
- Parallel Optical System, Module Design to Add Function Easily
- Large Zoom Ratio Up to 1:10 With Tilting Head 0°-35° Viewing Angle Adjustable for User
- Transmit & Reflect LED Illumination, Brightness Adjustable, Working Life 6000 Hours
- Complete Accessories Include Polarizing, Dark Field, Fluorescent Attachment
- Plan Apochromatic Objective 0.5x Optional
Technical Specifications
| Model | YR0246 | YR0247 | YR0248 | |
| Optical System | Parallel Optical System, Module Design to Add Function Easily | ● | ● | ● |

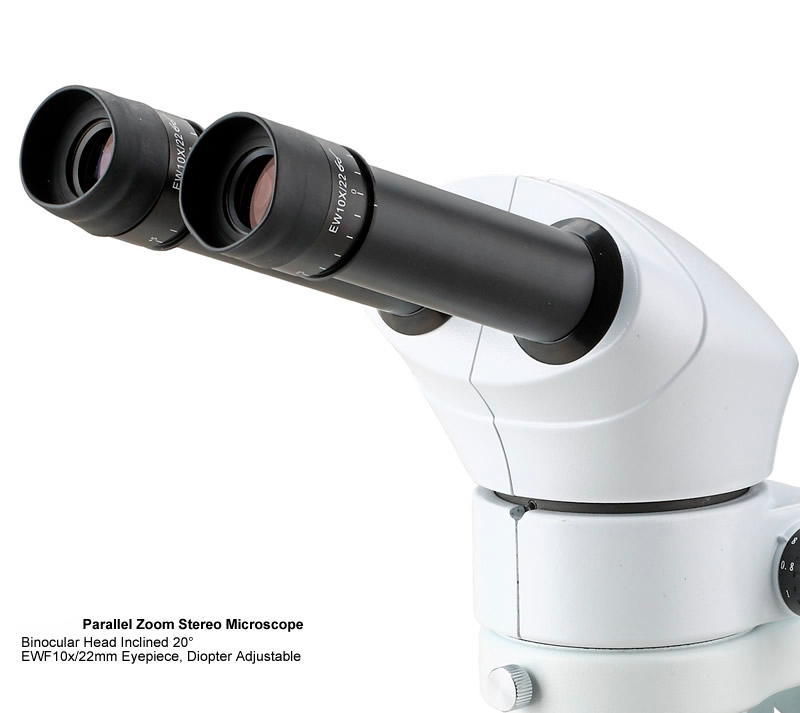

| Head | Binocular Head 20° Inclined | ● | ● | ● |
| Titling Head 0°-35° Viewing Angle Adjustable for User | o | o | o | |
| Eyepiece | Extra Wide Field Eyepiece EWF10x/22mm，Diopter Adjustable,Interpupillary 55-75mm | ● | ● | ● |
| Zoom Body | 0.8~5.0x, Zoom Ratio 1:6 | ● | – | – |
| 0.8~6.4x, Zoom Ratio 1:8 | – | ● | – | |
| 0.8~8.0x, Zoom Ratio 1:10 | – | – | ● | |

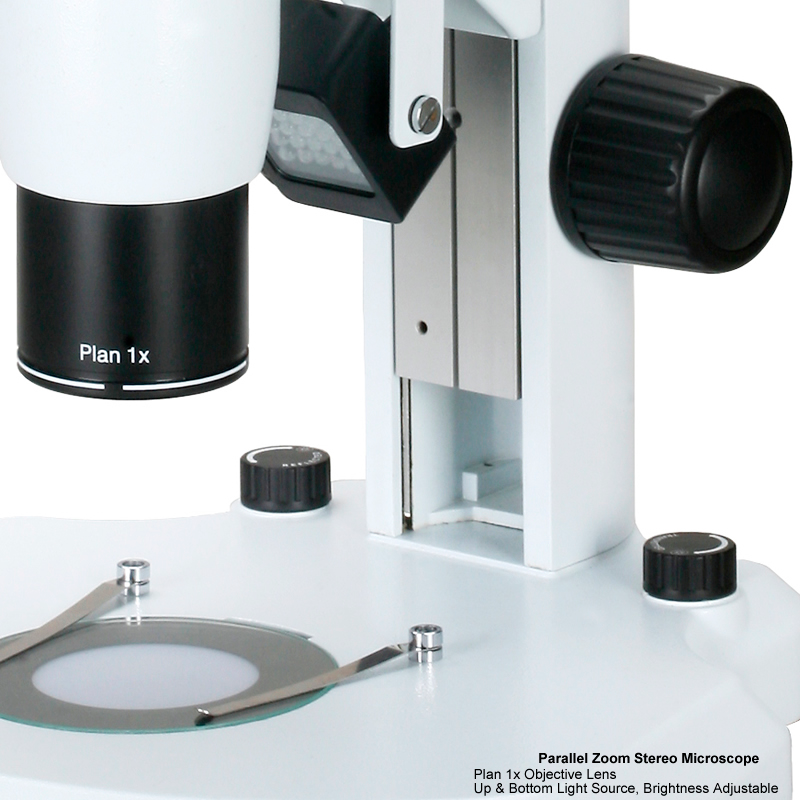

| Auxiliary Lens | Plan Achromatic Lens 1.0x | ● | ● | ● |
| Working Distance | 78mm | ● | ● | ● |
| Focusing | Coarse Focusing Konb, Range 105mm | ● | ● | |
| Coaxial Coarse & Fine Focusing Knob, Fine Division 0.015mm, Coarse Stroke 38.4mm/Rotation, Fine Stroke 1.5mm/Rotation, Moving Range 105mm , Focusing Mount Inner Dia. 76mm | ● | |||
| Illumination | Transmit & Reflect LED Illumination, Brightness Adjustable, Working Life 6000 Hours | |||
| Model | Cata. No. | |||
| Head | Titling Head 0°-35° Viewing Angle Adjustable for User | YR0248-op1 | ||
| Model Change to A23.1005 | ||||
| Eyepiece | WF15x/16mm | YR0248-op2 | ||
| WF20x/12mm | YR0248-op3 | |||
| WF30x | YR0248-op4 | |||
| Auxiliary Lens | Plan Apochromatic Lens 0.5x | YR0248-op5 | ||
| Plan Achromatic Lens 1.0x | YR0248-op6 | |||
| Plan Achromatic Lens 2.0x | YR0248-op7 | |||
| Achromatic Lens 0.3x | YR0248-op8 | |||
| Achromatic Lens 0.5x | YR0248-op9 | |||

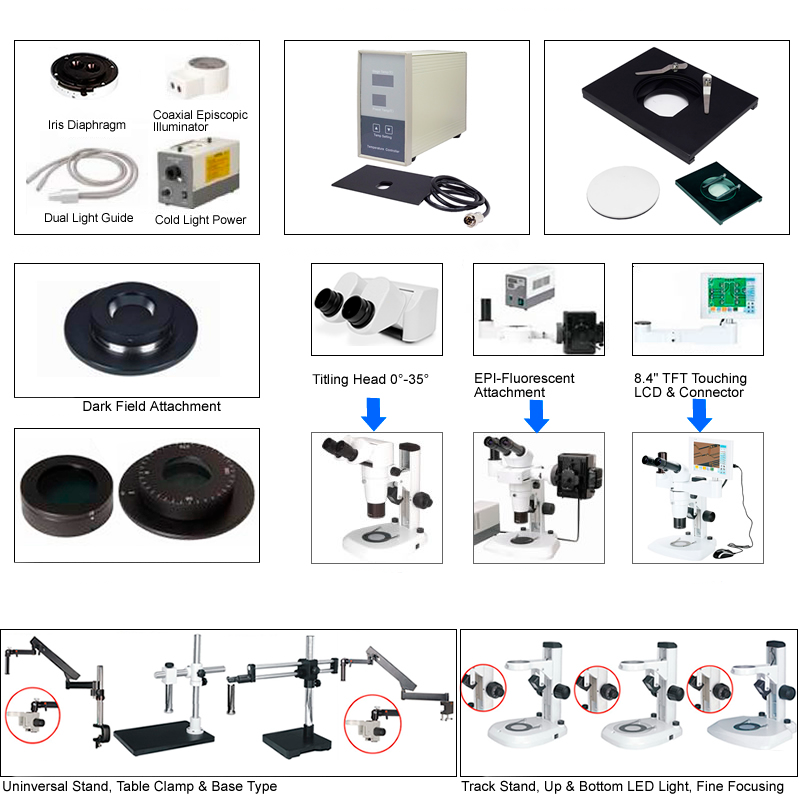

| Illumination | Coaxial Illumination Set: | YR0248-op4 | ||
| –Cold Light Power Supplier, | ||||
| –Dual Light Guide, | ||||
| –Coaxial Episcopic Illuminator, | ||||
| –Iris Diaphragm | ||||
| Iris Diaphragm | YR0248-op5 | |||

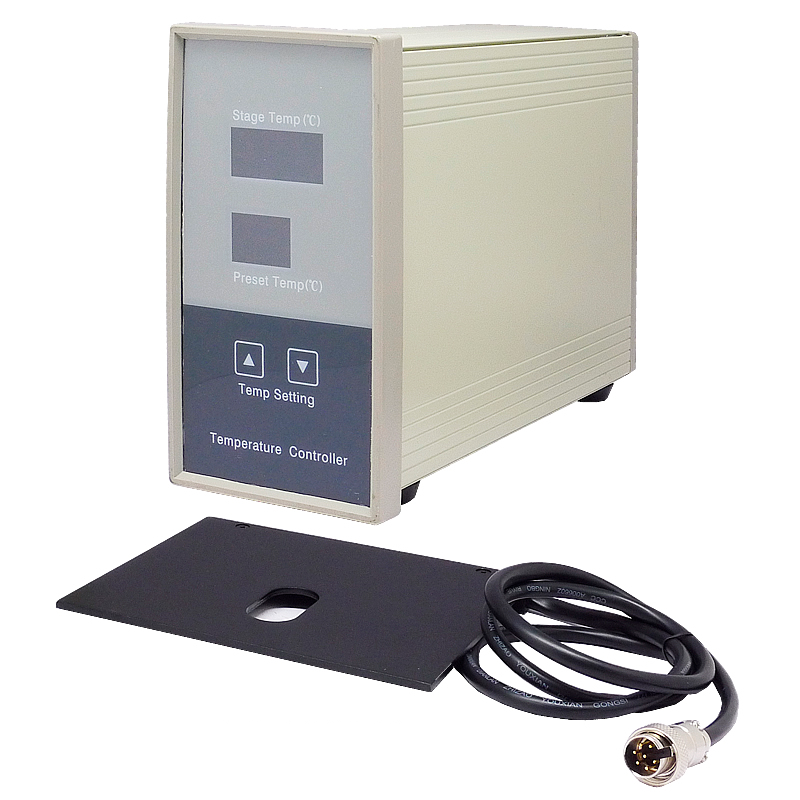

| Working Stage | Temperature Control Stage | YR0248-op6 | ||

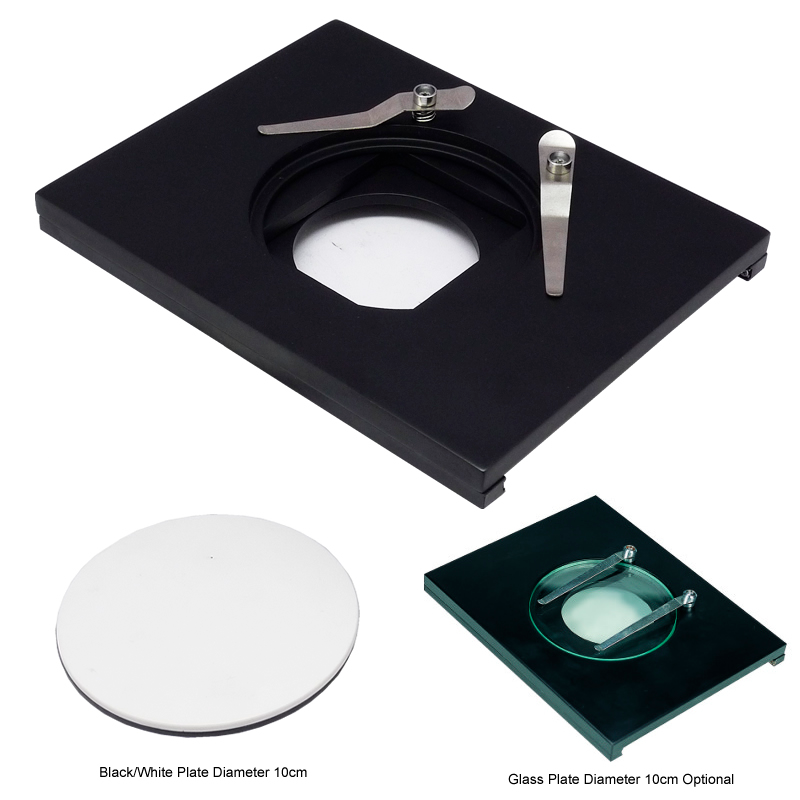

| Movable Working Stage | YR0248-op7 | |||
| StandClick to See | Universal Table Stand | YR0248-op8 | ||
| YR0248-op9 | ||||
| Track Stand, Transmit & Reflect Light Source | YR0248-op10 | |||
| With Coarse & Fine Focusing Optional, Model -F, Like A54.1019-F | YR0248-op11 | |||
| YR0248-op12 | ||||
| YR0248-op13 | ||||
| YR0248-op14 | ||||

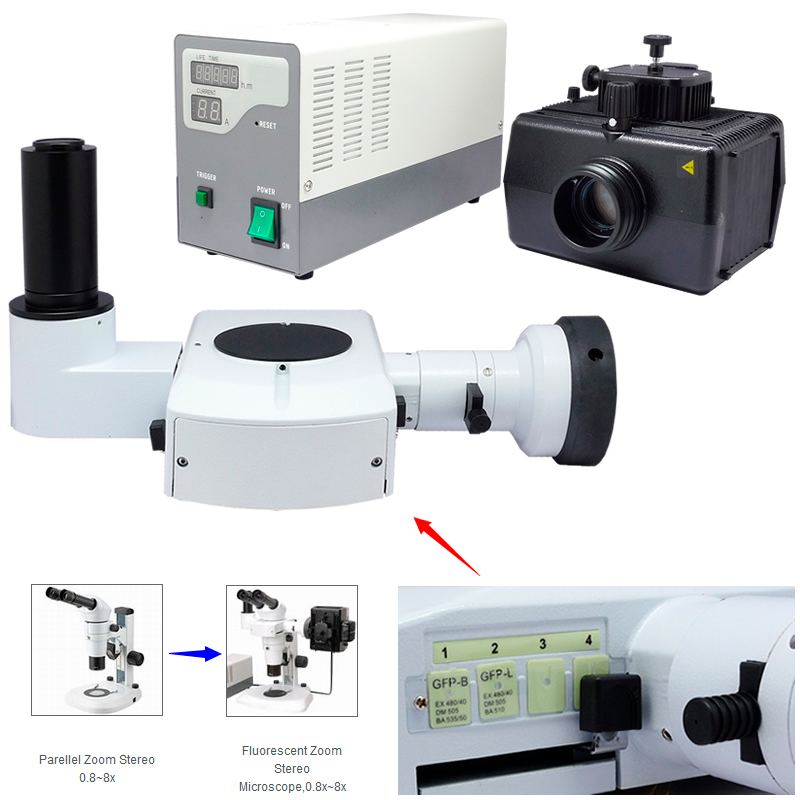

| Fluorescent | EPI-Fluorescent Attachment For Stereo Microscope | YR0248-op15 | ||
| Dark Field | Dark Field Attachment For Stereo Microscope | YR0248-op16 | ||
| Polarizing | Simple Polarizing Attachment For Stereo Microscope | YR0248-op17 | ||
| LCD Monitor | 8.4″TFT Touch Screen LCD Monitor & Connector | YR0248-op18 | ||

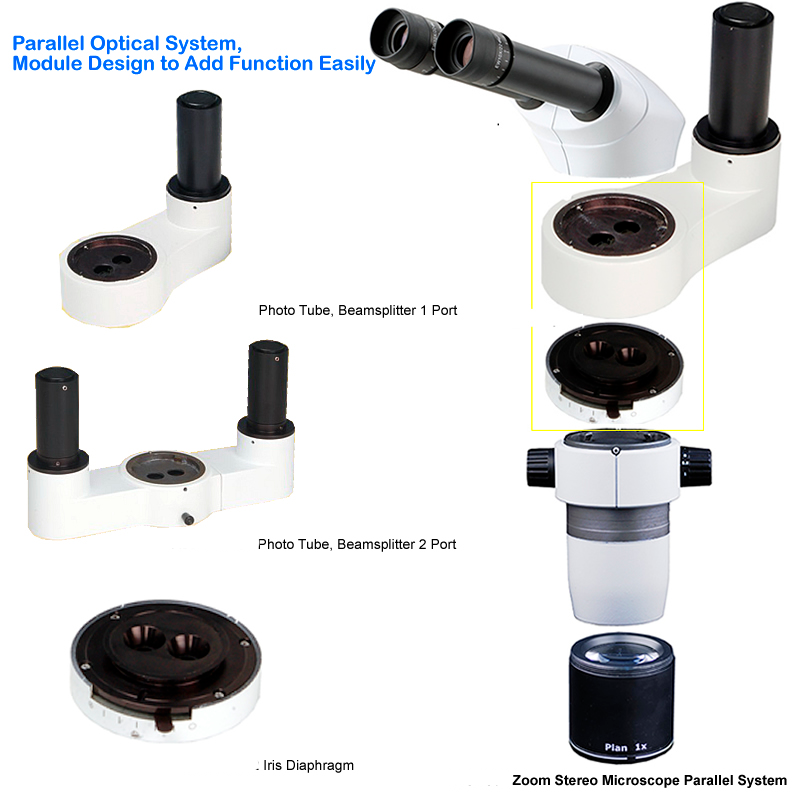

| Adapter | Photo Tube, Beamsplitter 1 Port | YR0248-op19 | ||
| Photo Tube, Beamsplitter 2 Port | YR0248-op20 | |||
| Photo Adapter, 2.0x, For Nikon or Canon DIgital SLR Camera | YR0248-op21 | |||
| C-mount 0.5x | YR0248-op22 | |||
| C-mount 1.0x | YR0248-op23 | |||
Additional Information
| Weight | 9,5 kg |
|---|---|
| Dimensions | 36,6 × 31,1 × 65,3 cm |
| Model | YR0246, YR0247, YR0248 |
