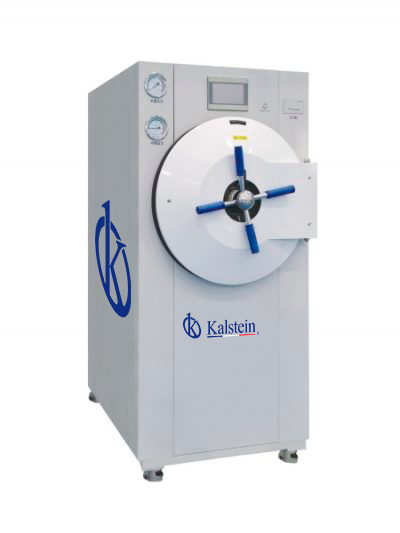

Touch Screen Horizontal Pulsating Vacuum Autoclave YR05643 // YR05646-1

ManufacturerKalstein

Description

  • Type: Horizontal Pulsating Vacuum Autoclave
  • Door number: Single door/Double door
  • Class: Class B
  • Vacuum system, pre-vacuum and post-vacuum.
  • Control: PLC+ HMI + Printer
  • Display: 7 inch LCD color touch screen
  • Steam generator: Built-in steam generator
  • Door: Safety interlock door, with safety shield and switch
  • Loading: Sterilization tray
  • Water tank: Yes
  • Drying function: Vacuum drying
  • Printer: Built-in printer
  • Language: English
  • Voltage: 380V. 50/60Hz
Product Features
  • The machine adopts cylindrical horizontal double-layer design structure, with chamber and jacket, which is conducive to the steam first entering the jacket for preheating, ensuring the preheating of the chamber and the uniformity of the drying temperature.
  • Water adding, pulsing vacuum, heating up, sterilizing, vacuum drying, exhaust, printing process are fully automatic.
  • Stainless steel door with radial lever can effectively lock tight the door cover and prevent steam leakage, at the same time, equipped with door safety interlock deviceand safety shield.
  • The door gasket is made of high-quality silicone, high temperature resistant, durable and not deformed.
  • PLC control system, preset professional and systematized sterilizationprograms, testing program and user-defined program. LCD color touch screen operation, realized program selection, parameter setting, printing and others functions. Real-time display temperature, pressure, time, running status, fault alarm, etc.
  • Built-in high quality vacuum pump, to ensure effective removal of the air so as to get the optimum saturate steam.
  • Unique pulse vacuum drying procedure is designed, and the residue moisture of instrument less than 0.2%.
  • Equipped with water level cutoff sensor and water level indicator.If water shortage, the machine will stop running.
  • Perfect fault warning system is designed, and fault messages are shown on touch screen display real-timely.
  • The beep will sound once the sterilization cycle completes and messages are shown on touch screen display at the same time.
  • Build-in efficient steam generator, microcomputer temperature control, time and energy saving.
  • The chamber, door, water tank, steam generator, pipeline are made of AISI304.
  • Equipped with 0.22um HEPA filter.
  • Perfect authority management system to avoid misoperation.
  • Built-in printer, printingthe entire sterilization cycle.
  • With two pressure temperature gauges, real-time display of the temperature and pressure of the inner chamber and jacket.
Safety Protection Device
  • Heater protection
  • Anti-dry heating
  • Door safety interlock device: The program can’t start up when the door is not closed well. When the pressure of chamber is not 0, the door can’t be opened.
  • Over-temperature protection & Over-pressure protection.
  • Automatic release safety valve: The safety valve will be open automatically when the inner pressure or temperature over set pressure or temperature.
  • Over current protect.
  • Electric safety protective device: Fuse protects control units when short circuit or overload occurs.
  • Overheating protection device: High temperature deviation in chamber actuates protective device cuts off the heating source immediately.
  • Vacuum pump overload: The vacuum pump stops and alarms once its motor is overload or blocked when vacuum pump running.
Technical Specifications
Model YR05643 YR05643-1 YR05644 YR05644-1 YR05645 YR05645-1 YR05646 YR05646-1
Design pressure -0.1/0.25Mpa
Design temperature 139℃
Doors Single Door Double Door Single Door Double Door Single Door Double Door Single Door Double Door
Working temperature range 105℃-136℃
Max working pressure 0.23Mpa
Sterilization time range 0-99 min
Drying time range 0-99 min
Vacuum rate -0.081Mpa
Temperature accuracy 0.1℃
Chamber Size(mm) 100L / Ø440*670 150L / Ø440*1000 200L / Ø515*1000 300L / Ø600*1080
Outer Size(mm) 1400*660*1640 1400*660*1640 1400*760*1750 1520*850*1850
Packing Size(mm) 1560*820*1820 1560*820*1820 1560*910*1880 1680*1080*2100
G.W. / N.W. 430/340kg 440/350kg 560/470kg 680/580kg
Power 10kw 10kw 12kw 15kw

Additional information

Weight N/A
Dimensions N/A
Model

YR05643, YR05643-1, YR05644, YR05644-1, YR05645, YR05645-1, YR05646, YR05646-1
