Manufacturer: Kalstein

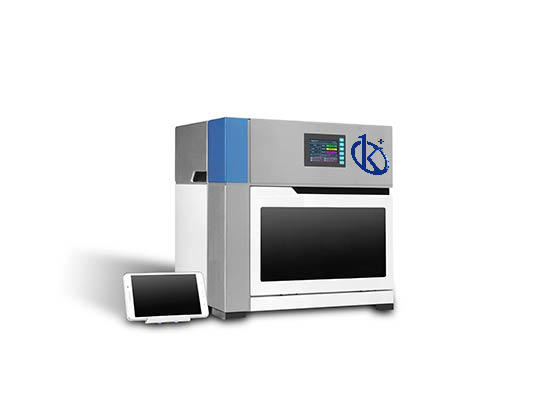

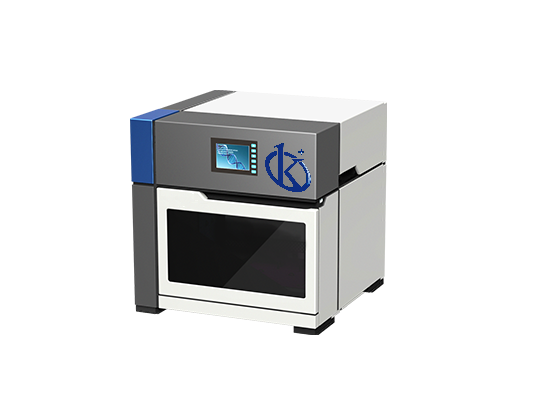

The most advanced semiconductor technology (Peltier based). No matter how you configure your YR01870 gradient thermal cycler system, it provides the high-end performance you need, easily adapts to meet your lab’s changing PCR needs, and helps you stay within your budget. Designed for trouble-free, long-life operation even in the most rigorous environments, the YR01870 delivers outstanding reproducibility – well-to-well, sample-to-sample, and instrument-to-instrument.
Model | YR01870 |
Block Formats | 96×0.2ml(A),54×0.5ml(B),96×0.2ml+77×05ml(C),384well(D) |
Temp Range | 0℃~99.9℃ |
Display Interface | 5.7’LCD |
Max.Heating Ramp Rate | 4.0℃/s |
Max.Cooling Ramp Rate | 3.5℃/s |
Heating/Cooling adjustable rate | 0.1℃/s~4.0℃/s |
Uniformity | ≤±0.2℃(20~75℃) |
Accuracy | ≤±0.2℃ |
Gradient Temp Range | 30~99℃ |
Thermal Gradient Span | 2~30℃ |
Gradient Uniformity | ≤0.2℃(single row) |
Hot Lid Temp | 30~115℃ |
Temp Control Mode | Block,tube |
Memory Capacity | 200 |
Max.No.of Cycle | 99 |
Communication | USB2.0/RS 232 |
Intelligent Diagnosis | – |
Size(W×D×H,mm) | 380×270×250 |
Weight(kg) | 7.2 |
Weight | 10 kg |
---|---|
Dimensions | 500 × 380 × 370 cm |
