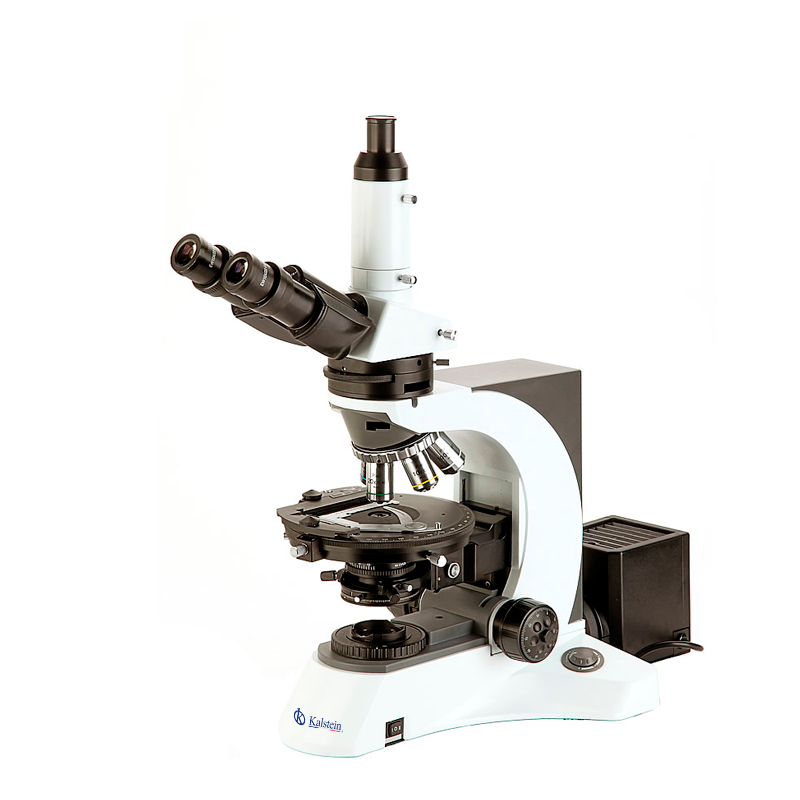

Polarizing Microscope YR0261

ManufacturerKalstein

Description

The Polarizing Microscope YR0261 is an advanced tool designed for precision and accuracy in optical microscopy. Equipped with quintuple nosepiece center adjustment, strain-free infinity plan objectives, and a 170mm adjustable round stage, this microscope ensures superior performance for detailed observation. The model YR0261 also features an analyzer unit with a Bertrand lens, λ slip, 1/4λ slip, and a quartz wedge for comprehensive analytical capabilities. Its illumination is powered by a bright halogen 24V100W lamp, allowing for adjustable brightness to suit varying observational needs. This makes the YR0261 a premium choice for professionals in fields requiring detailed optical analysis.

Market Price

The Polarizing Microscope YR0261 is competitively priced within the market of advanced microscopy tools. While specific prices can vary, the average market price typically ranges between $2,500 and $3,800 USD. This pricing positions the YR0261 as a premium yet accessible option for professionals who demand high precision and reliability in their optical instruments.

Frequently Asked Questions

What makes the Polarizing Microscope YR0261 stand out? The YR0261 is renowned for its combination of robust design and precision optics, including its strain-free infinity plan objectives and comprehensive analyzer unit.

Can I adjust the brightness of the illumination? Yes, the microscope features an adjustable brightness halogen lamp, providing optimal lighting for various observations.

Is the microscope suitable for educational purposes? While ideal for professional laboratory environments, the YR0261 can also enhance higher-level educational settings, offering detailed observations.

Advantages and Disadvantages

Advantages: The YR0261 offers precision, superior optics, and versatility with its rich features, including the high-quality objective lenses and adjustable components.
Disadvantages: Its advanced features come with a steeper learning curve for beginners, and due to its premium build, it is priced higher compared to basic models.

Use in the Field

An ideal choice for laboratory professionals, the Polarizing Microscope YR0261 is frequently used in mineralogical and petrographic studies due to its precise polarizing capabilities. Its adaptability to both orthoscopic and conoscopic observations enhances its functionality in diverse scientific studies.

Recommendations

To ensure the longevity and high performance of your Polarizing Microscope YR0261, regular maintenance such as lens cleaning with appropriate solutions and storing in dust-free environments is recommended. For purchasing, consider generating a quote through Kalstein Plus, allowing you to customize and optimize your configuration to suit your analytical needs.

Features

  • Quintuple Nosepiece Center Adjustable
  • Strain-free Infinity Plan Objectives 4x10x40x100x
  • Round Stage Dia.170mm Center Adjustable
  • Analyizer Unit With Bertrand Lens, λ Slip, 1/4λ Slip, Quartz Wedge
  • Transmit Halogen 24V100W Brightness Adjustable

Technical Specifications

Model YR0261
Objective Strainfree Infinity Plan Achromatic Objective 20x/0.4/∞/- W.D. 5.1mm YR0261-op1
Stage Attachable Stage, Moving Range 30*40mm YR0261-op1
Filter Netural Filter ND25 YR0261-op1
Netural Filter ND26 YR0261-op1
Adapter Photo Adapter YR0261-op1
C-Mount 1.0x YR0261-op1
Items YR0261
Optical System Infinity Optical System

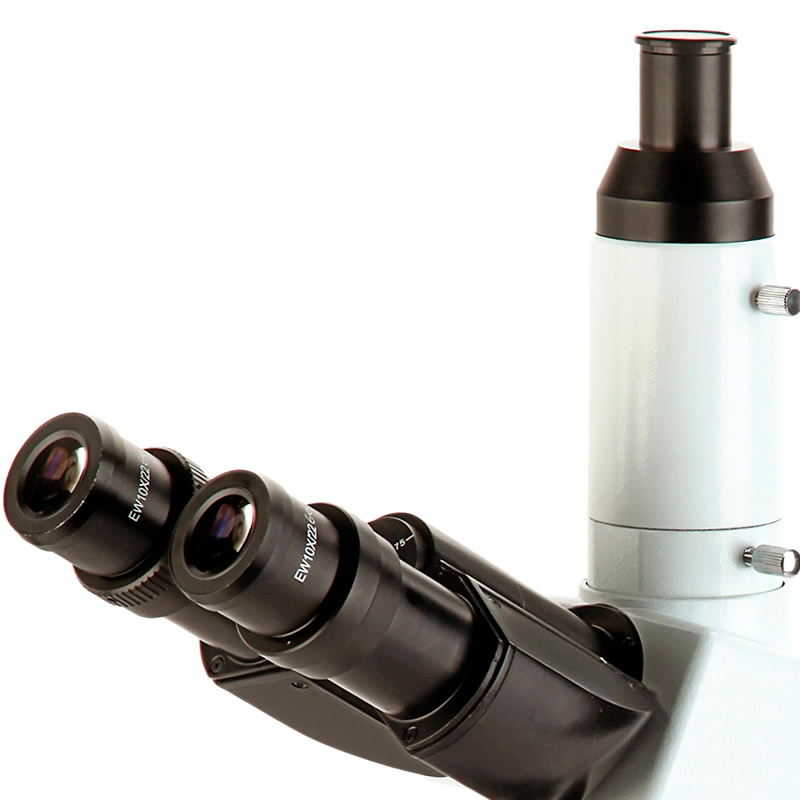

Head Seidentopf Trinocular Head, 30° Inclined, Interpupillary 48~75mm, Diopter Adjustable
Eyepiece Plan Eyepiece EW10x/22mm, Eyepiece Tube Dia.30mm
Plan Eyepiece With Scale of Crosshair
Plan Eyepiece With Cross
Plan Eyepiece With Gridding

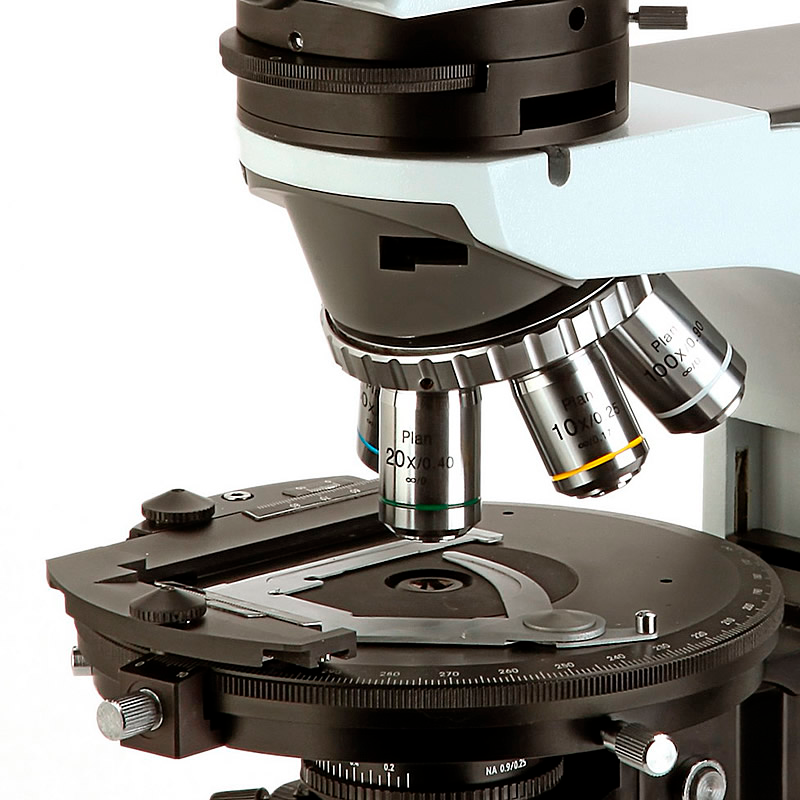

Objective Strainfree Infinity Plan Achromatic Objective
4x/0.10/∞/- W.D.17.3mm
10x/0.25/∞/0.17 W.D.10mm
40x/0.65/∞/0.17 W.D.0.54mm
100x/1.25/∞/0.17 W.D.0.13mm
Nosepiece Backward Quintuple Nosepiece, Center Adjustable
Analyzer 360° Dial Rotation Analyzer, Minimum Scale Reading 0.1° (Vernial Scale)
Switch Between Orthoscopic And Conoscopic Observation
Bertrand Lens Postion Adjustable
Optical Compensator: λ Slip (First Class Red), 1/4λ Slip, Quartz Wedge
Working Stage Polarizing Rotatable Stage, Dia.170mm, Center Adjustable
360° Scale, Minimum Division 1°
Minimum Reading 6′ By Means of Vernial Scale
45° Click Stop Knob
Condenser Strainfree Swing Condenser N.A.0.95/0.25

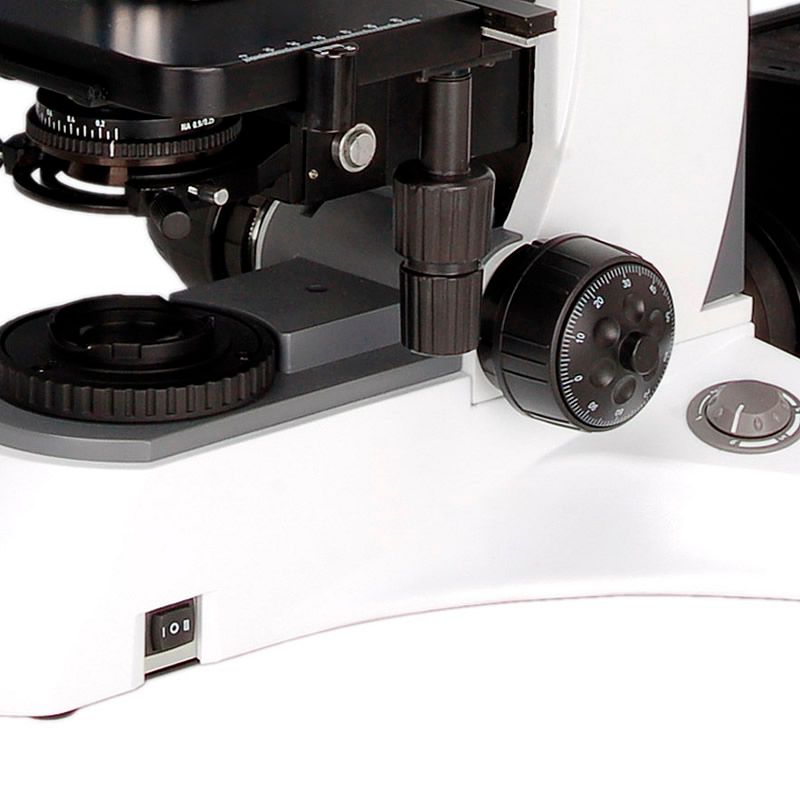

Focusing Coaxial Coarse & Fine Adjustment, Focusing Range 32mm, Fine Division 0.001mm, Coarse Stroke 37.7mm Per Rotation, Fine Stroke 0.1mm Per Rotation
Polarizer 360° Rotatable, 0° Position Adjustable
Filter Blue Filter, Dia.45mm
Illumination Transmit Illumination Halogen Lamp 24V100W, Brightness Adjustable

Additional information

Weight 16,5 kg

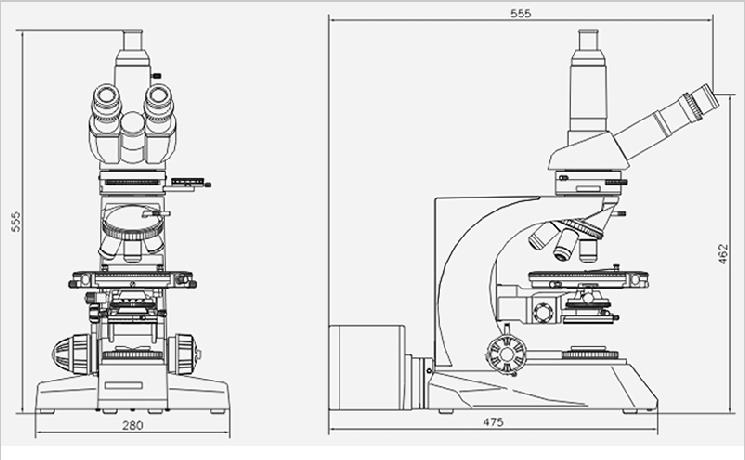

Dimensions 46,3 × 38,4 × 83 cm
