Description

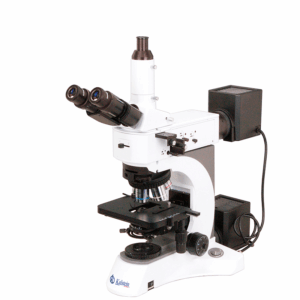

The Metallurgical Microscope YR0251 – YR0252 is a top-choice instrument for precise metallurgical analysis. This advanced microscope is equipped with a Seidentopf trinocular head inclined at 30°, offering an interpupillary distance of 48~75mm for maximum comfort. Its infinity optical system supports both bright field and dark field observations, with integrated polarizing capabilities. Designed to meet the rigorous demands of industrial and laboratory settings, it includes extra wide field eyepieces, a quintuple backward nosepiece, and infinity plan achromatic objectives ranging from 5x to 100x magnification, ensuring unparalleled detail and clarity in your sample examinations.
Price in the Market
The Metallurgical Microscope YR0251 – YR0252 typically ranges between $4100 and $4900 USD, positioning it competitively within the market. This price range reflects the robust features and precision design of the microscope. Interested customers can experience its advanced functionalities at an attractive price point by requesting a personalized quote today.
Frequently Asked Questions
What is the difference between bright field and dark field mode? The bright field mode uses light to directly illuminate the specimen, highlighting denser regions, while dark field mode provides enhanced contrast by reflecting light off the edges of structures.
Can the microscope be used for educational purposes? Yes, with its trinocular head allowing for camera attachment, it’s perfect for educational demonstrations.
Advantages and Disadvantages
Among the notable advantages of the Metallurgical Microscope YR0251 – YR0252 are its outstanding optical clarity, versatile illumination options, and ergonomic design. The triple nosepiece allows for seamless switching between magnifications. A potential downside is the need for careful handling to maintain its high performance features and avoid misalignment from frequent adjustments.
Product Use in the Field
This microscope is widely used in material science labs, metallurgy departments, and manufacturing quality control. Its ability to switch between bright and dark field illumination is crucial for detecting defects and structures within metal samples, aiding in research and product development.
Recommendations
For optimal use, ensure the halogen lamp is properly adjusted according to the specimen’s opacity. It’s advisable to regularly calibrate the microscope and clean the lenses with suitable solutions to maintain image precision. Leveraging Kalstein Plus, users can streamline maintenance with timely notifications of required servicing.
Features
- Infinity optical system with bright and dark field capabilities.
- Seidentopf trinocular head inclined at 30° for user comfort.
- Variety of infinity plan achromatic objectives for diverse magnification needs.
- Advanced focusing with coaxial coarse and fine adjustment features.
- Kohler illumination with a choice of colored filters for optimal viewing conditions.
- Adaptable for photographic documentation with compatible adaptors.
Technical Specifications
Model | YR0251 | YR0252 | ||
Optical System | Infinity Optical System, Bright Field/Dark Field, Polarizing | |||
Head | Seidentopf Trinocular Head Inclined at 30°, Interpupillary 48-75mm | |||
Eyepiece | Extra Wide Field Eyepiece EW10x/22mm, Eyepiece Tube Dia.30mm | |||
Nosepiece | Backward Quintuple Nosepiece | |||
Objective | Infinity Plan Achromatic Objectives 5x/ 0.12/ ∞/ – (BF) | |||
Infinity Plan Achromatic Objectives 10x/ 0.25/ ∞/ – (BF/DF) | ||||
Infinity Plan Achromatic Objectives 20x/ 0.4/ ∞/0 (BF/DF) | ||||
Infinity Plan Achromatic Objectives 50x/ 0.75/ ∞/0 (BF) | ||||
Infinity Plan Achromatic Objectives100x/0.90/∞/0 (BF) | ||||
Infinity Plan Achromatic Objectives 40x/0.65/∞/0.17 | o | |||
Infinity Plan Achromatic Objectives 100x/1.25/∞/0.17 | o | |||
Focusing | Coaxial Coarse & Fine Adjustment, Fine Focusing Precision <1um, With Safety Stop, With Tension Adjustment | |||
Working Stage | Maximum Sample Height 30mm | |||
Double Layer Mechanical Stage 186*138mm, Moving Range 74*50mm, Including: | ||||
–Specimen Preparation Plate | ||||
–Slide Glass | o | |||
Reflect Illumination | 24V 100W Halogen Light, Brightness Adjustable | |||
Kohler Illumination With Aspherical Condenser | ||||
Polarizer & Analyzer, Integrated Board For Polarizer & Analyzer | ||||
Blue, Green, Yellow Filter, Ground Glass | ||||
Transmit Illumination | Swing-Out Condenser N.A.0.9/0.25 | o | ||
24V 100W Halogen Light With Aspherical Condenser | ||||
Blue Filter | ||||
Accessories | YR0251 | YR0252 | ||
Objective | Infinity Plan Achromatic Objectives 40x/0.6/∞/0 (BF/DF) | YR0252-op1 | ||
Infinity Plan Achromatic Objectives 50x/0.75/∞/0 (BF/DF) | YR0252-op2 | |||
Polarizing | Polarizer & Analyzer, Integrated Board For Polarizer & Analyzer | YR0252-op3 | ||
For Reflect Illumination | ||||
Filter | Neutral Filter ND25 | YR0252-op4 | ||
Neutral Filter ND6 | YR0252-op5 | |||
Adaptor | Photo Adapter, For Nikon or Canon SLR Camera | YR0252-op6 | ||
C-Mount 1.0x | YR0252-op7 | |||
C-Mount 0.5x | YR0252-op8 | |||
Other | Specimen Presser |
