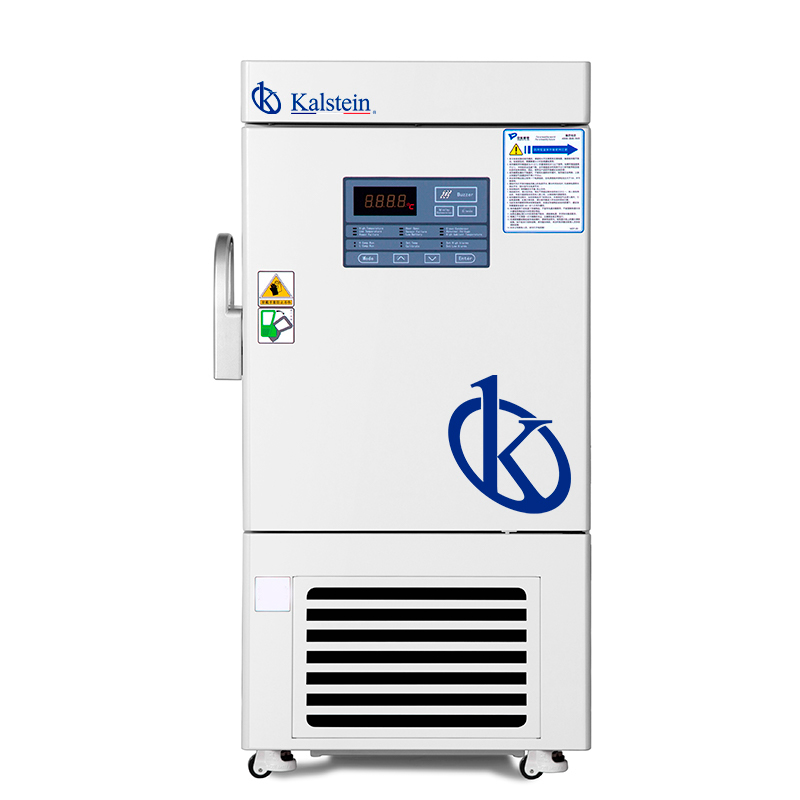

Medium Capacity Ultra Low Temperature Freezer YR05106

Manufacturer: Kalstein

Description

-86C Ultra low temperature freezer 58L medium capacity ultra low temperature freezer with CE FDA.

Features
  • Malfunction alarms including high and low temperature, power failure, sensor error, clean-filter, and extremely high ambient, abnormal voltage, thermostat failure, low battery, condenser clean and door ajar
  • Remote alarms contacts.
  • Microprocessor-controlled system designed for controlled range of -40C to -86C for cabinet space with 1C increment.
  • Adjustable storage shelf height
  • Optional temperature recorder, storage racks and storage boxes.
Model YR05106
Specificaitons
Shelf/drawer QTY Stainless steel shelf/1
Cooling Direct cooling
Defrost Manual
Refrigerant Mixed-gas
Power Consumption(kWh/24h) 5.6
Noise(db) /
Ambient temperature(℃) 10~32℃
Temperature range(℃) -40~-86℃
Cooling system
Compressor brand/QTY SECOP/1
Sensor PTC
Temperature controller Microprocessor
Display Digital display
Power
Voltage/frequency(V/Hz) 220/50Hz
Power(W) 442W
Current(A) 2.67A
Material
Inside material Stainless steel
Outside material Color sprayed steel
Insulation PURF
Size
Capacity(L/cu.ft) 58L
NT./GT.(kg) 115/155
Exterior size(W*D*H)(mm) 635*757*1212
Interior size(W*D*H)(mm) 330*453*410
Package size(W*D*H)(mm) 730*845*1400
CBM 0.87
20GP/40GP/40HQ 21/43/43
Frozen Racks
Racks 2(6X2)
Boxes (2 Inches) 24
Samples(2ml) 2400
Alarm
High/low temperature Y
Power failure Y
Abnormal voltage Y
Sensor error Y
Filter screen check Y
Thermostat failure Y
Low battery Y
Condenser clean Y
High ambient temperature Y
Door ajar Y
Power failure backup system(alarm) 72h
Accessories
Castor Y
Inside door 1
Test hole QTY/diameter 1/25MM
USB port Y
Chart recorder /
Data logger Optional
Remote alarm port Y
Optional
CO2 back up system Optional
LN2 back up system Optional
Other Certification ISO.CE

Additional information

Weight 155 kg
Dimensions 73 × 84,5 × 140 cm
