Description

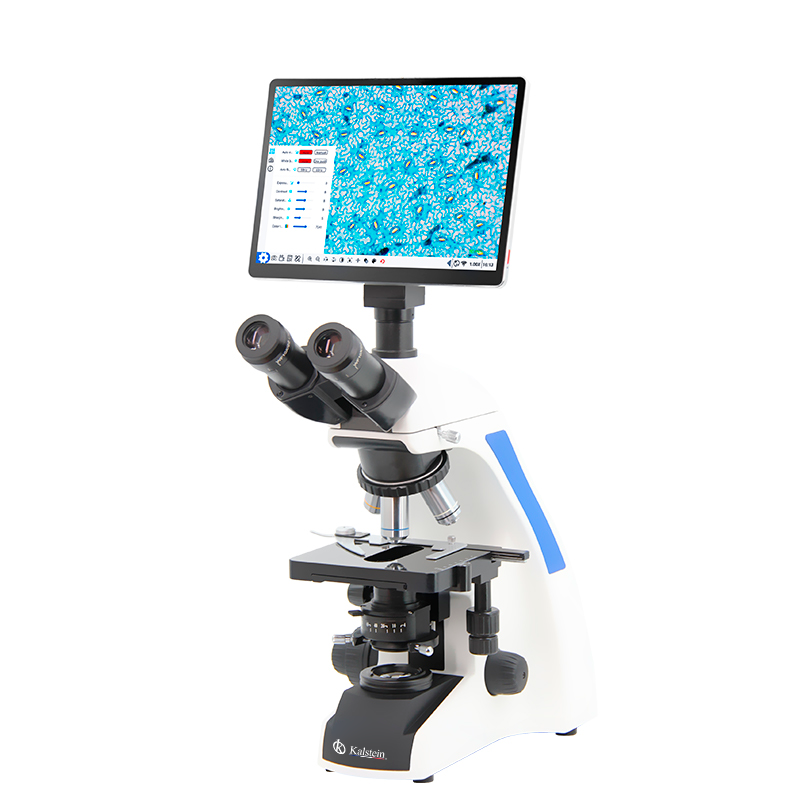

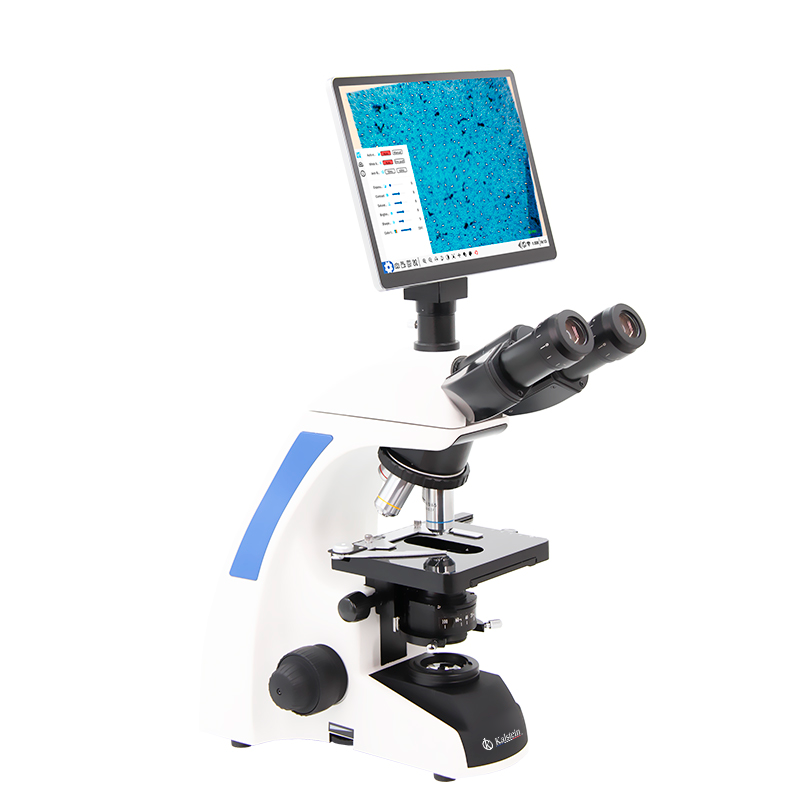

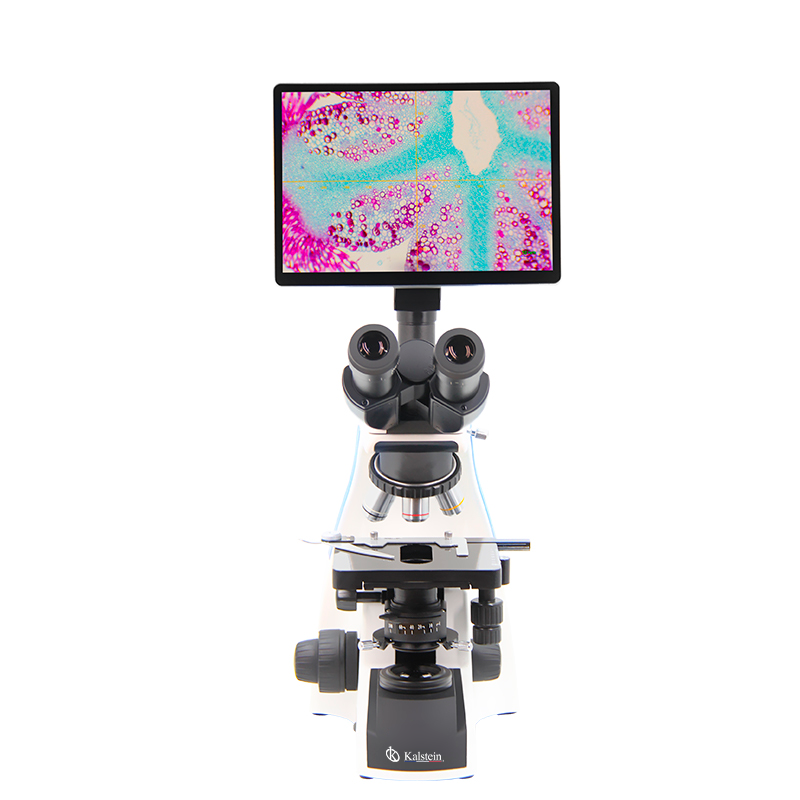

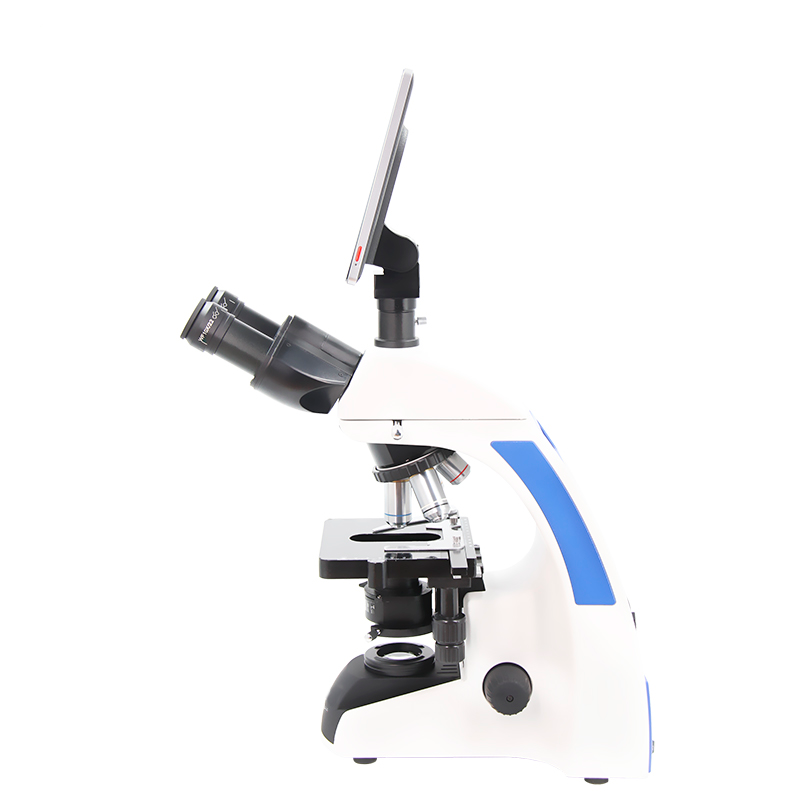

The LCD Touch Screen Digital Microscope YR05782 is a state-of-the-art digital microscope that offers an impressive set of features designed for precision and ease of use. Equipped with a 10.5″ LCD touch screen pad powered by an Android system, this microscope includes a sophisticated measuring software that makes it ideal for detailed research. It features a high eyepoint wide field eyepiece (WF10x/20mm Dia.30mm) and an achromatic objective (4x, 10x, 40x, 100x), which can be upgraded for infinity vision. With a double layer mechanical stage, LED Kohler illumination, and an intuitive user interface, this device is perfectly suited for laboratory environments, educational settings, and professional research.
Market Price
When considering the acquisition of a high-quality digital microscope like the YR05782, you can expect to find a price range in the market between 1100 USD to 1900 USD. This competitive pricing ensures that you receive a top-tier product with excellent value for money. For exact pricing, you can request a quote through Kalstein Plus and explore personalized offers.
Frequently Asked Questions

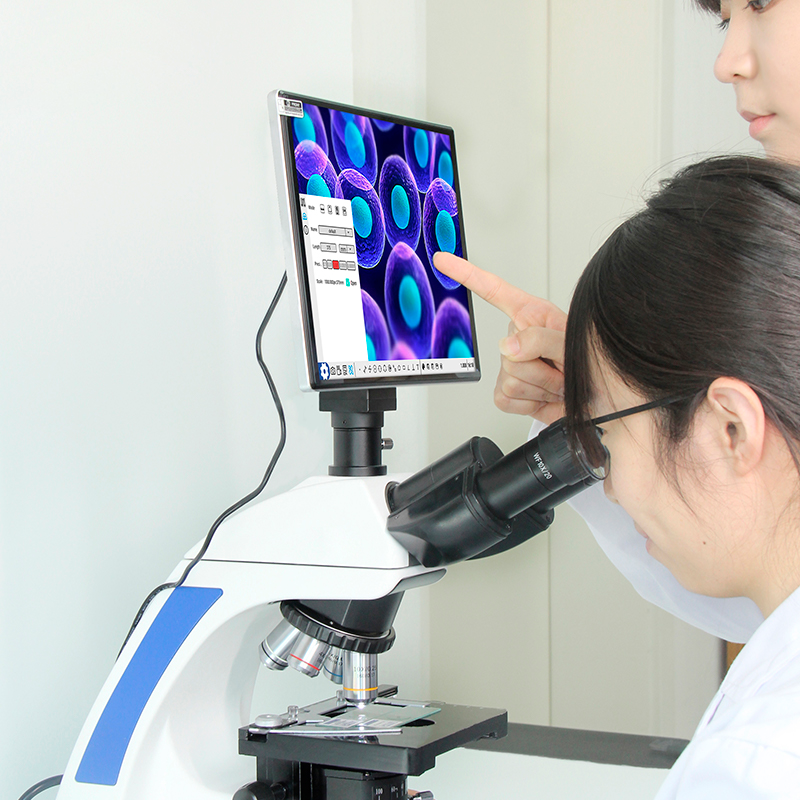

How does the touch screen interface enhance the microscope’s usability?
The integrated touch screen interface simplifies the interaction with the measuring software, allowing users to easily manipulate and analyze the samples without needing additional peripherals.
Is the microscope suitable for educational purposes?
Yes, the YR05782 is perfect for educational environments due to its user-friendly design and advanced features that facilitate learning and investigation.
Advantages and Disadvantages
One of the key advantages of the LCD Touch Screen Digital Microscope YR05782 is its intuitive touch screen, which makes operating the system straightforward and accessible. The high resolution and versatile objective lenses provide clear, detailed imagery. However, some users may find the initial setup challenging without previous experience with digital microscopes. Still, the benefits greatly overshadow this minor setback, with robust customer support available to aid users.
Product Usage in the Field
In practical scenarios, the YR05782 excels in providing high-magnification views of biological, chemical, or physical samples. Its digital capabilities allow for seamless integration with networks and data sharing systems, making it a valuable tool in collaborative environments such as research laboratories and academic institutions.
Recommendations
To maximize the benefits of the YR05782, ensure regular maintenance of the LED illumination system and periodically update the Android system software for optimal performance. Additionally, leverage the compatibility with advanced digital tools through Kalstein Plus to enhance the overall user experience.
Features
- 10.5″ LCD touch screen with Android system and measuring software
- High eyepoint wide field eyepiece: WF10x/20mm Dia.30mm
- Achromatic HC objectives: 4x, 10x, 40x, 100x
- Double layer mechanical stage, upgradeable dimensions
- 3W LED Kohler illumination with a removable light source
Technical Specifications
| Model | YR05782 | |
| Head | Trinocular Head, 30° Inclined, Interpupillary Distance 48-75mm, Both Eyepiece Tube Diopter Adjustable | |

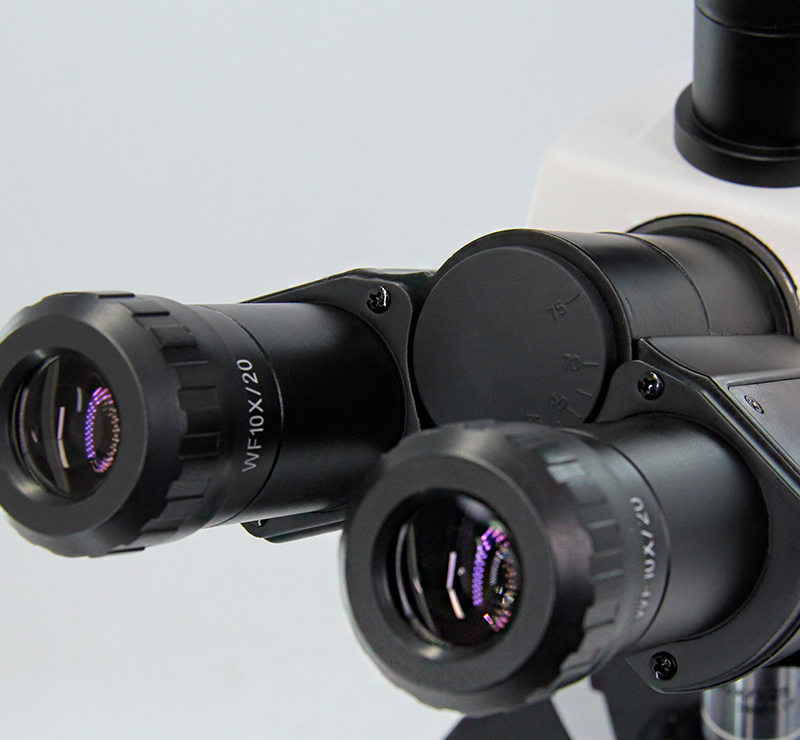

| Eyepiece | WF10x/20mm, Diopter Adjustable, Dia. 30mm | |

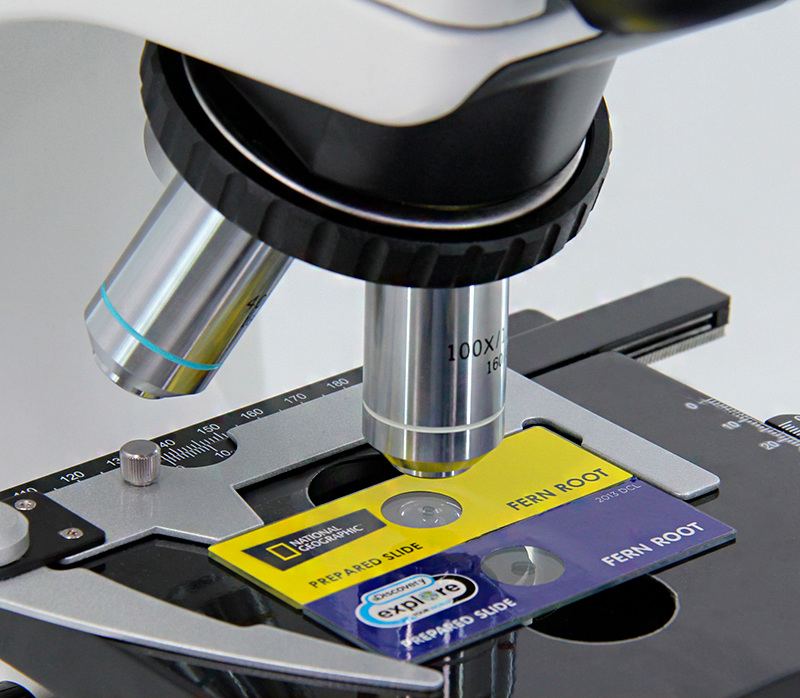

| Objective | High Contrast Chromatic Free 4x, 10x, 40x(S), 100x(Oil, S) | |
| Focus Knob | Coaxial Coarse & Fine Focusing, Fine Division 0.002mm, Coarse Stroke 37.7mm/Rotation, Focusing Range 24mm | |
| Nosepiece | Quadruple, Backward With Click Stops | |
| Stage | Double Layer Mechanical Stage 142x132mm, Graphite Surface, Moving Range 75x50mm | |

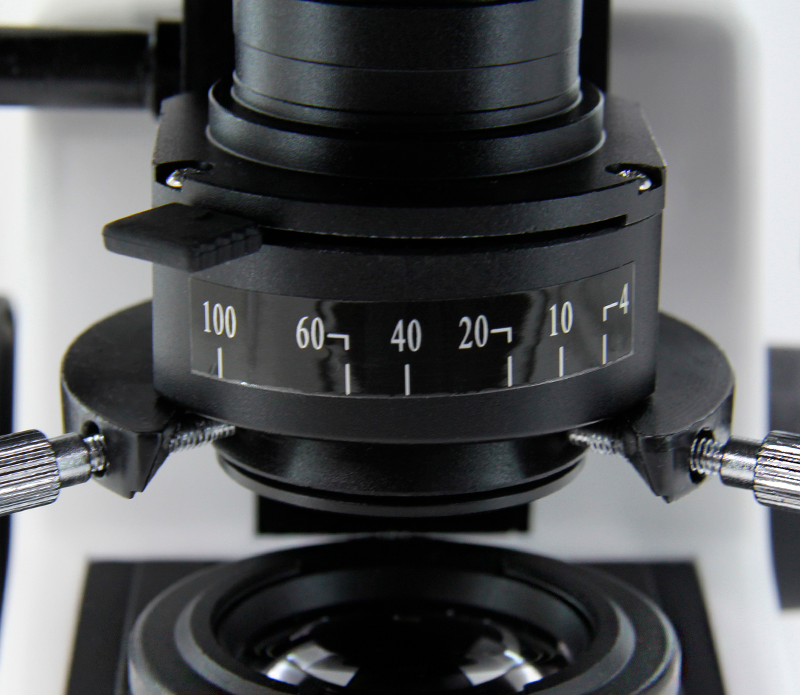

| Condenser | Abbe Condenser N.A.1.25, Center Adjustable | |
| Light Source | 3W LED Brightness Adjustable | |
| Adapter | C-Mount 0.5x | |
| Package | 53*32.5*53.5cm/11.5Kg, 1 Set/Carton | |
| 10.5“ Touch Screen Android Pad Digital Camera, 8.0M1 Newly Update 2022! | ||
| Spec. | Model | YR05782-op0 |
| Category | HD All-in-One Android 11 System Tablet Digital Camera | |
| Sensor | 1/1.8” CMOS Sensor | |
| Effective Pixel | 8M, 4K | |
| Screen | 10.5” High-Definition Touch Screen | |
| Operation System | Android 11 | |
| WIFI | 2.4GHz/5GHz Dual-band WIFI, Support WIFI6 | |
| Bluetooth | Bluetooth 5.0 | |
| Output | USB3.0*2, USB2.0*1, HDMI, Gigabit LAN Port | |
| Pixel size | 2.0um*2.0um | |
| Power | DC-12V/2A | |
| Function | Basic Function | Android Interaction, Installed S-Eye2.0 Measure Software |
| Image Adjustment | Brightness, Contrast, Saturation, Color Temperature | |
| Camera Function | Mirror, Flip, Freeze, Black and White | |
| UI Interface | Support User-friendly Mouse & Keyboard, And Touch Screen Operation | |
| Photo | 8.0M Image Capture | |
| Video | 1080P Video | |
| Storage | Still Photo And Video Recording, Picture Preview | |
| Marking | Point Coordinates, Crosshairs, Coordinate System, Text Annotations | |
| Length Measurement | Straight Line, Folded Line, Curve Length, Parallel Line Distance, Point Line Distance | |
| Geometric Measurement | Line Segment Length, Radius Fixed Circle, 2 Point Fixed Circle, 3 Point Fixed Circle, Concentric Circle, Radius Fixed Circle | |
| Geometric Area Measurement | Polygon, Rectangle | |
| Measurement System | Built-in S-Eye Software | |
| Package | Box Size | 237*169*10.5mm |
| Weight | 0.6kg | |
| Accessory | DC-12V/2A Power Adapter | |
| Laboratory Biological Microscope Optional Accessories | ||
| Eyepiece | WF16X/F.N.15mm | YR05782-op1 |
| WF20X/F.N.12mm | YR05782-op2 | |
| Nosepiece | Backward Quintuple Nosepiece | YR05782-op3 |
| Dark Field | Dark Field Condenser, Dry, N.A.1.25 | YR05782-op4 |
| Dark Field Condenser, Immersion, N.A.1.25~1.36 | YR05782-op5 | |
| Polarizing | Polarizer & Analyzer | YR05782-op6 |
| Phase Contrast | Turret Disc Phase Contrast Condenser, For 10x,20x,40x,100x | YR05782-op7 |
| Infinity Plan Phase Contrast Objective 10x,20x,40x,100x | ||
| Centering Telescope 10x | ||
| Optional For B, T Only | ||
| Adapter | Eyepiece Tube Adapter | YR05782-op8 |
| C-Mount 1.0x | YR05782-op9 | |
