Heating Mantle YR05055 // YR05058 - Kalstein

Tracking

Manufacturer: Kalstein

Description
Additional information

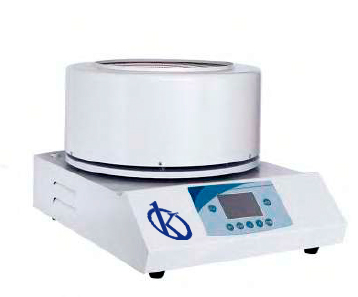

YR05055 and YR05058 multi heating mantles are designed for repetitive extraction (Kjeldahl, Soxhlet and other extraction procedures), laboratory reflux and distillation applications.

Large heating area, heating uniform and heating fast, and the maximum temperature can be 380°C
Big LCD display, can show speed, temperature and timer together
Adopt brushless DC motor, have stable performance, low noise, long service life and have no sparkThe sheel is high-temperature resistan, anti-corrosion and has good insulation property

Technical Description

Model	YR05055	YR05056	YR05057	YR05058
Capacity	1Lts	2Lts	5Lts	10Lts
Power Requirements	110 / 220V, 15A,50/60 Hz		110 / 220V, 20A,50/60 Hz
Speed Range	100 – 2500 r/min
Motor Power	40W, DC 14V
Temperature Range	RT – 380°C
Heating Power	180 – 2 200W
Temperature Accuracy	±1°C
Insulation Max Temperature Resistance	450°C
Temperature Control Type	LCD Display with PID Control
Timer	0 – 9 999 minutes
Dimensions / mm	330 x 254 x 228	432 x 280 x 228	432 x 305 x 254	508 x 356 x 305
Weight / Kg	3.2	3.2	5	8.2

Weight	N/A
Dimensions	N/A
Model	YR05055, YR05056, YR05057, YR05058
