Manufacturer: Kalstein

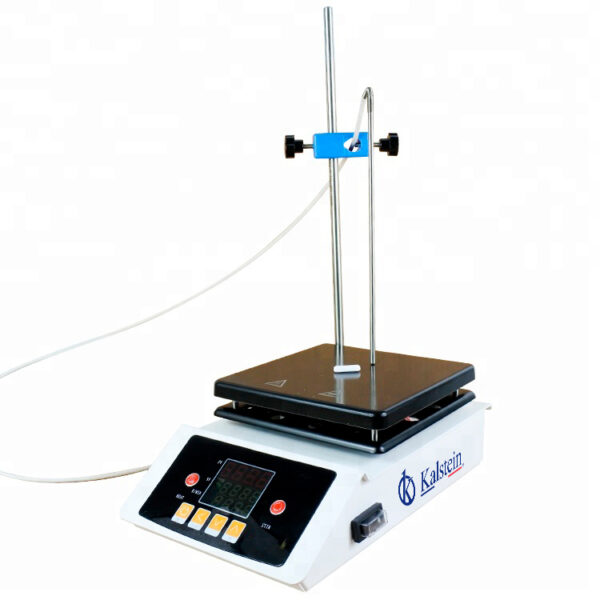

YR Series are new Digital Hotplates laboratory magnetic stirrer mixer with Heater made of Ceramic top plate , PID Temperature control and digital display which offers excellent chemical resistance .
White cermic coated top plate provide excellent chemical resistance, thermal-proof , and corrossion resistance, bright white color ceramics coated plate enhance sample visibility.
Model | YR02938 |
Top Plate Dimension (mm) | 180 x 180 |
Top Plate Dimension(Inch) | 7.09×7.09 |
Temperature Control | PID Auto control . |
Top Plate Shape | Round or Square |
Top Plate Material | Ceramic |
Temperature Range for machine | Ambient to 400 degree. |
Max Temperature for top plate | 325 degree |
Top Material | White ceramics and Black Ceramic are Both available . |
Temperature Display (°C ) | Digital Display |
Temperature control | PID Auto control |
Temperature accuracy | |
Thermocouple probe /sensor type | PT100 , with inner and outer thermocouple . |
Stir Speed | 100- 1800 RPM |
Stir Display | Digital display |
Stir speed accuracy | |
Permissible Ambient Temperature | Ambient Temperature to 40°C |
Voltage | 160 – 240V , or 110- 130V. |
Heating Power supply (w) | 550 |
Motor Power supply | 40 W.DC 20 |
Machine power supply | 600 |
Stirring Flask Capacity (ml) | 50ML-5L |
Overall Dimensions (mm)
( L × W × H ) |
391 x 245 x 120 |
Packing Dimension (mm) | 440 x 290 x 170 |
Shipping Weight (kg) | 5.1 |
Shell material | Time molding waterproof and dustproof shell with Anti-static paint |
Weight | 5,8 kg |
---|---|
Dimensions | 44 × 29 × 17 cm |
