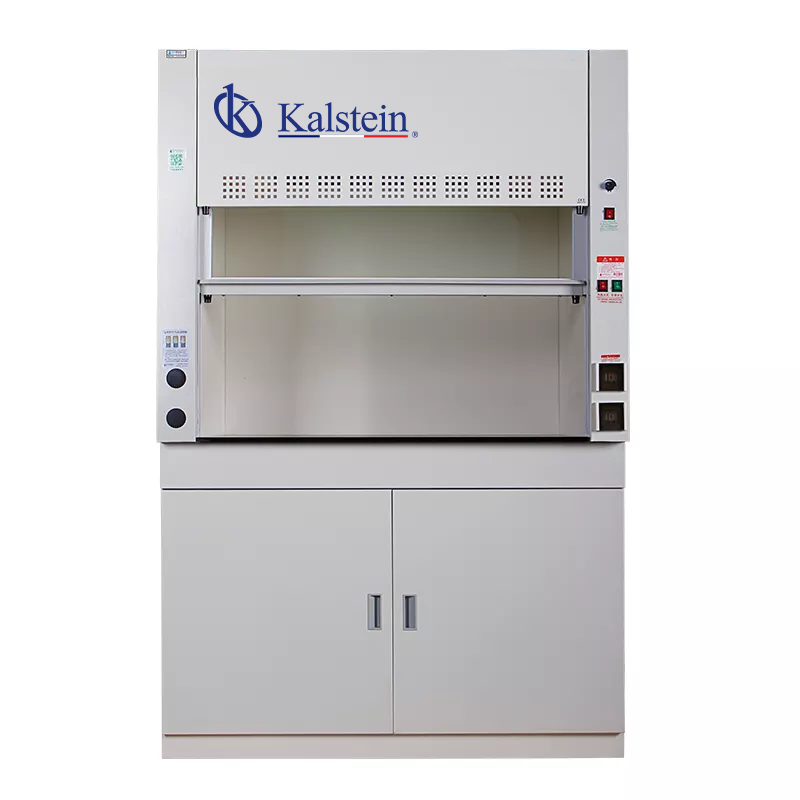

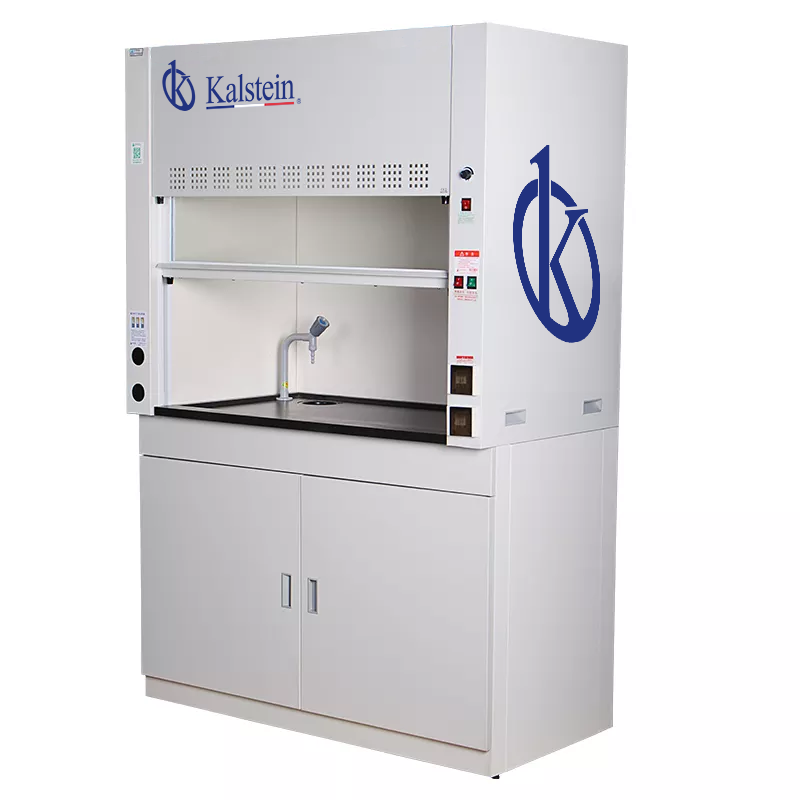

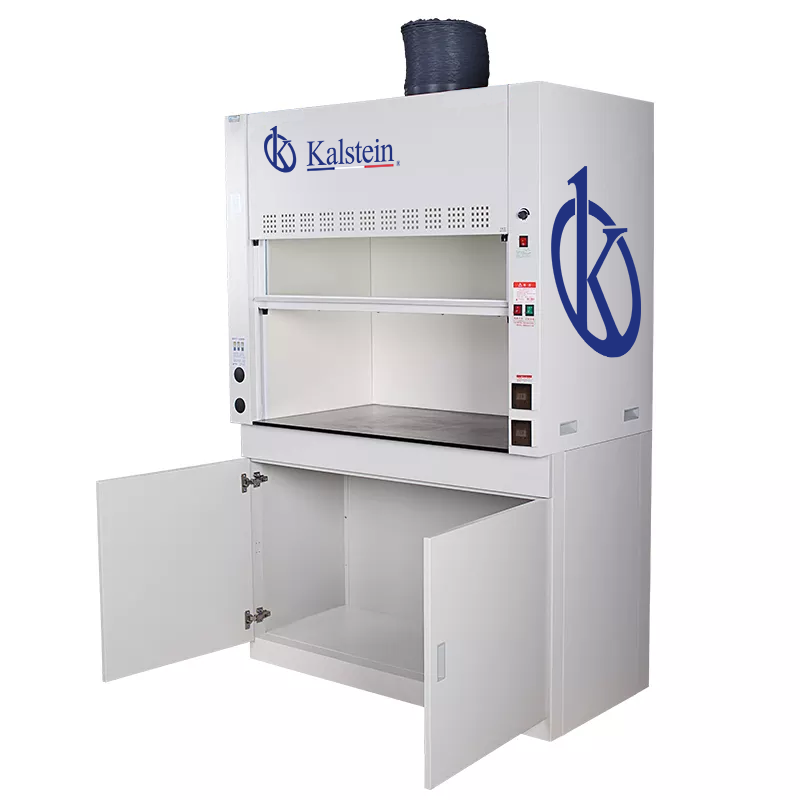

Epoxy-Coated Steel Basic Chemical Laboratory Fume Hood YR05813 // YR05816

ManufacturerKalstein



Description

The YR05813 // YR05816 Basic Chemical Laboratory Fume Hood is a vital tool for ensuring safety in labs that handle chemicals. Its body is made from 1.2 mm cold-rolled steel with an epoxy resin coating, offering excellent resistance to corrosion from strong acids and alkalis. The 12.7 mm phenolic resin work surface is highly resistant to chemicals, ensuring durability even in tough environments. Additionally, the fume hood features an adjustable 5 mm tempered glass front window and an integrated axial flow blower, delivering efficient ventilation with a noise level below 60 dB to maintain a quiet and safe workspace.

Market Price

The YR05813 // YR05816 Fume Hood is priced between $1200 and $1700, depending on size and selected specifications. This cost reflects the high-quality materials and advanced features, such as its adjustable ventilation system and sturdy structure. For labs looking to meet strict safety and efficiency standards, this fume hood represents a solid investment.

Frequently Asked Questions

  • Is the YR05813 // YR05816 Fume Hood easy to operate?
    Yes, it is simple to use. The front window can be manually adjusted, and the axial flow fan comes with speed control to adapt to various ventilation needs.
  • What type of protection does this fume hood offer?
    It provides complete protection against toxic vapors and gases, thanks to its efficient ventilation and corrosion-resistant materials.
  • What is the noise level during operation?
    The noise level is below 60 dB, ensuring a quiet and productive environment.

Advantages and Disadvantages

Key advantages of the YR05813 // YR05816 Fume Hood include its robust construction, chemical-resistant materials, and quiet operation. Additionally, its adjustable fan allows for versatile extraction needs. However, its price might be considered high compared to other fume hoods, making it a challenge for laboratories with tighter budgets.

Field Use

This fume hood is ideal for basic chemistry labs needing protection from toxic vapors. Its resistance to acids and alkalis makes it suitable for research, educational, and industrial labs working with corrosive substances. Moreover, its easy-to-use design and compact size make it efficient in smaller spaces while ensuring a clean and safe working environment.

Recommendations

To extend the lifespan of the YR05813 // YR05816 Fume Hood, regular maintenance is essential. This includes cleaning the ventilation ducts and periodically checking the fan speed controls and window adjustment mechanisms. Additionally, following the recommended airflow speed guidelines will optimize performance and energy efficiency.

Technical Specifications

Model YR05813 YR05814 YR05815 YR05816
External Size (W*D*H) (mm)  800*650*1900 1000*650*1900 1200*650*1900 1500*650*1900
Internal Size (W*D*H) (mm)  600*600*750 800*600*750 1000*600*750 1300*600*750
Work Surface  Height  800mm
Max Opening of window   750mm
Air Velocity/Exhaust air volume  0.4-0.6m/s,800-1000m³/h
Noise ≤60dB
LED Lamp  10W*1
Blower  Built-in axial flow blower;Speed adjustable.
Front Window  Manual,5mm toughened glass,height adjustable.
Power Supply  AC220V±10%,50/60Hz;
Consumption  100W
Material Main Body 1.2mm thickness cold-rolled steel
with epoxy resin powder coating.
Inner Side 5mm thickness compact,resistant
to strong acid and alkali.
Work Table Chemical resistant phenolic resin,
thickness 12.7mm.
Standard  Accessory   LED lamp,Built-in axial flow blower with speed adjustable.
Waterproof socket*2
3 meter PP duct,Diameter:250mm
Optional  Accessory epoxy resin board or ceramic board.,Water tap,Gas tap,Water Sink
Outer centrifugal blower(300W),resistant to strong acid,alkali.
Gross Weight   110 110 115 120

Additional information

Weight N/A
Dimensions N/A
Model

YR05813, YR05814, YR05815, YR05816
