Description

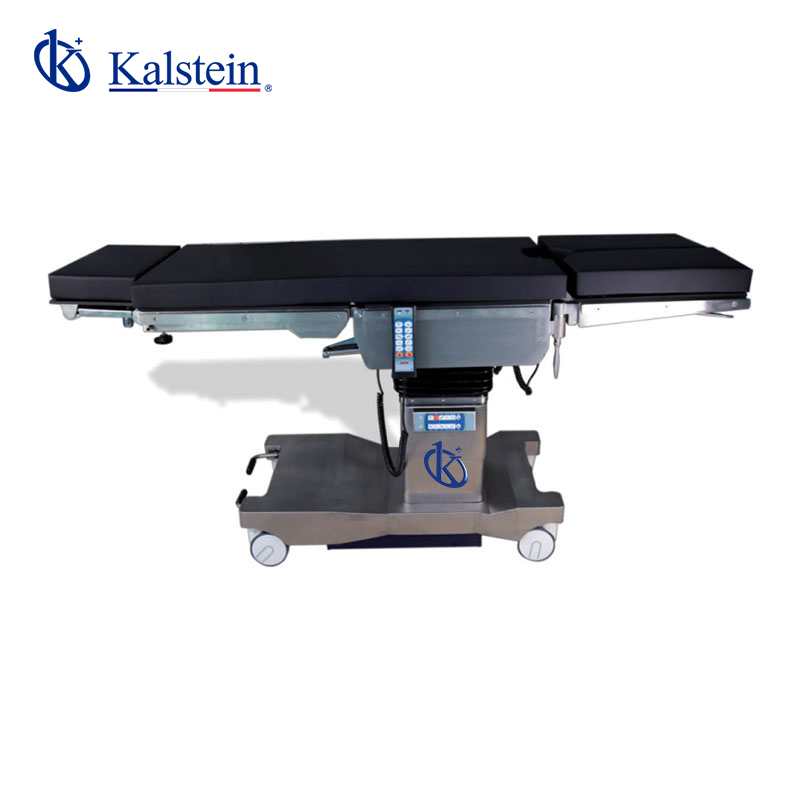

- Engineered for increasingly complex surgical scenes, YR06230 comes with intelligent automatic control system satisfying various demands of general surgeries.
- Longitudinal slide up to 350mm for free access to C-arm.
- Extreme weight load capacity of 250kg with highest safety and stability.
- Memory pad with antistatic, waterproof design.
- Standard override panel control makes the control safer.
- Back up battery.
Technical Specifications
Model | YR06230 |
Length/Width | 2100mm/550mm |
Elevation(up/down) | 700mm/1000mm |
Trendelenburg | ≥25° |
Reverse Trendelenburg | ≥25° |
Lateral Tilt(left/right) | 15°/15° |
Head Rest(up/down) | 45°/90° |
Footplate(up/down&horizontal positioning) | 90°/90°/15° |
Back plate(up/down) | 85°/20° |
Kidney bridge | 110mm |
Sliding | 350mm |
Power | 220v, 50Hz, 1.0kW |
