Manufacturer: Kalstein

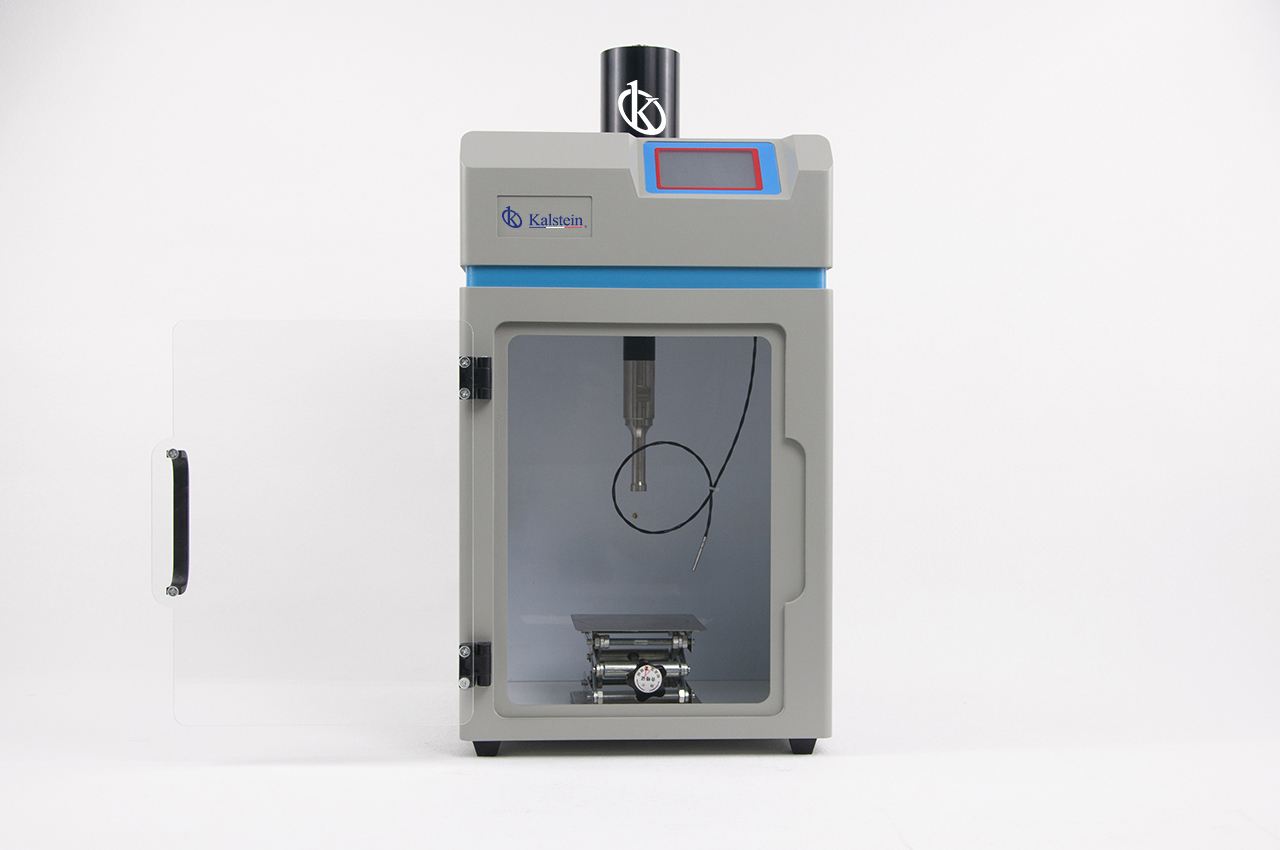

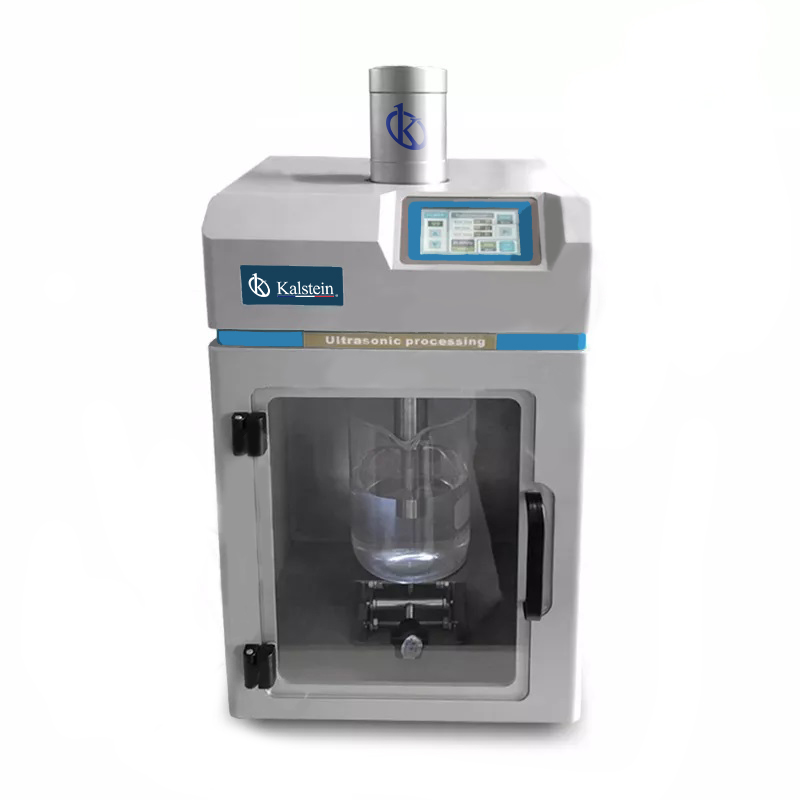

Digital intelligent ultrasonic disperser is a kind of ultrasonic equipment used in laboratory solid-liquid liquid treatment. Compared with traditional ultrasonic crusher, the instrument is more stable and reliable, has smaller volume, saves laboratory space, and is equipped with lifting table and lighting functions, which makes the experimental operation more safe and convenient.
Model No. |
YR05837 | YR05837-1 | YR05838 | YR05839 |
Working Frequency |
19~25KHz Automatic compensation |
|||
Ultrasonic Power | 950W | 650W | 1200W | 1800W |
Processing Capacity | 100~1200ml | 50~800ml | 100~2000ml | 100~3000ml |
Power adjustable |
0~100% |
|||
Timer | LCD Touch screen, adjustable from 1s to 99h | |||
Pulser | Digital, closed loop, open loop, 1s to 99min to choose and set | |||
Ultrasonic mode | Pulse mode / Continuous mode | |||
Standard Probe | Φ13mm | Φ6mm | Φ16mm | Φ20mm |
Optional Probe | Φ3/6/8/10/16/18mm | Φ3/6/8/13/16mm | Φ3/6/8/10/13/18/20mm | Φ3/6/8/10/13/16/18/25mm |
Energy Converter | CV33, PZT lead zirconate titanate piezoelectric ceramics | |||
Probe Material | Titanium Alloy TI-6AL-4V | |||
Cabinet lighting | yes | |||
Lifting table | yes | |||
Machine size | 245*365*245mm | |||
Sound Proof box size | 240*250*390mm | |||
Power Supply | AC220/50Hz,110V/60Hz | |||
Optional Configuration | Magnetic stirring, cooling water circulation system, etc; Computer Software package: RS422 to USB data connection limit (including driver), computer monitoring driver temperature sensor Wrench: used to install and remove the horn Test tube rack |
Weight | 9,9 kg |
---|---|
Dimensions | 48 × 33 × 53 cm |
Modelo | YR05837, YR05837-1, YR05838, YR05839 |
