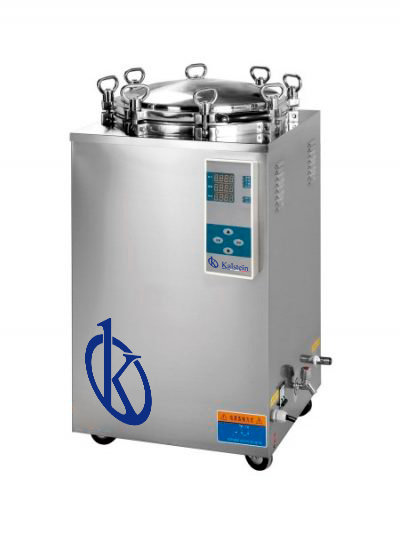

Digital Display Pressure Steam Vertical Autoclave YR05676 // YR05681

Description

Fully stainless steel 304 structure.
Wing nut locking mechanism.
Microprocessor control, digital display of working status: pressure, time, temperature, error code, touch type key.
Auto discharge the cool air, and steam discharging automatically after sterilization.
Self-inflating type seal.
Automatically shut off with beep reminding after sterilization.
Standard PT/TT test interface is provided for convenient testing.
With two stainless steel sterilization.
Equipped with automatic water sensor and water level indicator.
Equipped with lid protection cover.

Technical Specifications

Model	YR05676	YR05677	YR05678	YR05679	YR05680	YR05681
Working pressure	0.22 Mpa
Working temperature	134°C
Working temperature range	105 – 134℃
Sterilization time	0-99 hour 59 min
Temperature accuracy	0.1℃
Heat average	≤1°C
Type	Steam Vertical Autoclave
Control	Microprocessor
Display	Digital display
Steam generator	Built-in steam generator, stainless steel 304
Material	Fully stainless steel 304
Loading	2 pcs stainless steel baskets
Language	English
Voltage	110-220V. 50/60Hz
Chamber Volume	35L / Ø318× 450mm	50L / Ø340× 550mm	75L / Ø400× 600mm	100L / Ø440× 650mm	120L / Ø480×660mm	150L / Ø510×740mm
Product Size	450×450× 1010mm	510×470× 1130mm	560×560× 1130mm	540×560× 1250mm	600×640×1250mm	670×690× 1330mm
Package Size	570×570× 1150mm	590×590× 1280mm	650×650× 1280mm	680×680× 1370mm	730×730× 1370mm	760×760× 1370mm
G.W. /N.W.	72/56kg	88/68kg	100/80kg	110/85kg	125/100kg	140/110kg
Power	2.5kw	3.0kw	4.5kw	4.5kw	6.0kw	6.0kw
